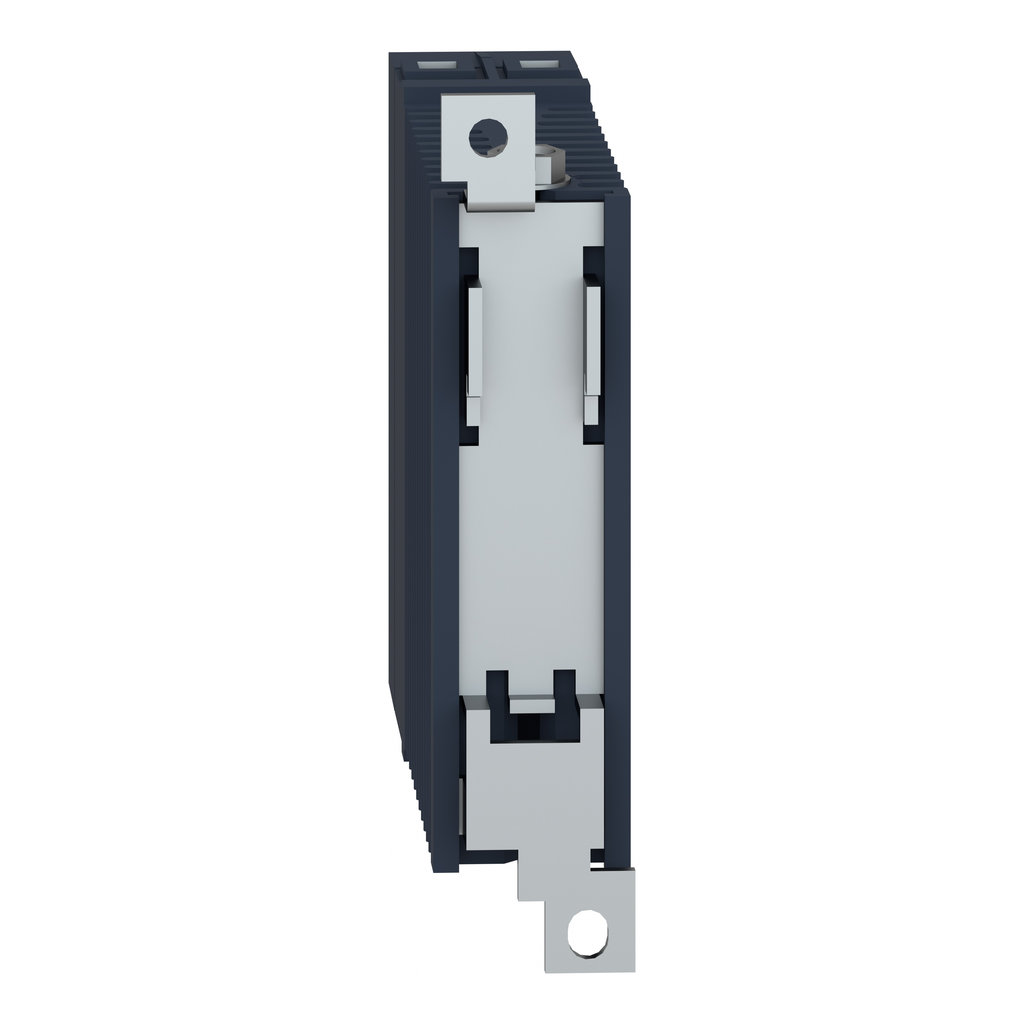

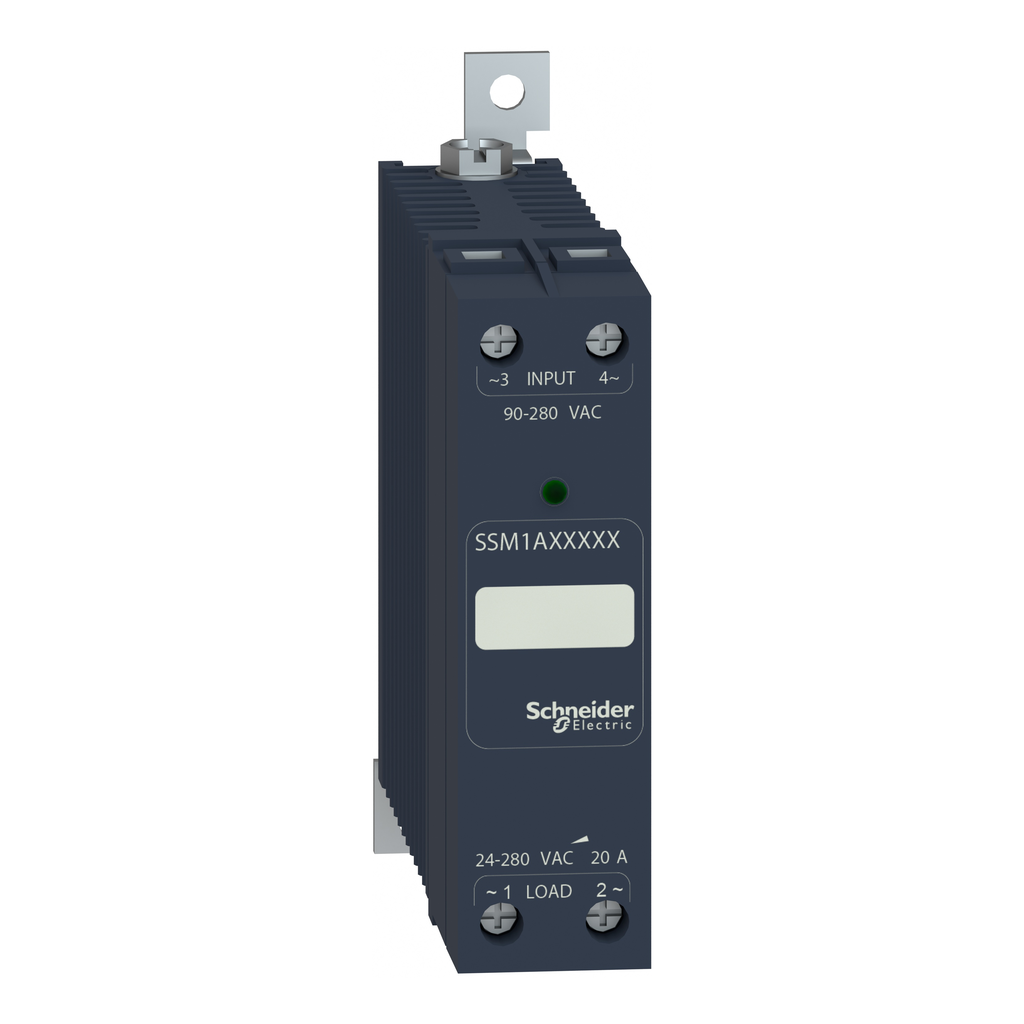

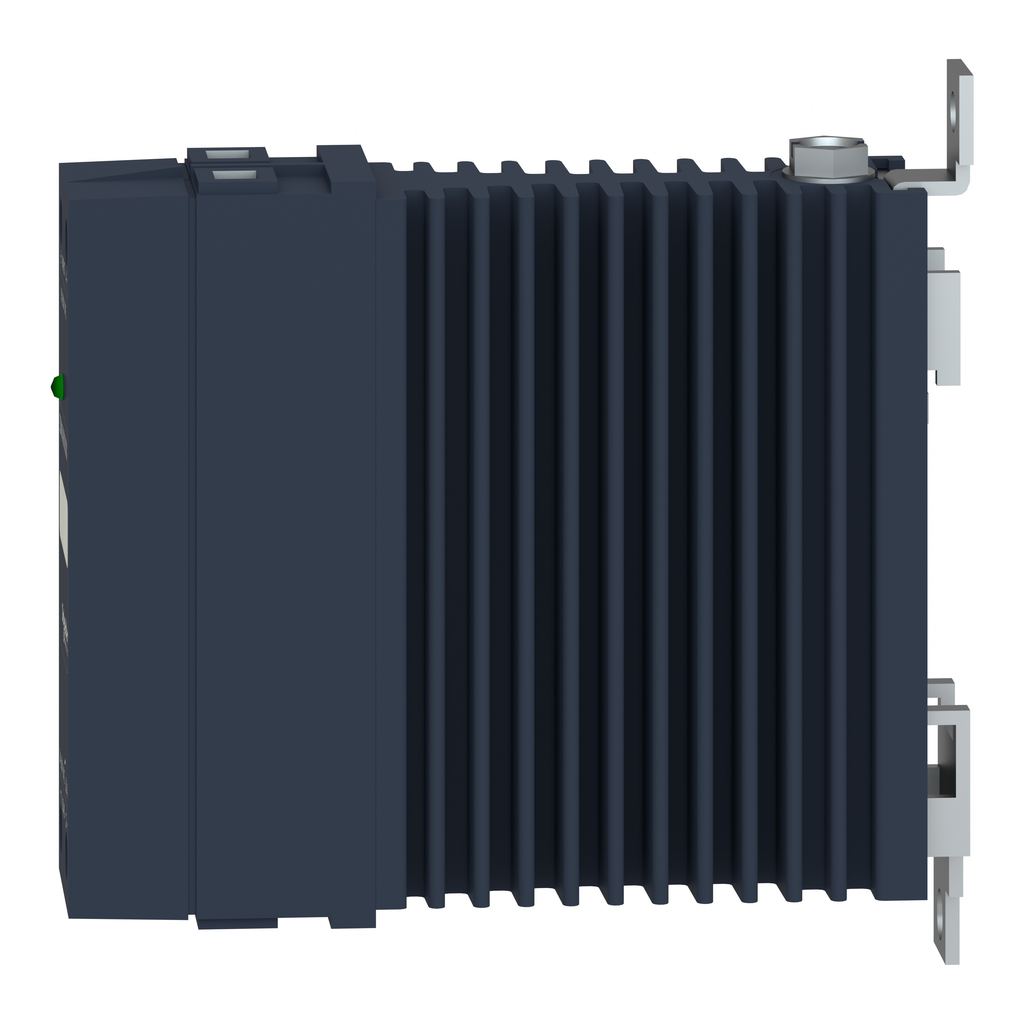

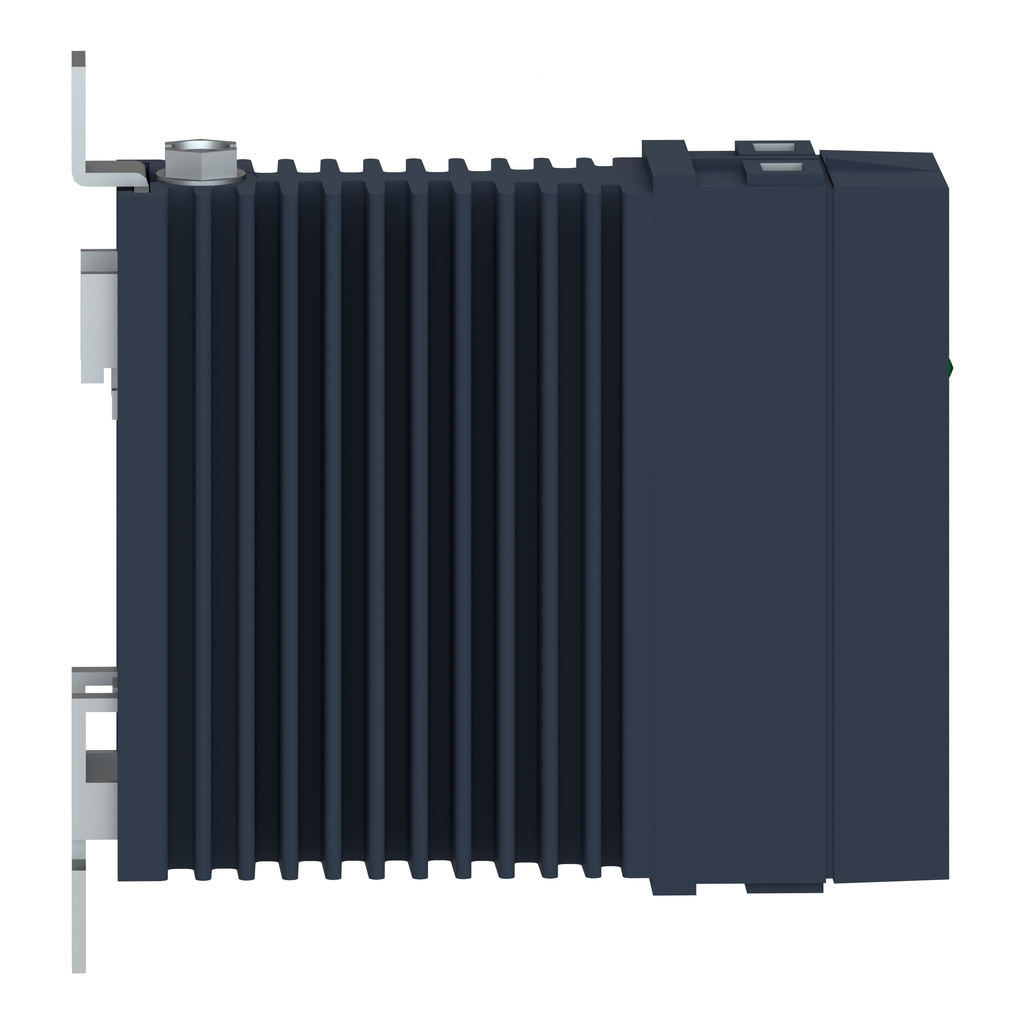

SQUARED SSM1A430BD Harmony, Solid s

Manufacturer: Square-D / Schneider | Catalog # SSM1A430BD | Cooper Electric Part # 1232903
$53.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
Solid State Relay

Technical Information

Amperage
30 Amp
Applications
ZELIO RELAY
Input Current
812 mA
IP Rating
IP20
Line Rated Current
30 A
Maximum Load Current
0.1530 A
Mounting Type
DIN-Rail
Net Weight
0.28 kg
Number of Phases
1 Phase
Operating Temperature
-40-80 Adegrees C
Output Voltage
48-660 V
Response Time
0.5 cycle (turn-on);0.5 cycle (turn-off)
Standard
CSA C22.2 No 14,IEC 60950-1,UL 508
Storage Temperature
-40-125 degrees C
TC Connection
SCREW TERMINALS 1 X 0.2...1 X 5.3 MMA, AWG 24...AWG 10) INPUT-SCREW TERMINALS 1 X 0.2...1 X 5.3 MMA, AWG 24...AWG 10) OUTPUT
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSM1

General Product Info

12-Digit UPC
785901292128
GTiN
03606485441627
Product UPC
78590129212
Weight
0.28 kg

Certifications and Compliance

CA Prop65 Warning
Yes
Certifications
CSA,EAC,UL
Country of Origin
Mexico
Additional Information
  • RoHS Compliant
  • Contact Configuration 1NO
  • Wire Size 24 to 10 AWG
  • Number of Phase 1-Phase
  • Number of Channels 1
  • Enclosure Rating IP20
Features
  • Zero Voltage Switching
  • RoHS/REACH Compliant
  • Mercury-Free
  • Green Premium Product
