Generac RXSW200A3 Automatic Smart Transfer Switch, 200A 120/240V, 1-Phase, Open Transition Service Rated, 22,000A Withstand Rating

Manufacturer: Generac Power Systems Inc | Catalog # RXSW200A3 | Cooper Electric Part # 1232140
$1,163.80/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

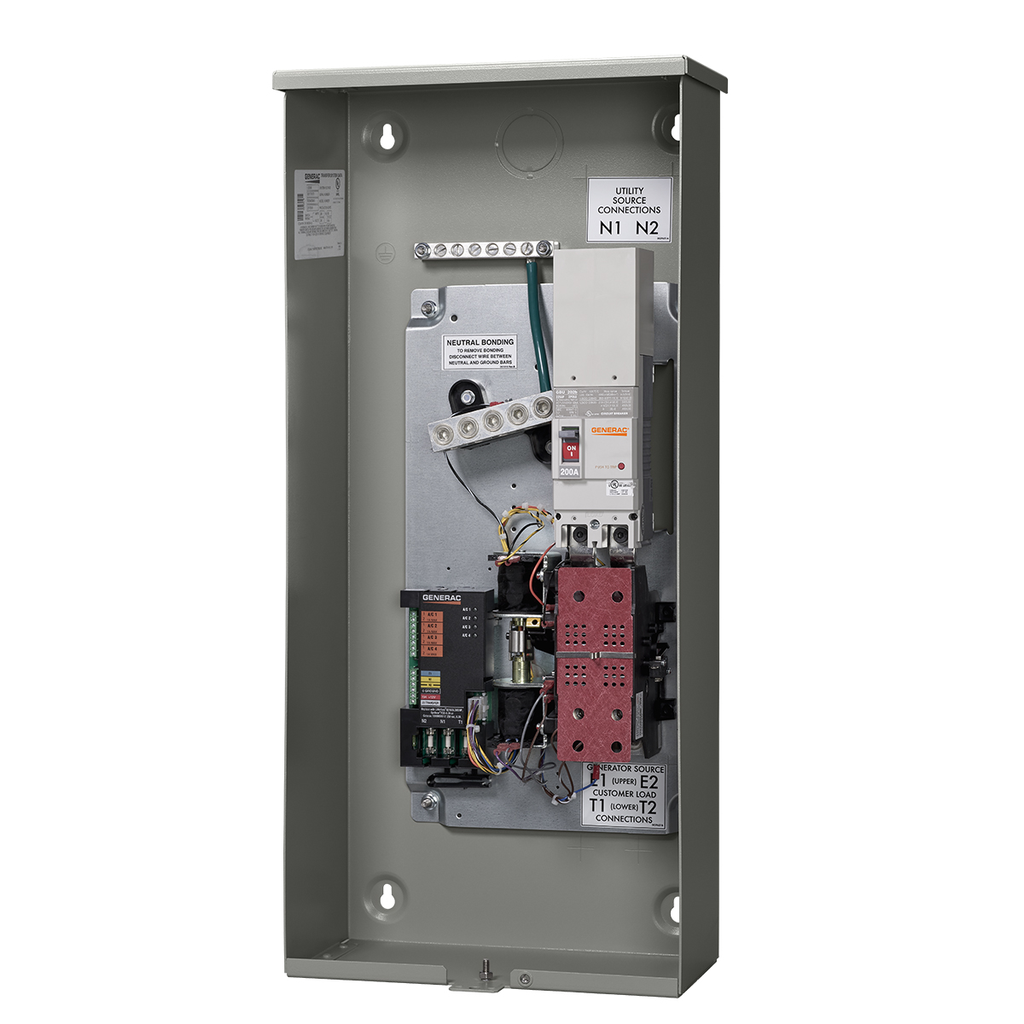

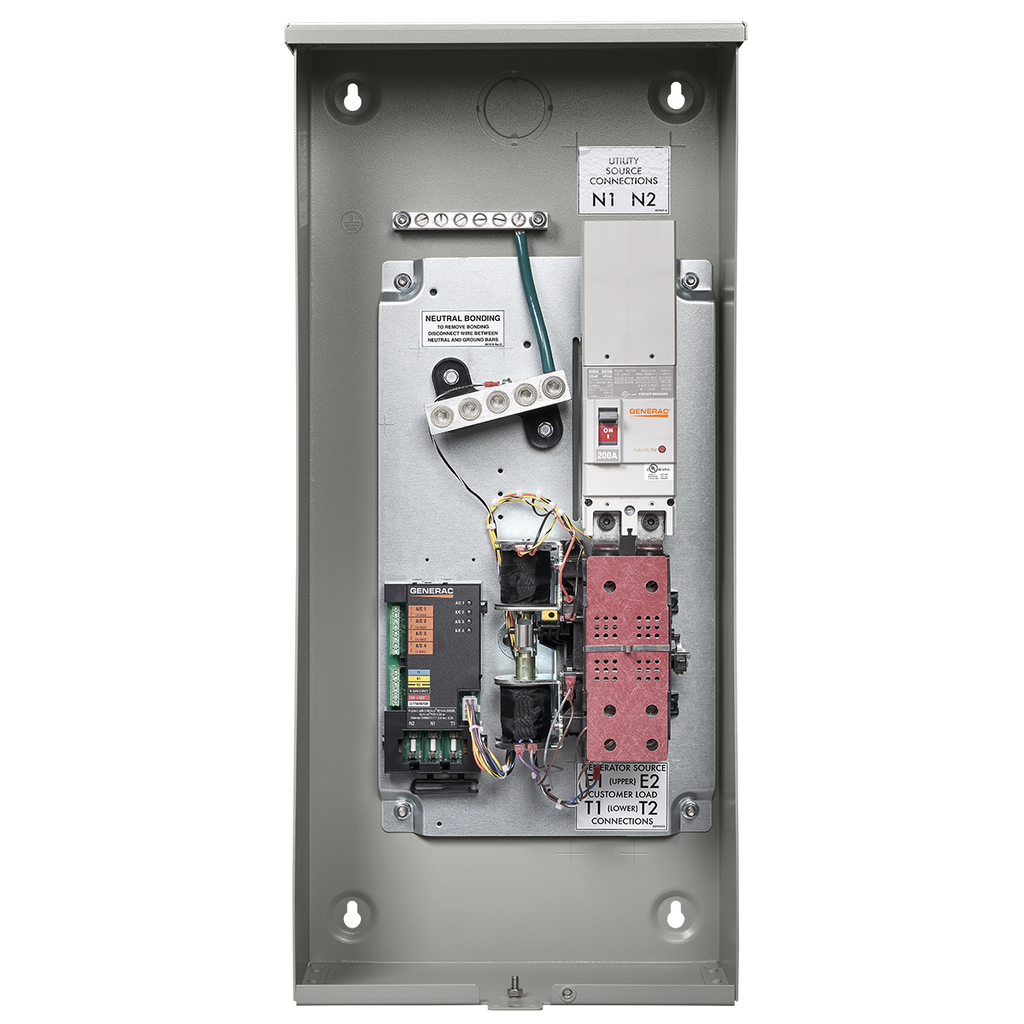

This 200 amp automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and, for that reason, codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism, utility service disconnect circuit breaker and a Smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.

Manufacturer Information

Brand
Generac Power Systems, Inc.

General Product Info

12-Digit UPC
696471069631
GTiN
00696471069631
Product UPC
69647106963
Weight
30 lb

Dimensions

Height
8 Inch
Warranty Length
5 yr
Width
15 in

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
USA
Features
  • Smart Switch 200 Amp SE 1Ø NEMA 3R
  • Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware
  • Designed for use with single-phase generators that utilize an Evolution or Nexus Controller
  • Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection
  • Simplify installation with a board that combines load management and transfer switch hardware
  • Decreases transfer switch complexity
  • Smaller fuses integrated into the control board
  • Gain even more flexibility when used in tandem with Smart Management Module
  • The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload)
  • Single-phase, 120/240-volt; UL listed transfer switch
