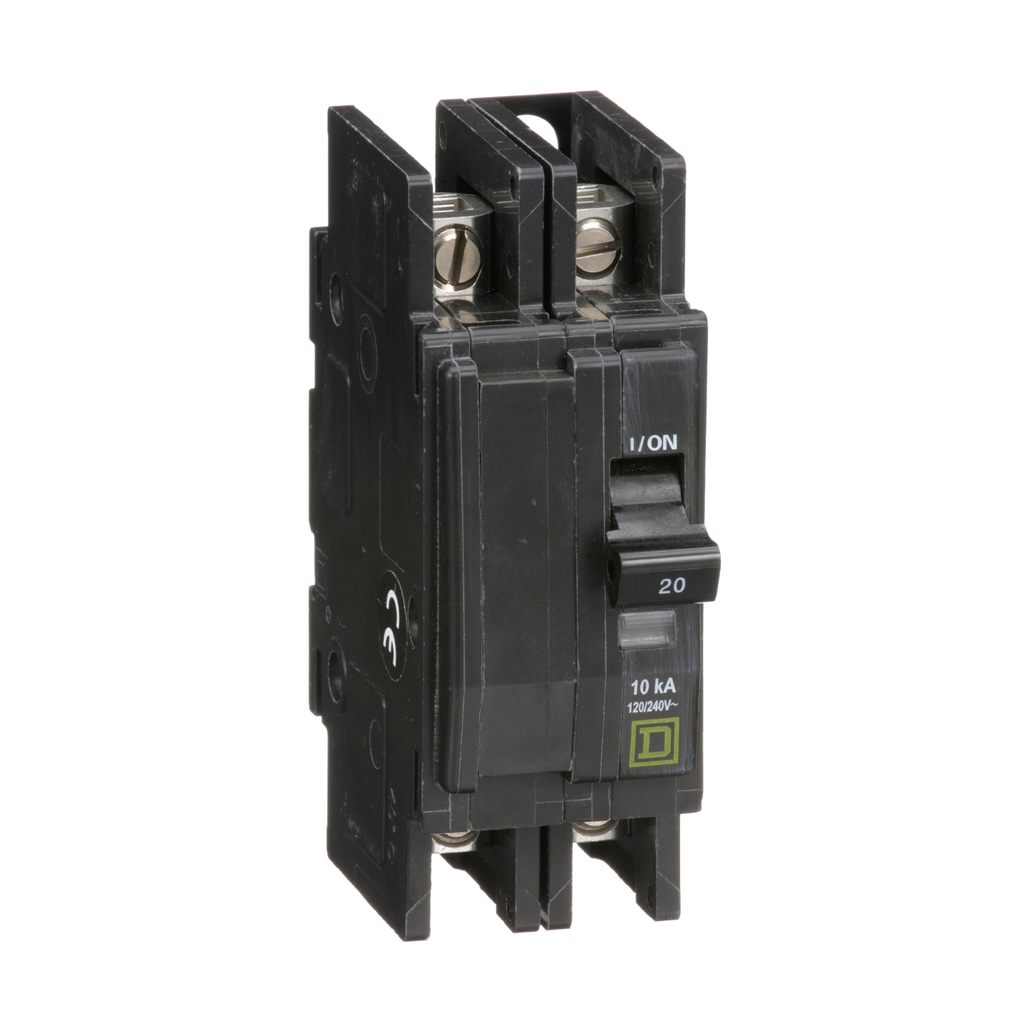

Square D QOU220B 2-Pole 20 Amp 120/240 Volt Thermal Magnetic/Common Trip Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # QOU220B | Cooper Electric Part # 1231875
$87.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. Distributes in a Bulk packing.

Technical Information

Amperage
20 Amp
Applications
HACR and Switching Duty rated
Circuit Breaker Type
Standard
Interrupt Rating
5, 10 kAIC
Line Rated Current
20 A
Mounting Type
Unit Mount
Number of Poles
2 Pole
Short Circuit Current
10 kA
TC Connection
AWG 14...AWG 2 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE
Type
Miniature circuit-breaker
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
QOU

General Product Info

12-Digit UPC
785901120995
GTiN
00785901120995
Product UPC
78590112099

Dimensions

Depth
2.95 Inch
Height
4.05 Inch
Length
2.95 Inch
Warranty Length
18 mth
Width
1.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Certifications
CSA,IEC,UL Listed
Country of Origin
USA
Compatible Products
  • QOUMF2B
  • QOU2PAFLA
  • HLO1
  • BCV
  • QOUECB
  • QOULFSC1B
  • QOU14100JBAF
