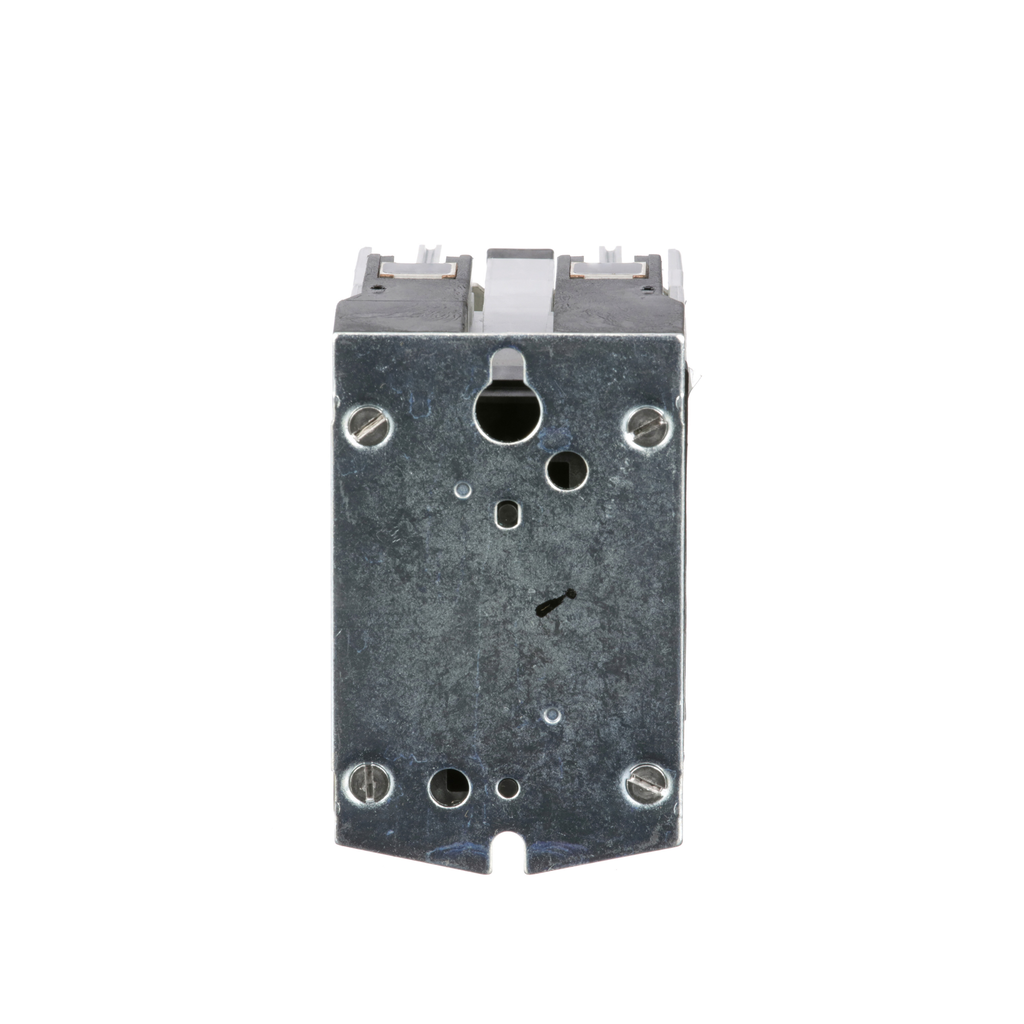

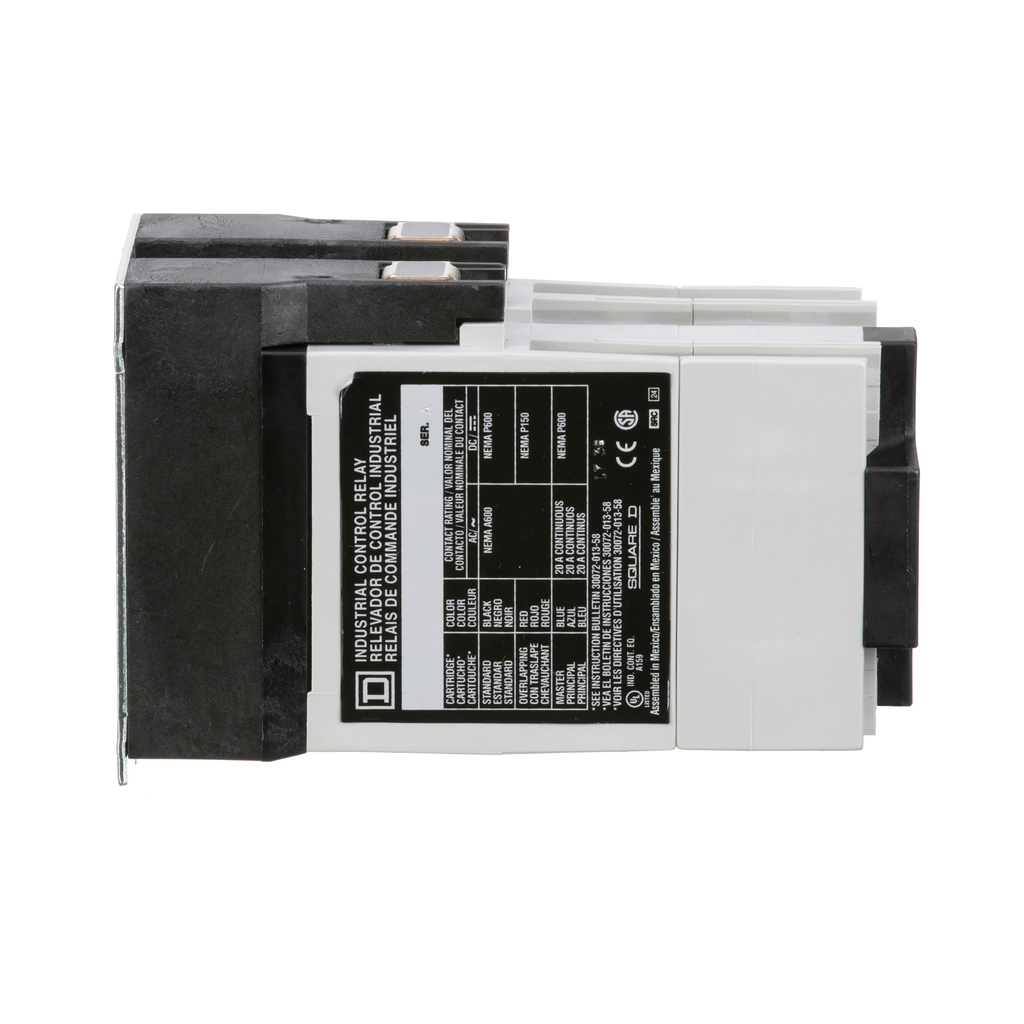

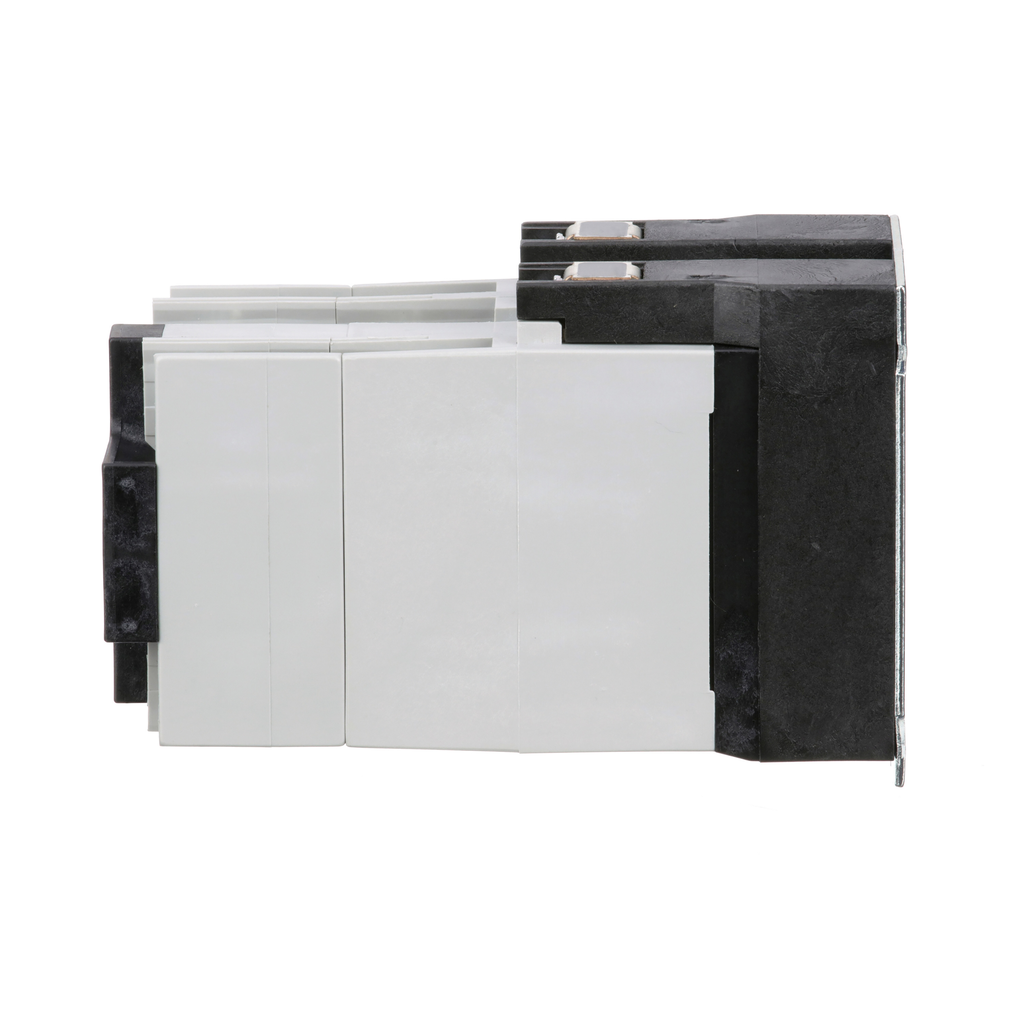

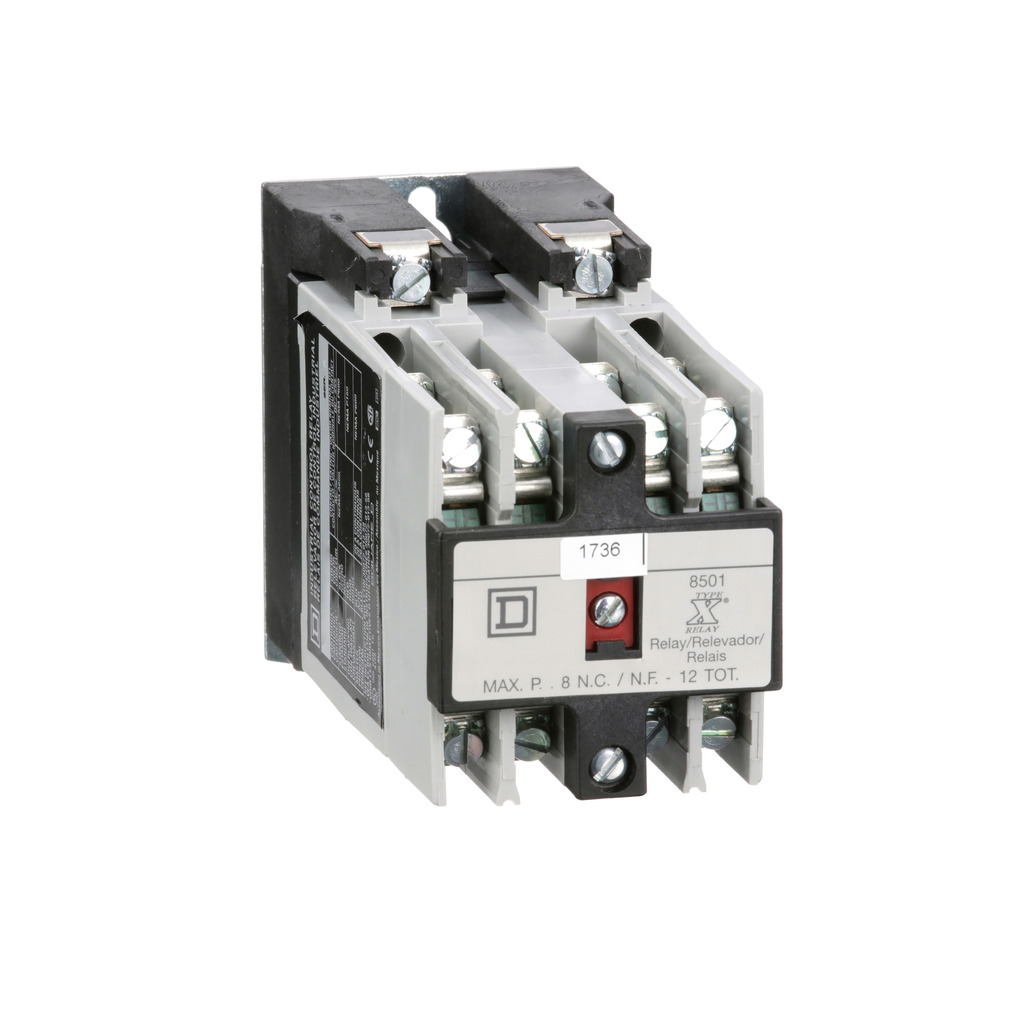

Square D 8501XO80V06 440/480 VAC 10/5 Amp 8-Pole 8NO Panel Mount AC Operated Control Relay

Manufacturer: Square-D / Schneider | Catalog # 8501XO80V06 | Cooper Electric Part # 1231548
$432.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
NEMA Control Relay, machine tool, 8 NO, 440/480 VAC 50/60 Hz coil

Technical Information

Amperage
5-10 Amp
Contact Configuration
8 NO 8 STANDARD CONTACT CARTRIDGES
Contact Rating
10 A AC-5 A DC
Current
10 Amp
Line Rated Current
10 A
Mounting Type
Panel
Number of Poles
8 Pole
Operating Temperature
-40-160 Adegrees F
Size
2.23 IN,3.5 IN,5.16 IN
TC Connection
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type
CONTROL,RELAY

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901836438
GTiN
00785901836438
Product UPC
78590183643

Dimensions

Depth
5.16 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
2.23 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 03,UL Listed File E78403 CCN NKCR
Country of Origin
Mexico
Compatible Products
  • 8501XC1
  • 8501XC2
  • 8501XB20
  • 8501XB40
  • 8501XA1
  • 8501XS1
  • 8501XM8
