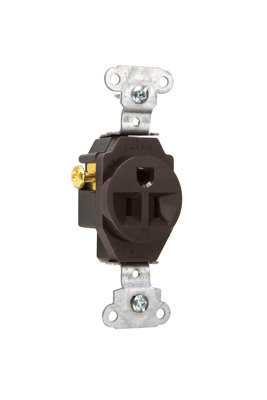

Product image for Pass & Seymour 5251 Heavy-Duty Spec Grade Single Receptacle Side, Wire 15A 125V - Brown
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5251 Heavy-Duty Spec Grade Single Receptacle Side, Wire 15A 125V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # 5251 | Cooper Electric Part # 12259
$5.06/ea
ea
Log in or register to view your price, purchase history, and more!
Residential Commercial Hospital
Duplex Decora Single
15A 20A
125v 250v
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
63 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
Product Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Side, Wire 15amp 125volt, Brown

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.08 W x 3.68 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Single Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007525106
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00785007525106
Product UPC
78500752510
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
