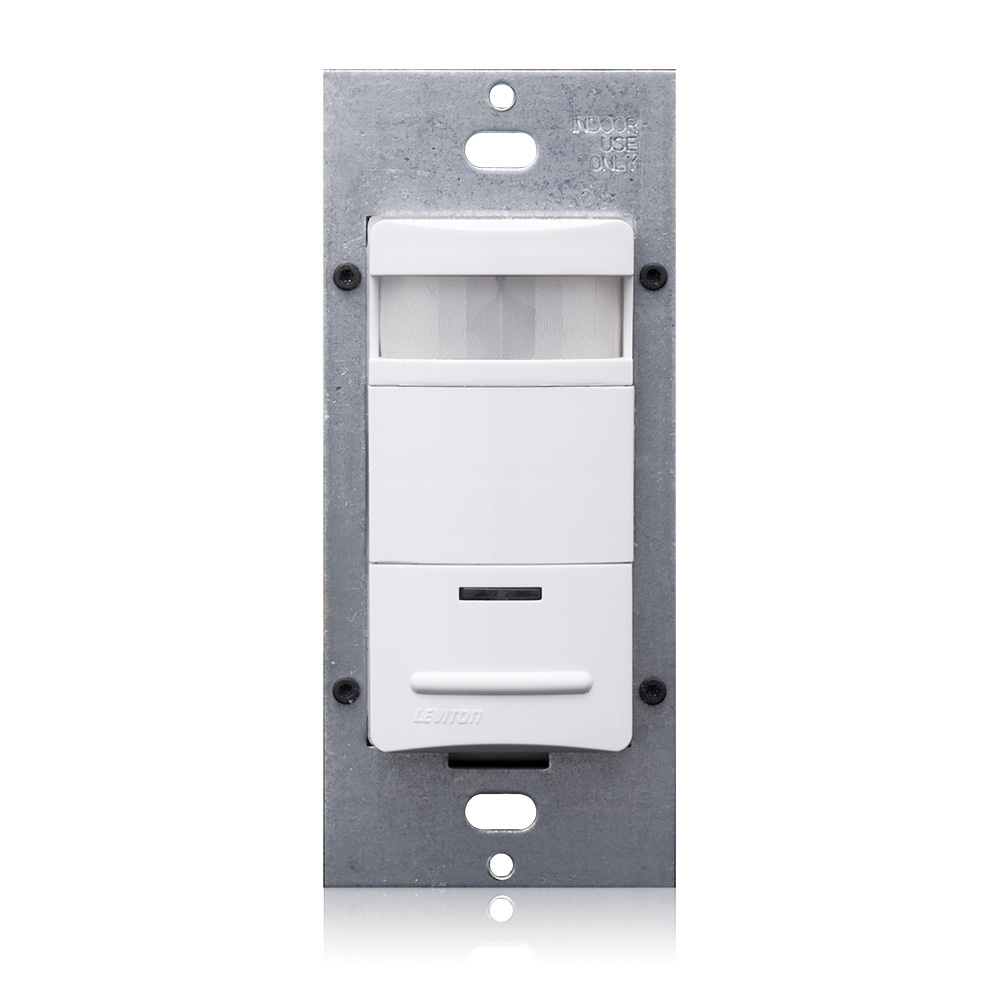

LEV ODS06-IDW WH PIR OC SENS WL SW

Manufacturer: Leviton Mfg Co | Catalog # ODS06-IDW | Cooper Electric Part # 1225071
$87.68/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
9 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet
Passive Infrared wallbox occupancy sensor, Single Relay, photocell controlled, Low profile, 180 degree field of view, 1600 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/277VAC, 60Hz, AutoON/ManualON selectable, CEC Title 24 Compliant, UL Listed, RoHS Compliant, Color: White

Technical Information

Applications
For Small Offices, Lounges, Conference Rooms and Classrooms
Coverage
1600 sq-ft
Frequency
50 Hz
Grade
Commercial
Lens Type
LED
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
50 degrees C
Response Time
30 sec - 30 min
Sensor Type
Passive Infrared

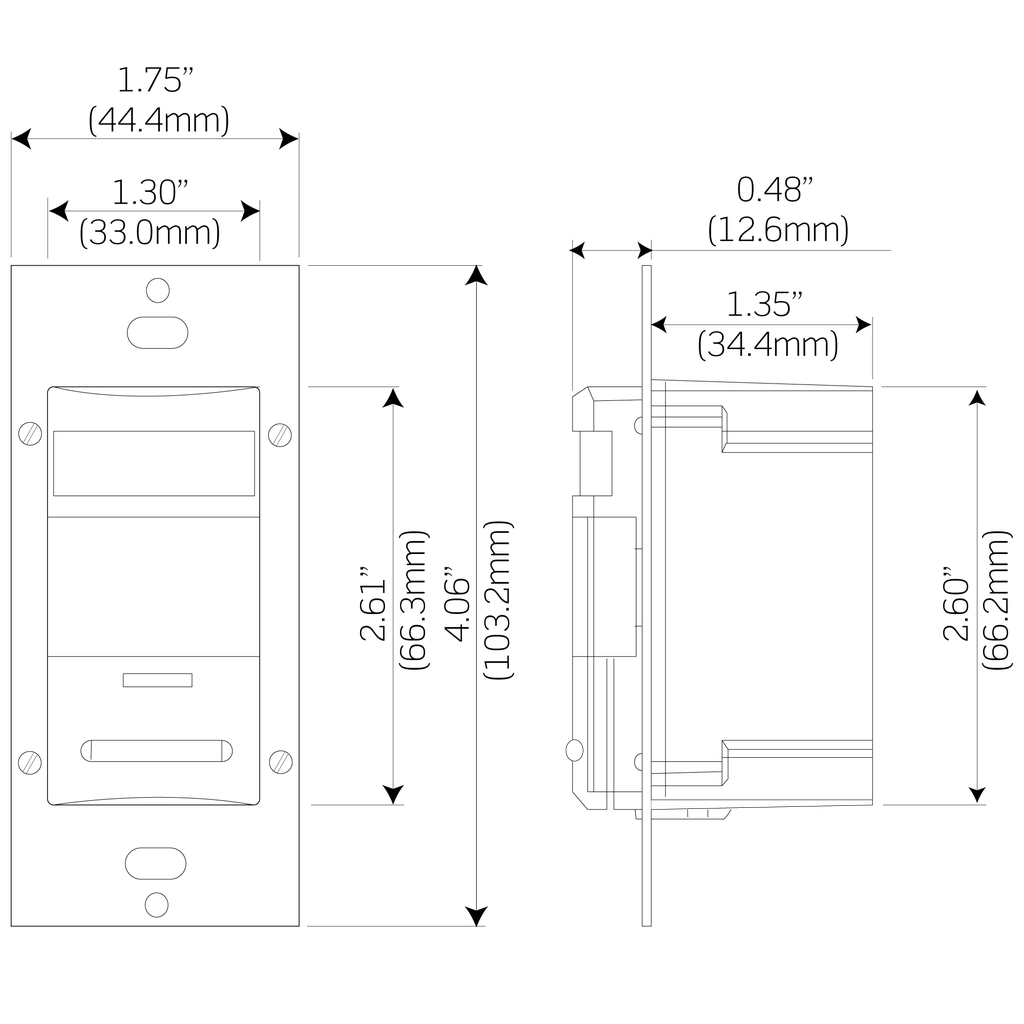

Size
66.2 mm
Standard
CSA,E2186,UL
Switch Type
Single-Pole
Temperature Rating
32 - 122 degrees F
Type
Single Relay, Low Profile, Photocell Controlled
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477705278
Color
White
GTiN
00078477705278
Product UPC
07847770527

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units.
  • Low-profile design eliminates obtrusive appearance. Elegant Decora wallplates complement any interior for sleek aesthetics; uses Decora wallplates and coordinates with Levitons popular line of Decora wiring devices.

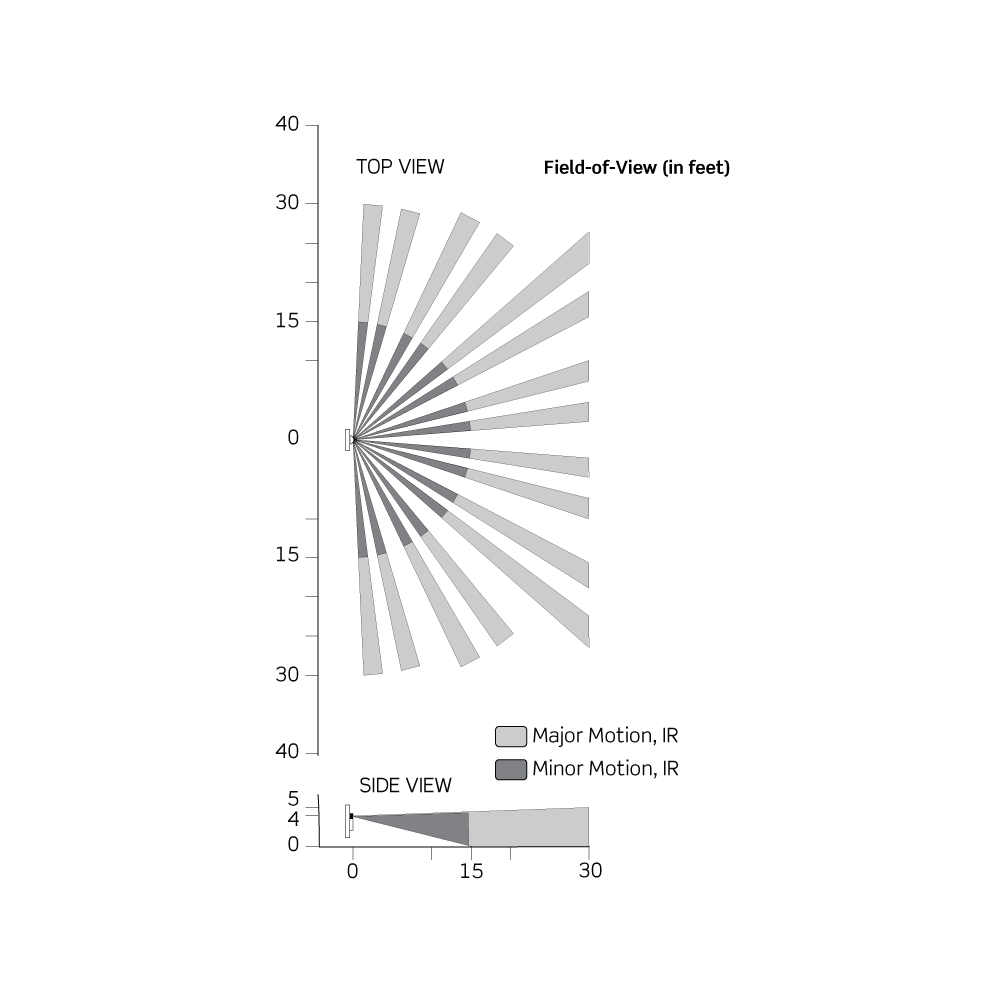

  • 180° field-of-view provides approximately 1600 square feet (149 square meters) of coverage suitable for small offices, conference rooms, lounges and a variety of commercial areas.
  • Convenient pushbutton provides manual-ON/OFF light switching at any time.
  • Two dual element PIR sensors used to widen detection range.
  • Vandal resistant PIR lens.

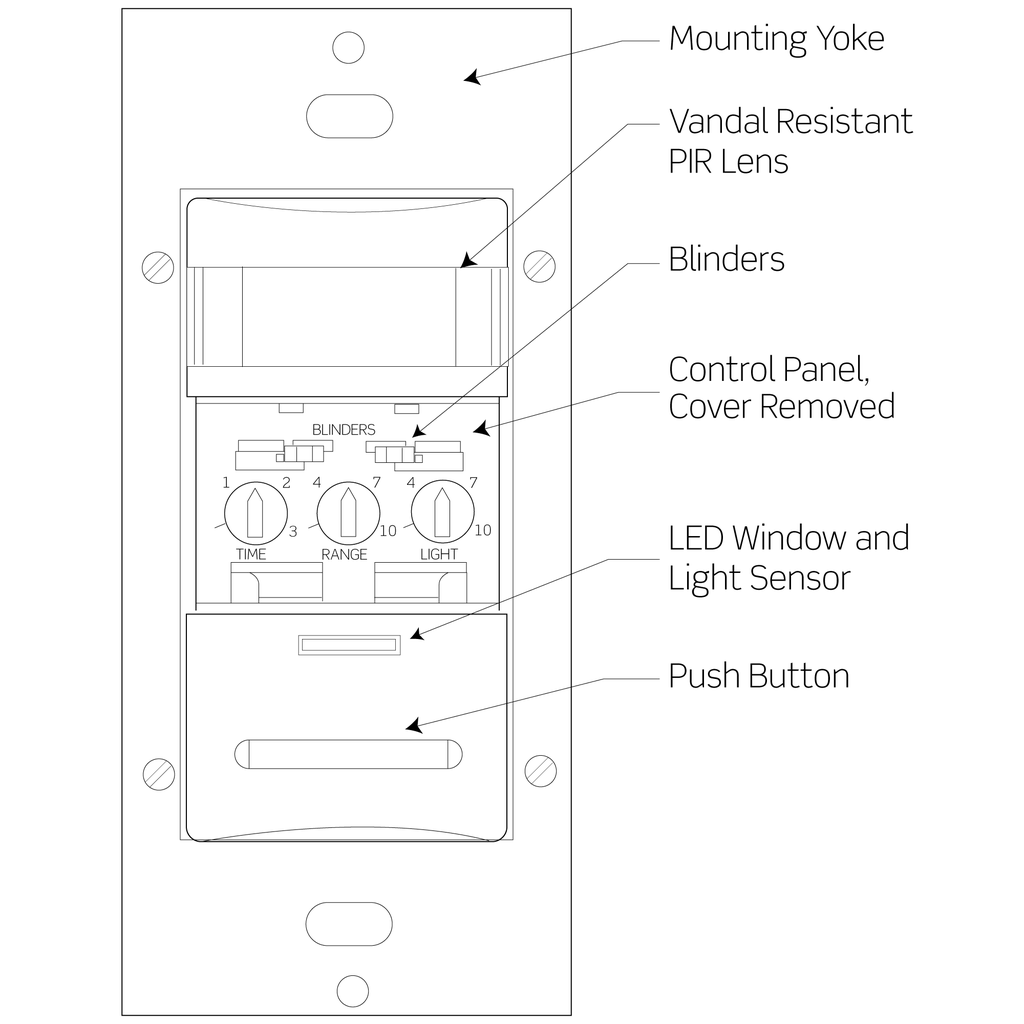

  • Horizontal field-of-view may be adjusted between 180° and 180° of arc by using integral blinders located on either side of the lens. No masking tape required.
  • Manual-ON/Auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CA Title 24 energy savings.
  • To comply with CA Title 24, red LED indicator light flashes when sensor detects motion to verify detection is active.
  • Time Delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes,
  • 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings.
  • Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON.
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied.
  • One unit can be used for 120-230-277V lighting. Compatible with LED drivers and electronic and magnetic ballasts.

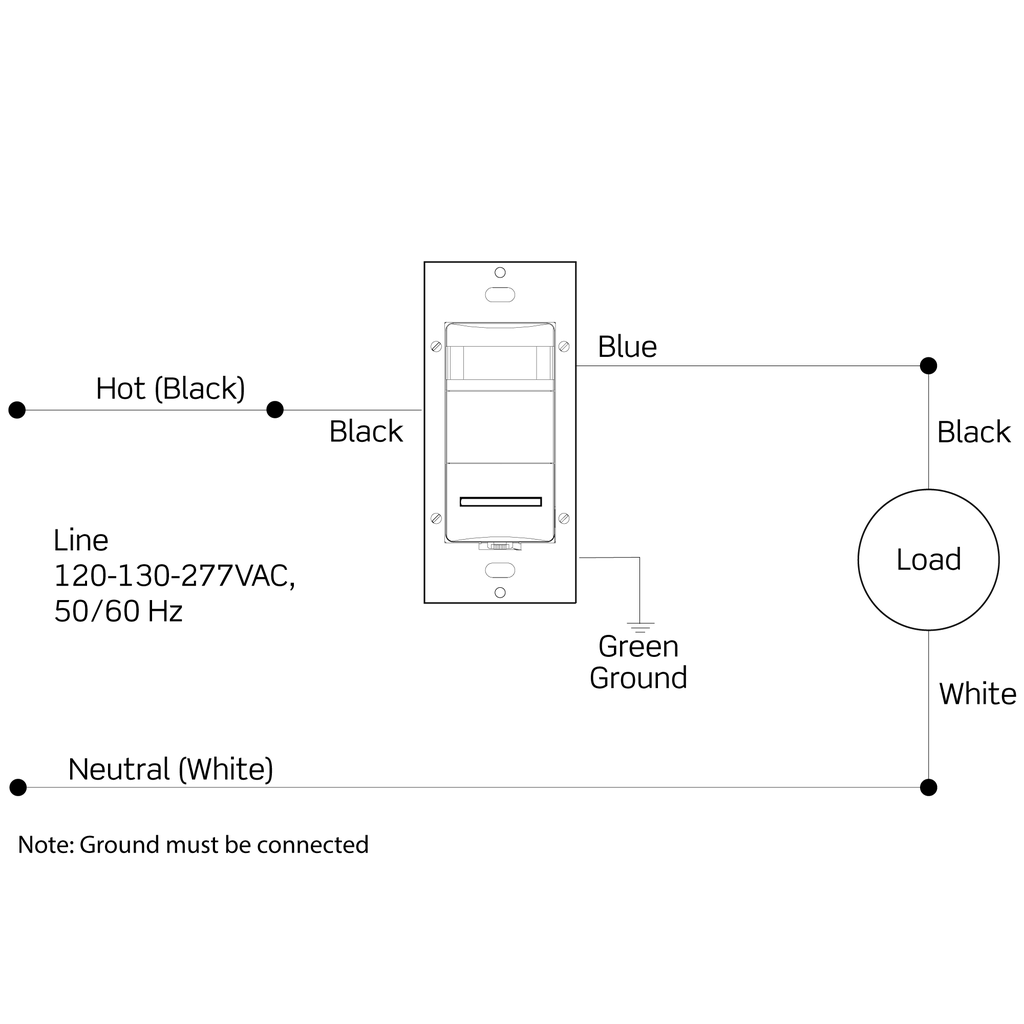

  • No neutral design is optimal for retrofit applications
  • The Decora ODS06 Passive Infrared (PIR) Wall Switch Occupancy Sensor is specifically designed to meet the commercial needs of LED load requirements. Smaller loads such as LEDs can produce high inrush currents that can severely shorten the lifespan of low amperage devices. To resolve this issue, the ODS06 features industry exclusive High Inrush Stability (H.I.S.) circuitry to handle these loads and offer unmatched durability and performance. Do you have a question about an occupancy sensor or vacancy sensor?
