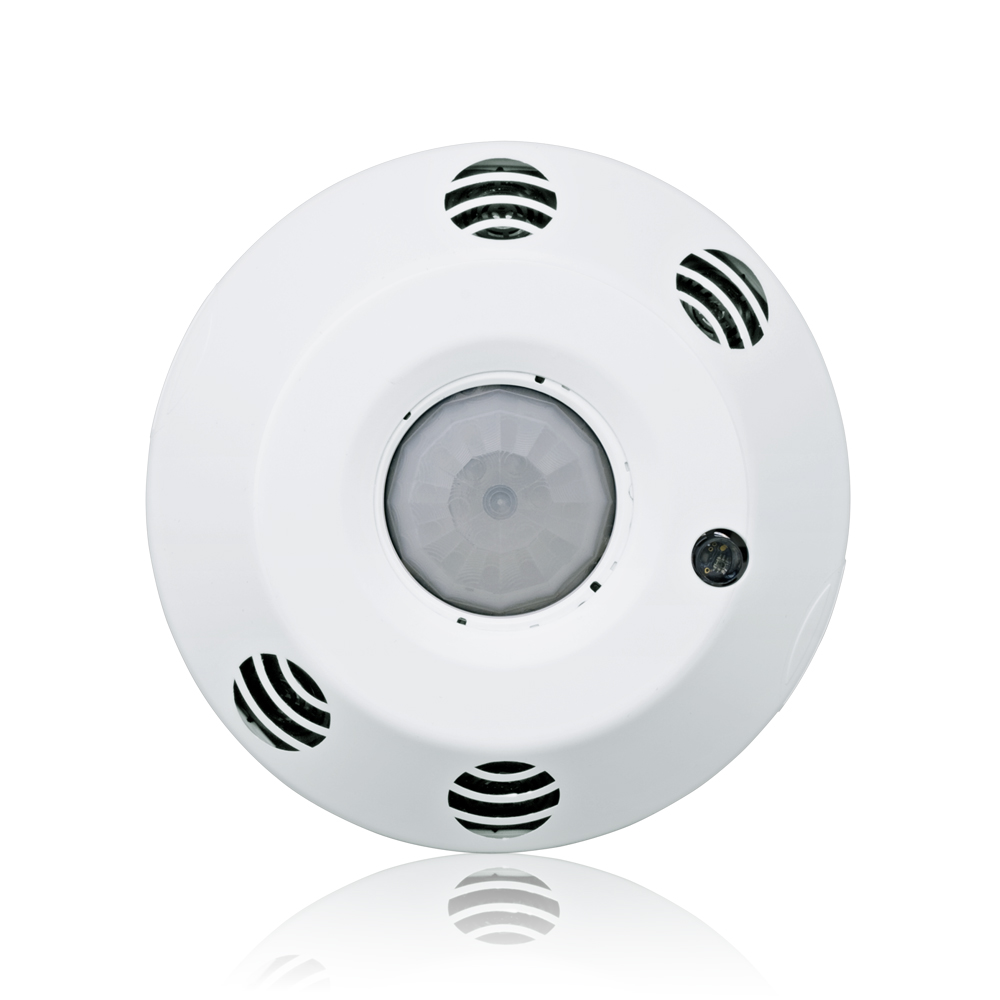

LEV O6C20-MDW WH PROV 2ZONE CEILMT

Manufacturer: Leviton Mfg Co | Catalog # O6C20-MDW | Cooper Electric Part # 1224607
$453.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Room Controller, Indoor, Line Voltage, Low Profile, 2 Zone, Ceiling Mount, Multi-Technology, 2000 sq ft, occupancy sensor lighting control, (2) 0-10V DC Sinking Control Signal, for dimming ballast or LED Driver, 2 Relay, 120-277V AC.

Technical Information

Applications
For Residential and Commercial use
Control Type
0 - 10 V
Frequency
50 Hz
Grade
Commercial
Lamp Type
LED
Mounting Type
Ceiling
Operating Temperature
0 degrees
Size
2.39 in
Switch Type
Push Button
Type
2-Zone, 2-Relay
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Provolt

General Product Info

12-Digit UPC
078477750018
Color
White
Finish
Matte
GTiN
60078477750010
Product Type
Room Controller
Product UPC
07847775001

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features

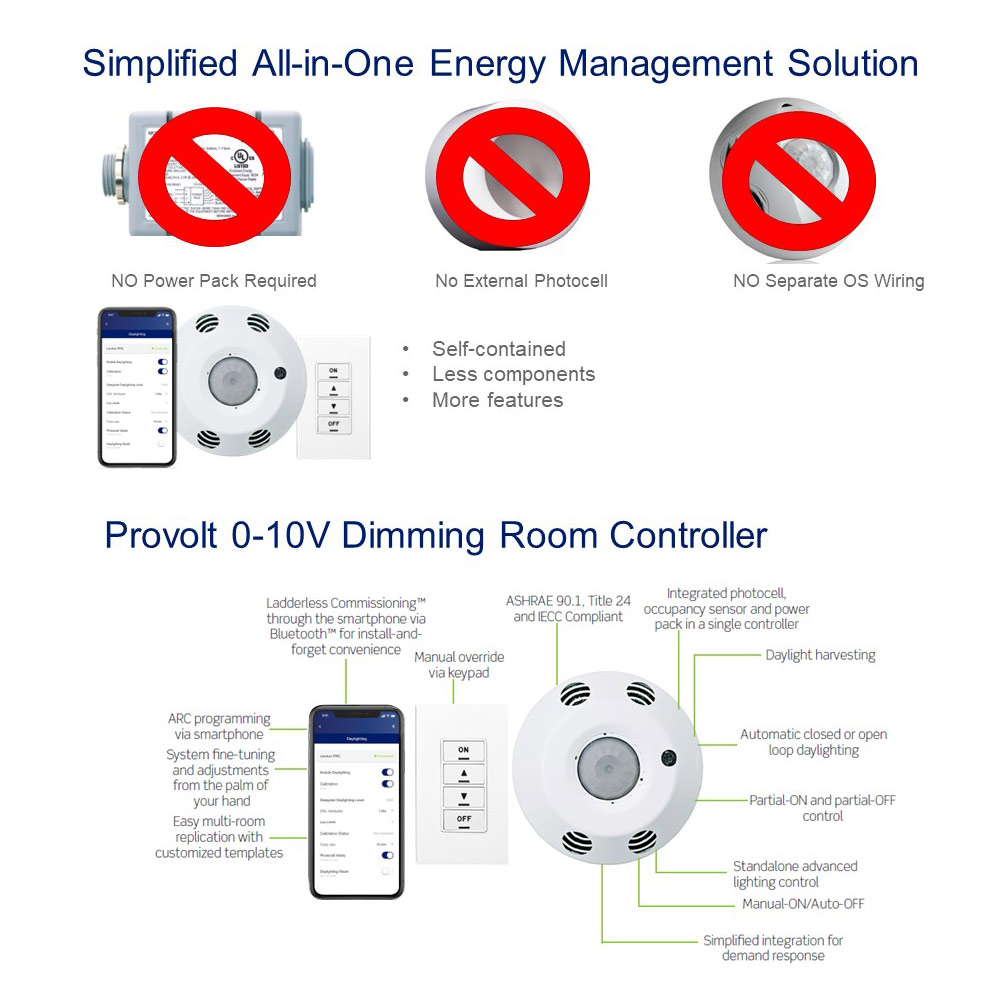

  • Simplified daylight harvesting with 1- and 2-zone control for full range 0-10V dimming
  • Set demand response dimming capabilities and auto-ON, auto-OFF, partial-ON and partial-OFF with the Provolt Bluetooth Mobile App
  • Code-compliant features -Auto-ON/Auto-OFF -Partial-ON (lights automatically turn ON to 50% when a space is occupied, manual-ON control for above 50%) -Partial-OFF (lights will dim to 30% when is a space is unoccupied
  • Basic controls include ON, OFF, dim up and dim down using a 4-button keypads
  • Closed loop photocell detects total measurement of both natural and artificial light in the space
  • 450 and 2,000 square feet field-of-view units available
  • The PRC comes with 180° and 360° photocells for closed loop dimming applications
  • Uses ultrasonic (Doppler shift) motion detection giving maximum sensitivity and PIR motion detection and preventing false triggers
  • Works in conjunction with 1-, 2- and 4-button keypads (PLVSW) for individual manual zone control
  • Ladderless Commissioning™ and programming through Bluetooth-enabled smart devices for install-and-forget convenience
  • AutoCal featureautomatic photocell target level calibration
  • Meets energy code requirements including daylight harvesting and demand response
