Applications
MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
120 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
10 A 60 AC SIGNALLING CIRCUIT-25 A 60 AC POWER CIRCUIT
Control Circuit Voltage
120 V
Impedance
2.5 MOhm At 50 Hz - Ith 25 A Power Circuit
Operating Cycles
3600 Cyc/h At <= 140 F (60 C)
Operating Temperature
-20-60 Adegrees C,-40-70 Adegrees C AT UC
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
TC Connection
POWER CIRCUIT FASTON TERMINALS 2 -CONTROL CIRCUIT FASTON TERMINALS 1
Type

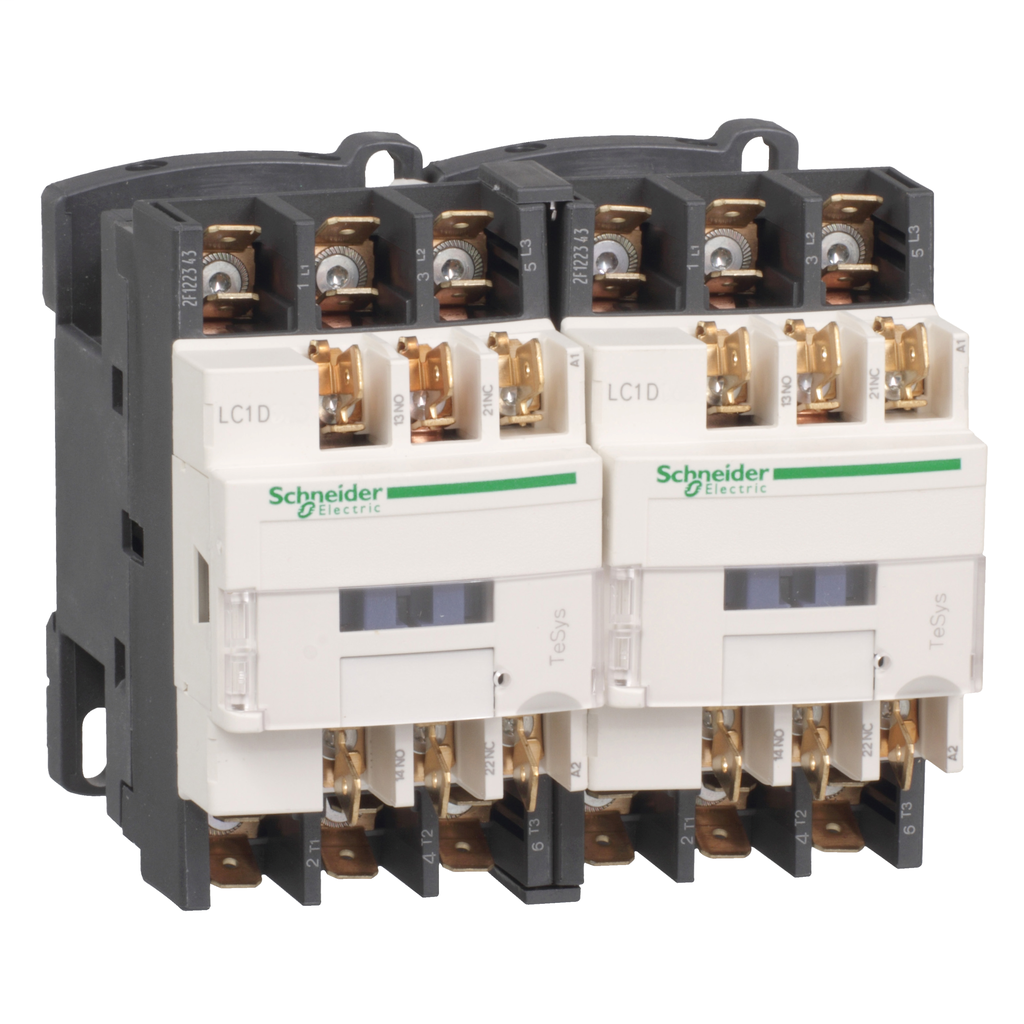

MECHANICAL,REVERSING CONTACTOR
Wattage
0.2 Watt AC-3 - 1.56 Watt AC-1
CA Prop65 Warning
This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS,RINA,UL
