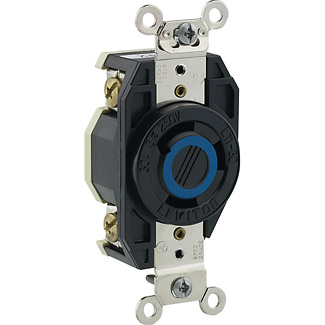

Product image for LEV 2670 EB REC LOCK 3PO 3WI 3PH L1
Image thumbnail 0
Image thumbnail 1
Email

LEV 2670 EB REC LOCK 3PO 3WI 3PH L1

Manufacturer: Leviton Mfg Co | Catalog # 2670 | Cooper Electric Part # 12213
$99.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 250 Volt 3-Phase, NEMA L11-30R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK

Technical Information

Amperage
30 Amp
Applications
Industrial
Base Material
Valox,Valox
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grade
Industrial
Grounding
Non-Grounding
Horsepower
2 hp
Material
PBT
Mounting Type
Box, Flush
NEMA
L11-30R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
UL
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
250 Volt
Wire Count
3
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477045886
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTiN
00078477045886
Product UPC
07847704588

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Certifications
UL
Country of Origin
Mexico
CSA
C22.2 No. 42
NEMA
  • L11-30R
