Square D SSM3A325F7 SOLID STATE RELAY - DIN RAIL MOUNT

Manufacturer: Square-D / Schneider | Catalog # SSM3A325F7 | Cooper Electric Part # 1220034
$154.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1

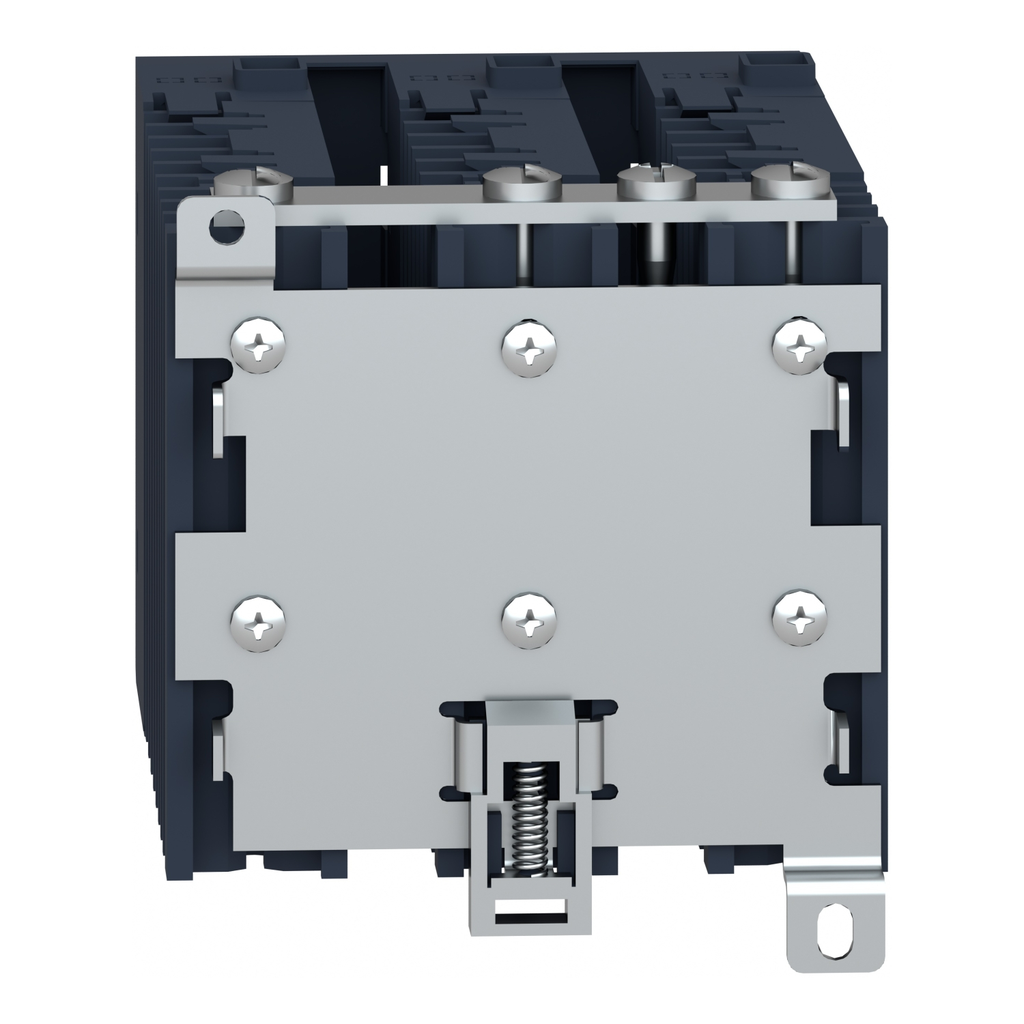

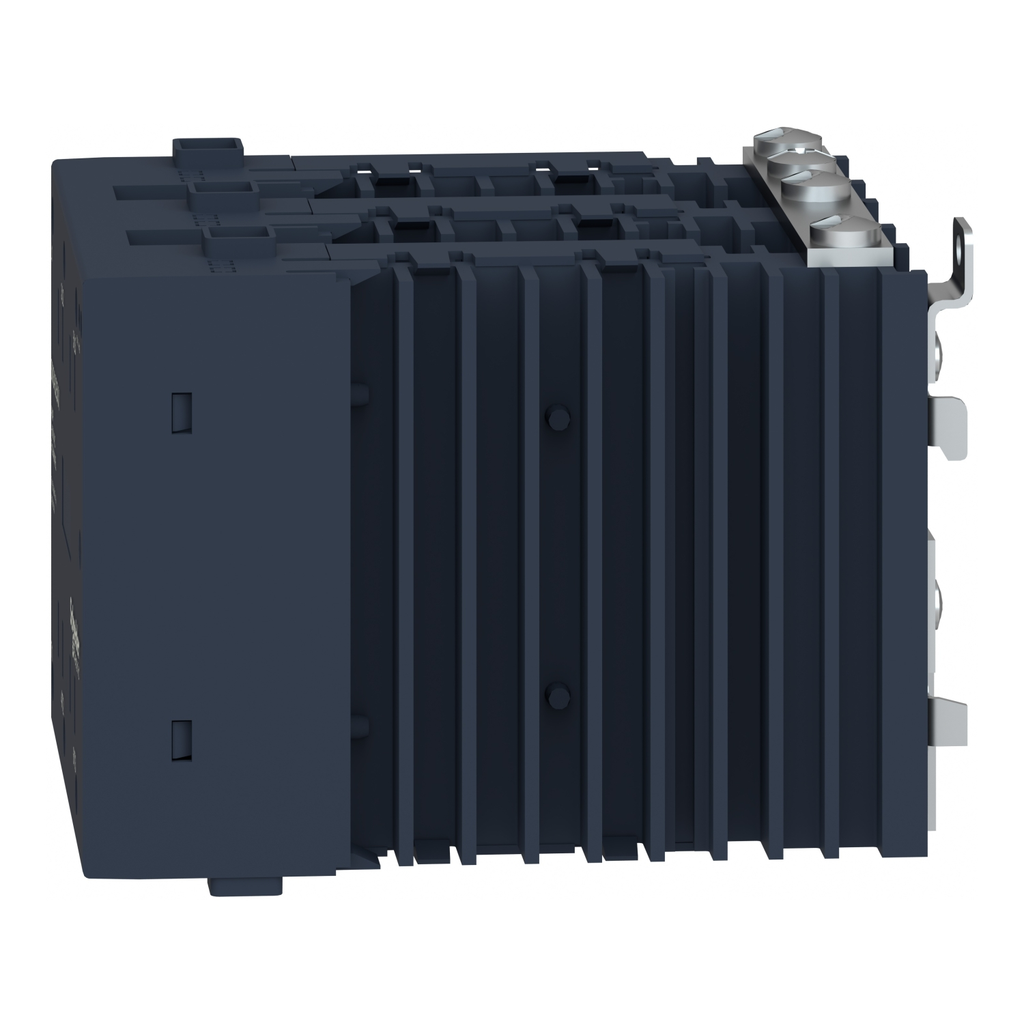

This static relay has a built-in heatsink for limited derating while limiting occupied space in panel It also has a visual indicator showing the status of its input Its rated current is 25 A, is controlled with a 90 to 140 V AC circuit, has a rated load voltage of 48 to 600 V AC output. It mounts on symetrical DIN rails and comes with a secure mounting latch

Technical Information

Amperage
25 Amp
Applications
1 HP 40 AC 240 V AC-2 HP 40 AC 380 V AC-3 HP 40 AC 480 V AC
Dielectric Strength
4 kV
Input Current
1519 mA
Line Rated Current
25 A
Maximum Load Current
0.125 A
Net Weight
0.74 kg
Number of Channels
3
Number of Phases
3 Phase
Operating Temperature
-20-80 Adegrees C
Output Voltage
48-600 V
Power Factor
0.5 (with maximum load)
Response Time
30 ms
Standard
CSA C22.2 No 14,IEC 60950-1,UL 508
Storage Temperature
-40-100 degrees C
TC Connection
SCREW TERMINALS 0.2...1.3 MMA, AWG 24...AWG 16) INPUT-SCREW TERMINALS 1.3...5.3 MMA, AWG 16...AWG 10) OUTPUT
Type
Solid state relay up to 30 A

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSM3

General Product Info

12-Digit UPC
606485441699
GTiN
03606485441696
Product UPC
78590147357
Weight
0.74 kg

Dimensions

Width
90 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
