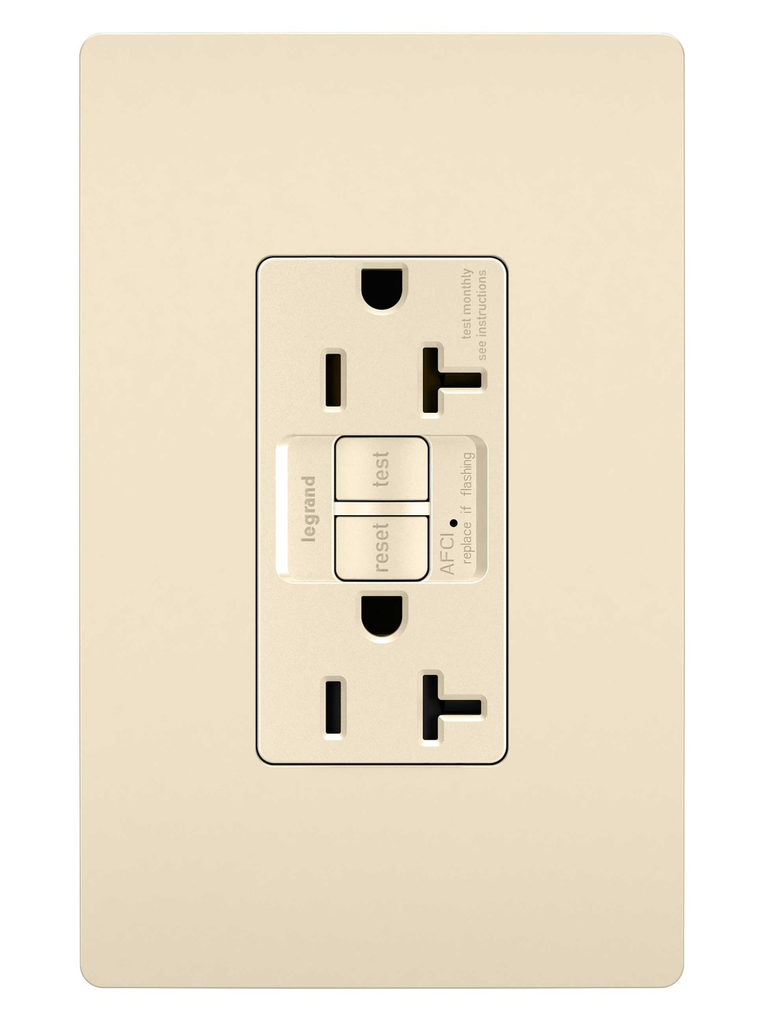

Product image for Pass & Seymour AF202TRLA 20A 125V Tamper-Resistant Arc-Fault Circuit Interrupter - Light Almond
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour AF202TRLA 20A 125V Tamper-Resistant Arc-Fault Circuit Interrupter - Light Almond

Manufacturer: Pass & Seymour / Legrand | Catalog # AF202TRLA | Cooper Electric Part # 1219315
$53.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
20A 125V Tamper-Resistant Arc-Fault Circuit Interrupter, Light Almond

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
For Commercial, Residential Applications
Connection Type
Back and Side Wired
Frequency
60 Hz
Interrupt Rating
4.0 A
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
2 Pole
Outlet Type
AFCI,Indoor,Residential,Tamper-Resistant
TC Connection
Back and side wire
Trip Range
4 mA
Trip Type
.025 Second Nominal
Type
Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007127898
Color
Almond
GTiN
00785007127898
Product UPC
78500712789

Dimensions

Depth
1.36 Inch
Height
4.2 Inch
Width
1.25 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
China
Features
  • Protects against fire caused by arc-fault occurrences. Unlike breaker alternatives, AFCI outlets make it easier to fix trips with a convenient reset button on the outlet.\
  • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.\
  • For more information on AFCI, visit: www.afcisafetyreceptacles.org\
  • Extends protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.\
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.\
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.\
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.\
Certifications
  • UL Listed
  • CSA Listed
