SQD NSYCVF300M115PF ClimaSys forced

Manufacturer: Square-D / Schneider | Catalog # NSYCVF300M115PF | Cooper Electric Part # 1218980
$245.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

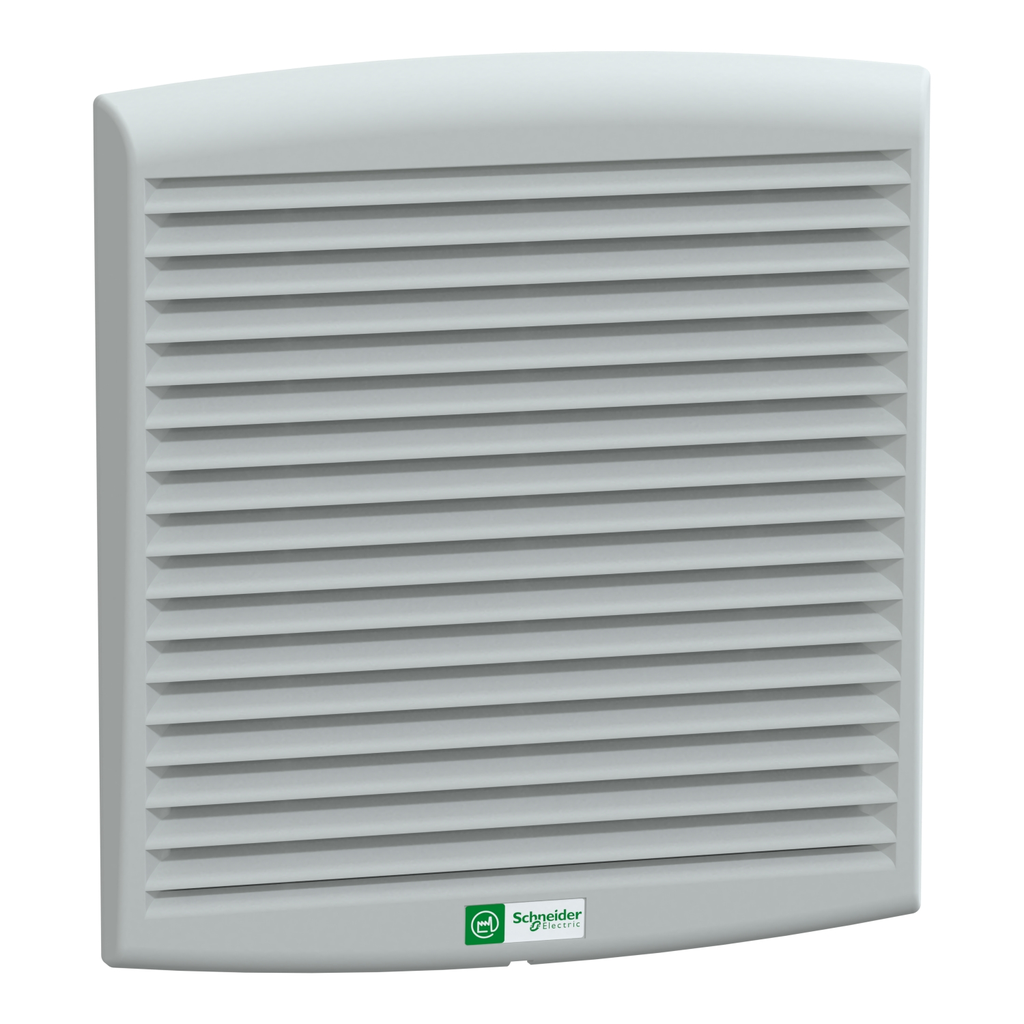

ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 36 W 50 Hz, 36 W 60 Hz. Free flow rate with standard filter of 300 m3/h at 50 Hz and 300 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Technical Information

Amperage
0.35 Amp
Applications
FORCED VENTILATION 300 M/H
Input Voltage
115 V
Line Rated Current
0.32-0.32 A
Material
Thermoplastic
Net Weight
1.3 kg
Operating Temperature
-10-70 degrees C
Range
ClimaSys
Size
EXTERNAL 116 MM,EXTERNAL 248 MM,EXTERNAL 268 MM
Storage Temperature
-40-70 degrees C
Type
Fan

Manufacturer Information

Brand
Schneider Electric
Sub Brand
CLIMASYS CV

General Product Info

12-Digit UPC
606480151296
Color
Outlet Grille Gray RAL 7035)
GTiN
03606480151293
Product UPC
78590169850
Weight
1.3 kg

Dimensions

Depth
116 mm
Height
268 mm
Warranty Length
18 mth
Width
248 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
