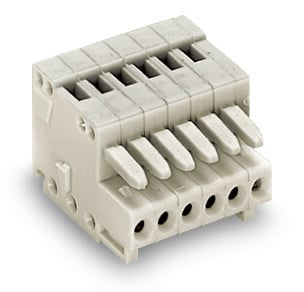

Product image for WAG 733-104 F-CONN W/C-C V0 2.5MM
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

WAG 733-104 F-CONN W/C-C V0 2.5MM

Manufacturer: Wago | Catalog # 733-104 | Cooper Electric Part # 1217460
$6.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

Technical Information

Actuator
Operating Tool
Conductor Size
20 AWG
Connection Type
For Conductor
Contact Material
Copper Alloy
Contact Type
Tin
Current
4 Amp
Flamability Class
V0
Insulation Material
Polyamide
Number of Connections
1,4
Strip Length
0.24 in
Voltage
100 Volt

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918064198
Color
Gray
Product UPC
04491806419
Weight
1.807 g

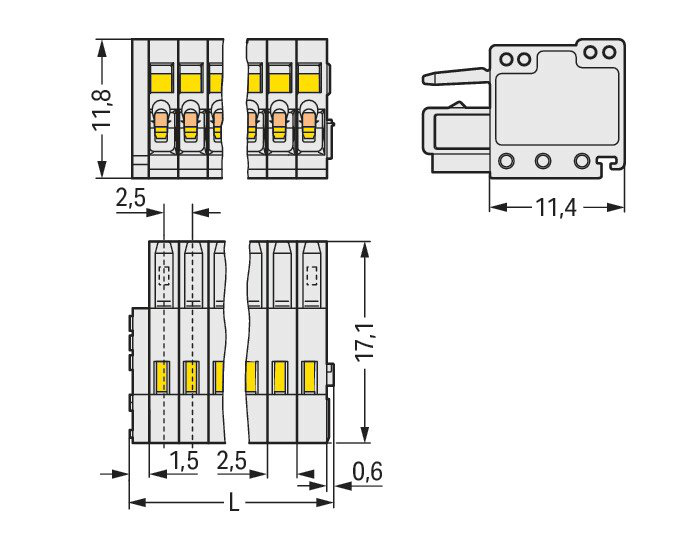

Dimensions

Depth
0.673 Inch
Height
0.465 Inch
Width
0.476 in

Certifications and Compliance

Country of Origin
Germany
Approvals
  • UL International Germany GmbH, UL, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NL-31141, IEC 61984
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
  • DEKRA Certification B.V., CCA, 2169534.01, EN 61984
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • DEKRA Certification B.V., CSA, 1465035, C22.2
  • WAGO GmbH & Co. KG, Railway, Railway Ready
Features
  • Universal connection for all conductor types
  • Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
  • Strain relief plates for factory and field assembly
  • 100% protected against mismating
  • Coding option available
Accessory Products
  • 210-251
  • 210-331/250-202
  • 210-331/250-204
  • 210-331/250-206
  • 210-331/250-207
  • 210-719
  • 216-131
  • 216-132
  • 216-151
  • 216-152
  • 216-301
  • 216-302
  • 216-321
  • 216-322
  • 233-331
  • 233-332
  • 233-335
  • 733-130
  • 733-191
  • 734-127
  • 735-500
