Square D RUMC32P7 Plug In Relay 250 Volt 10 Amp 230 Vac Coil Electromechanical Relay

Manufacturer: Square-D / Schneider | Catalog # RUMC32P7 | Cooper Electric Part # 1216088
$18.00/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Thursday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1

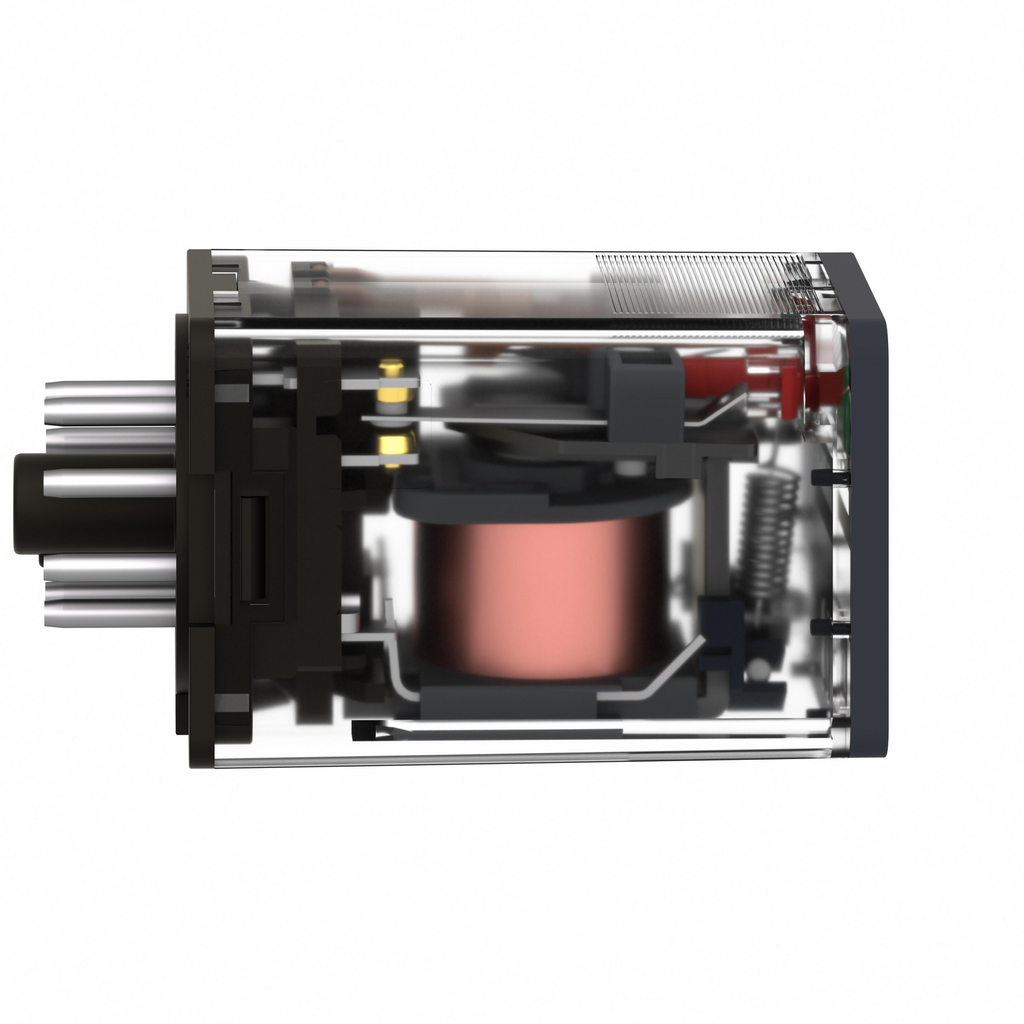

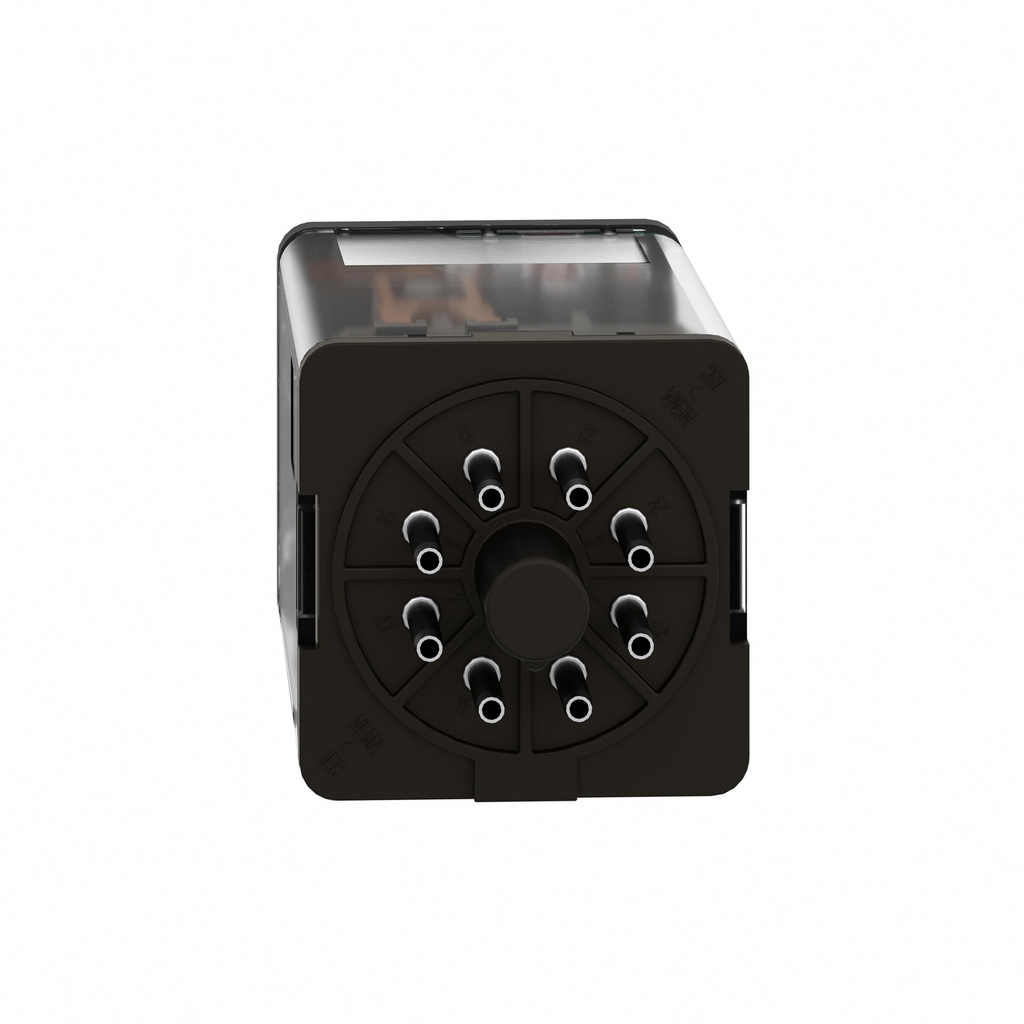

"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and .Power On. LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
10 Amp 250 V AC-10 Amp 28 V DC,10 Amp 277 V AC UL-10 Amp 30 V DC UL-10 Amp 277 V AC SAME POLARITY)CSA-10 Amp 30 V DC CSA-5 Amp 250 V AC NC)IEC-5 Amp 28 V DC NC)IEC-10 Amp 250 V AC NO)IEC-10 Amp 28 V DC NO)IEC
Contact Configuration
3 C/O
Contact Material
Silver Alloy
Control Type
Lockable test button
Dielectric Strength
1500 V
Line Rated Current
10 A
Net Weight
0.086 kg
Operating Cycles
<= 1200 Cycles/hour Under Load,<= 18000 Cycles/hour No-load
Operating Temperature
-40-55 degrees C
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
Type
PLUG-IN RELAY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RUM

General Product Info

12-Digit UPC
606480627012
GTiN
03606480627019
Product UPC
78590126018
Weight
0.086 kg

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RUW241P7
  • RUZC3M
  • RXZL520
  • RUW101MW
