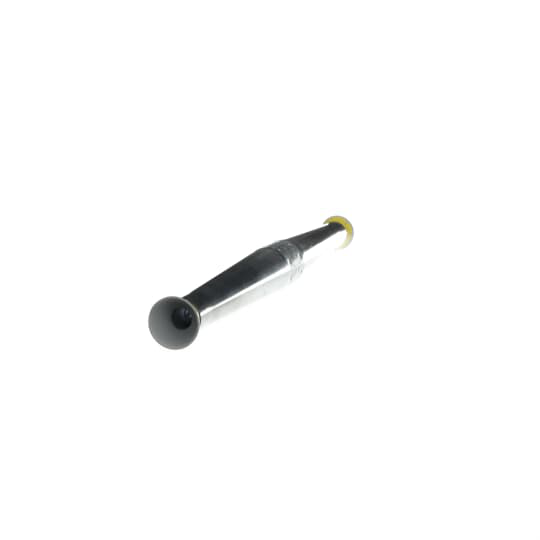

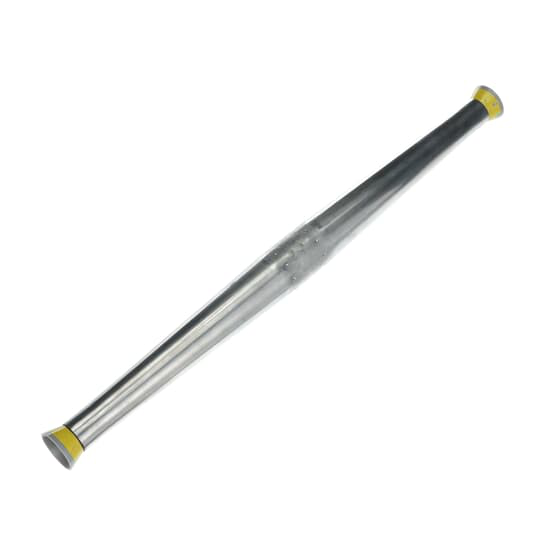

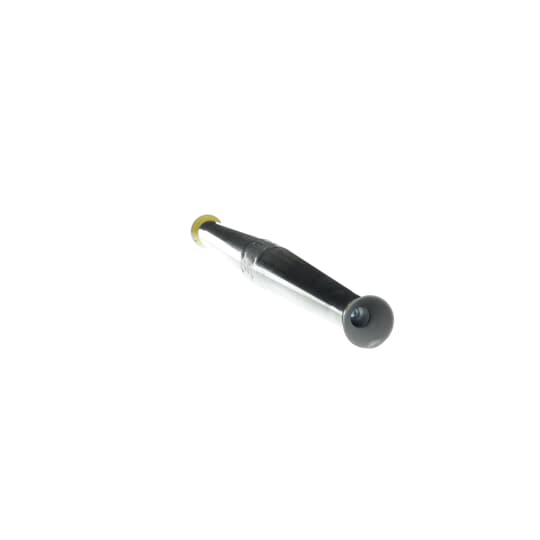

Product image for Blackburn ATS1020 Automatic Tension Splice
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Blackburn ATS1020 Automatic Tension Splice

Manufacturer: Blackburn / Thomas & Betts | Catalog # ATS1020 | Cooper Electric Part # 1215968
$67.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Autoset Automatic Tension Splice for Wire Range: 1/0 6/1, 2/0 7/1 ASCR, 1/0-2/0 AAAC, 1/0-2/0 AAC, Aluminum, Color Code 1/0 - Yellow, 2/0 - Gray

Technical Information

Applications
For Overhead Tension Connection
Conductor Size
2-1/0 AWG
Connection Type
Parallel
Handle Type
None
Material
Aluminum
Type
Automatic Tension Splice

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786103812
Color
Yellow, Gray
GTiN
05414363148098
Product UPC
78378610381

Dimensions

Handle Length
None
Length
16-1/4 Inch
Overall Length
16.25 in
Features
  • Pilot cap envelops strands and guides conductor past serrated jaws and into the center of the splice.
  • High-Strength aluminum alloy tubing covers the connection for superior corrosion protection and long-lasting durability. Tubular center stop automatically determines proper insertion length of both conductors.
  • Color-coded end pieces provide for visual identification of maximum conductor size. Color-coded tape further eliminates errors and speeds up installations. Funnel shape swiftly guides conductor into position for insertion.
  • Die-cast, precision-made jaws provides optimum contact area for a greater range of conductor sizes. Compression spring positions the jaw for positive conductor acceptance.
