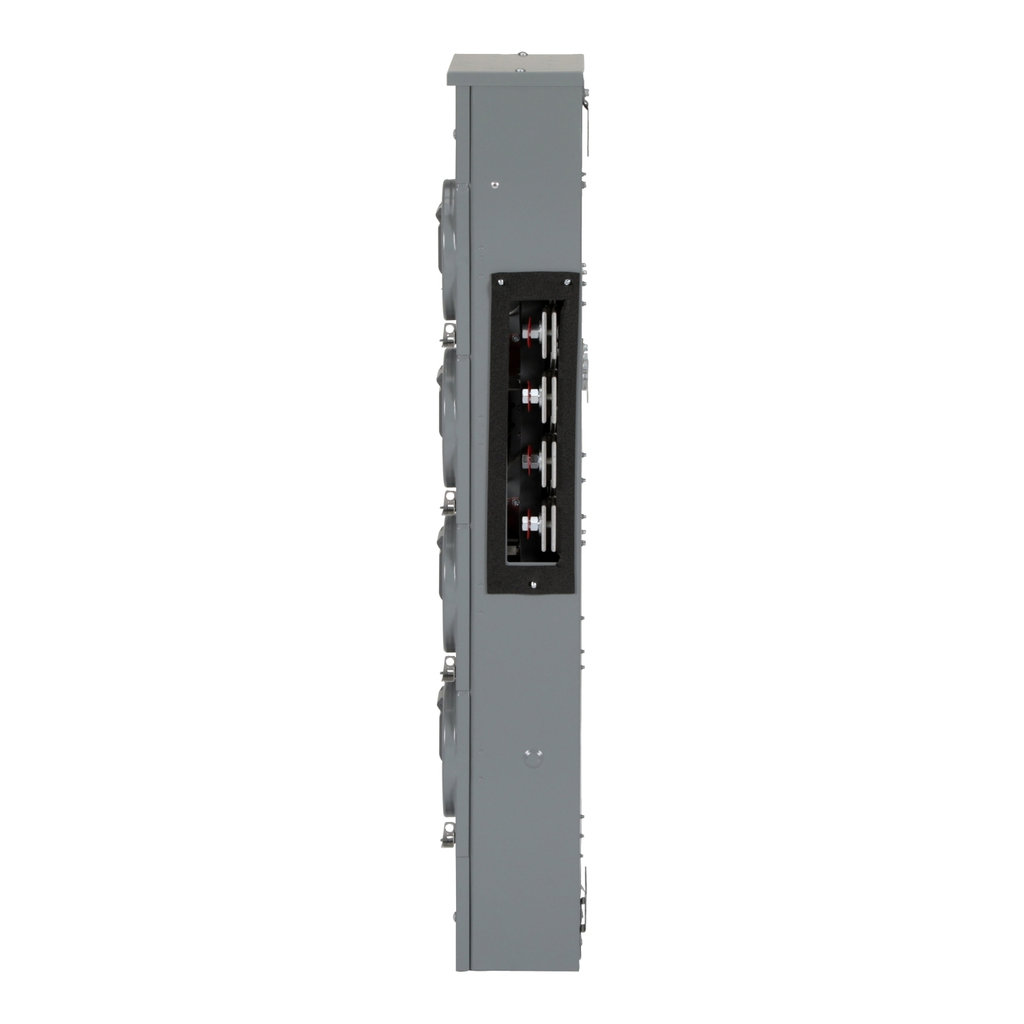

Square D EZMH314125 208 Star/120 VAC 125 Amp 3-Phase 4-Wire Ringless Meter Center Branch Unit

Manufacturer: Square-D / Schneider | Catalog # EZMH314125 | Cooper Electric Part # 121513
$2,474.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
22 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 Product Brochure

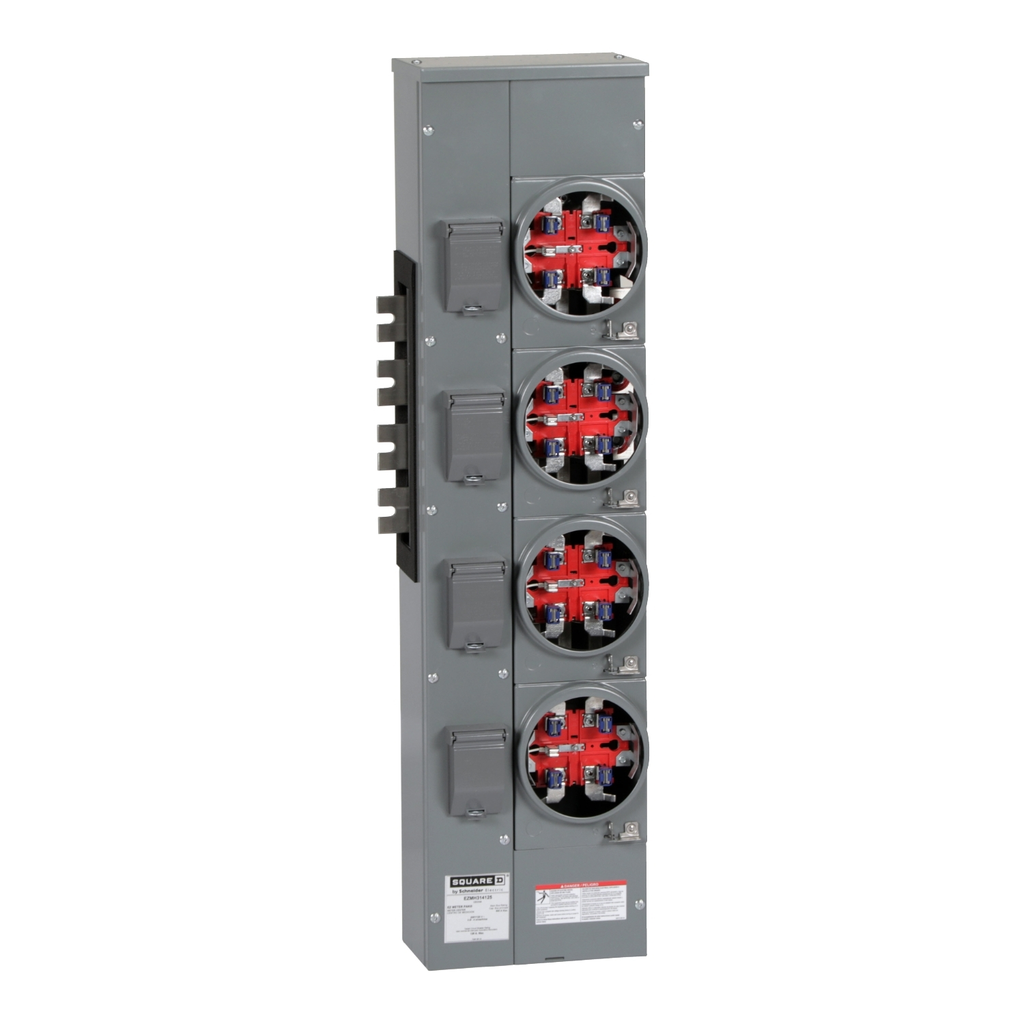

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 4 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a horn bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Technical Information

Amperage
125 Amp,800 Amp
Bus Rating
800 A
Current
125 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Line Rated Current
125 A
Material
Aluminium: Busbar
Mounting Type
Surface
NEMA Size
3R
Number of Jaws
5 Without Jaw Release
Number of Phases
1,3 Phase
Size
48.12 in
Type
Ringless;Meter Center Branch Unit
Voltage
120 Volt

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901402367
GTiN
00785901402367
Product UPC
78590140236

Dimensions

Depth
7.09 Inch
Height
48.12 Inch
Warranty Length
18 mth
Width
12.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 29007
  • 5J
  • EZM125QOA
  • EZM3CORNER
  • EZM3ELBOW
  • EZM3EXT
  • EZM3EXT6
  • EZM3TRANL
  • EZM3TRANR
  • EZM72MC
  • EZMCAP
  • EZMSCAP
  • RSG4
