SQUARED LX9FH1272 TeSys F - specifi

Manufacturer: Square-D / Schneider | Catalog # LX9FH1272 | Cooper Electric Part # 1214843
$248.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Catalog Page Product Spec Sheet

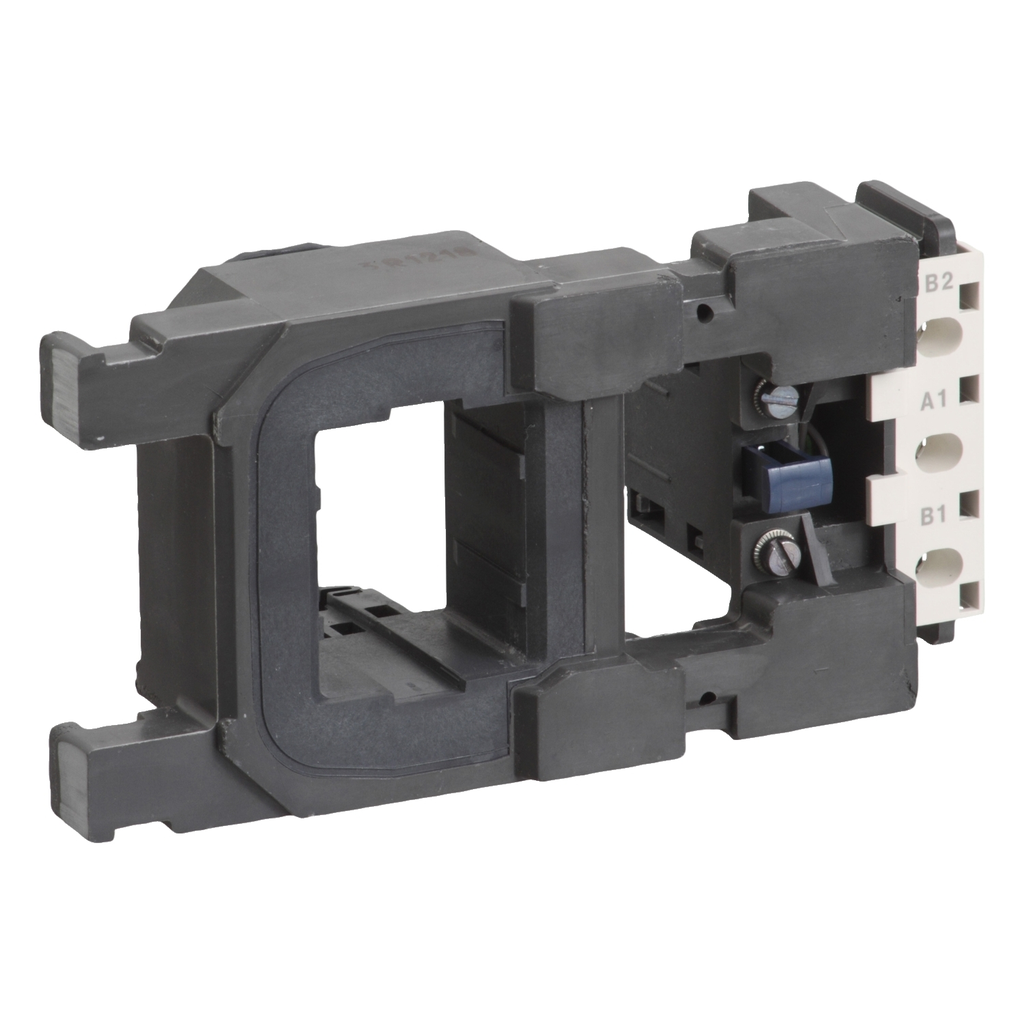

TeSys F AC coil 120/127V 40-400Hz (voltage code G7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F265, FG265, F330. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provid

Technical Information

Applications
LC1F265;LC1F330
Coil Voltage
120 to 127@40 to 400Hz VAC
Net Weight
0.75 kg
Operating Cycles
3600 cyc/h 131 F (55 C)
Operating Temperature
-5-55 Adegrees C
Range
TeSys
Type
Specific contactor coil

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS F

General Product Info

12-Digit UPC
785901904205
GTiN
03389110454536
Product UPC
78590190420
Weight
0.75 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

Country of Origin
Czechia
Uc Control Circuit Voltage
  • 120...127 V AC 40...400 Hz
Range Compatibility
  • TeSys TeSys F LC1F contactor
Maximum Operating Rate
  • 3600 cyc/h 55 °C
Carbon Footprint Of The Installation Phase A5
  • 0.0003999825873412172
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3 kg CO2 eq.
  • 0.28693227533080673
Operating Time
  • 25 ms opening
  • 45 ms closing
Control Circuit Type
  • AC 40...400 Hz low consumption
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.9 kg CO2 eq.
  • 0.9122731131826548
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 69 kg CO2 eq.
  • 68.82266544572599
Carbon Footprint Of The Distribution Phase A4
  • 0.049774529084509175
  • 0 kg CO2 eq.
Average Resistance
  • 22.9 Ohm inrush 20 °C
  • 516 Ohm holding 20 °C
Control Circuit Voltage Limits
  • operational 0.85...1.1 Uc 55 °C)
  • drop-out 0.35...0.55 Uc 55 °C)
Hold In Power Consumption In Va
  • 8-10 VA 40...400 Hz (at 20 °C)
Inrush Power In Va
  • 560-660 VA 40...400 Hz (at 20 °C)
Product Compatibility
  • LC1F265
  • LC1F330
