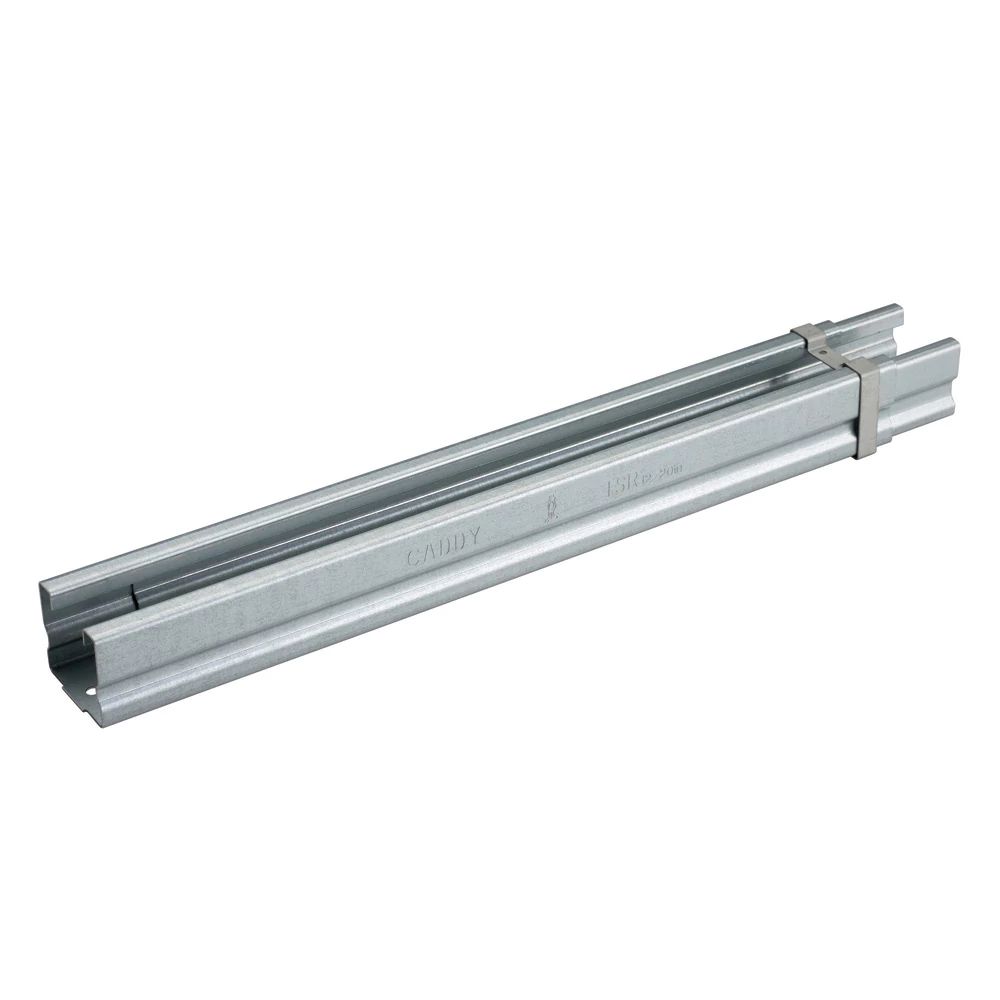

Product image for Caddy TSR1220N Telescoping Strut Replacement, No Nut
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Caddy TSR1220N Telescoping Strut Replacement, No Nut

Manufacturer: Erico, Inc | Catalog # TSR1220N | Cooper Electric Part # 1214449
$1,535.21/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Telescoping Strut Replacement, No Nut

Technical Information

Applications
For Electrical, Data Communication, HVAC
Material
Steel
Size
1/2 in
Type
Replacement, No Nut

Packaging

Standard Packaging Qty
25 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856916451
Finish
Pre-Galvanized
GTiN
00782856916451
Product UPC
78285691645
Weight
0.65 kg

Dimensions

Hole Size
3/16 in
Length
21-1/2 Inch
Thickness
0.04 in
Width
1 5/8 in
Features
  • Can be attached directly to a wall for wall-mounted applications?
  • Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
  • Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
  • Integrated ruler displays space between hanger rods in inches and centimeters

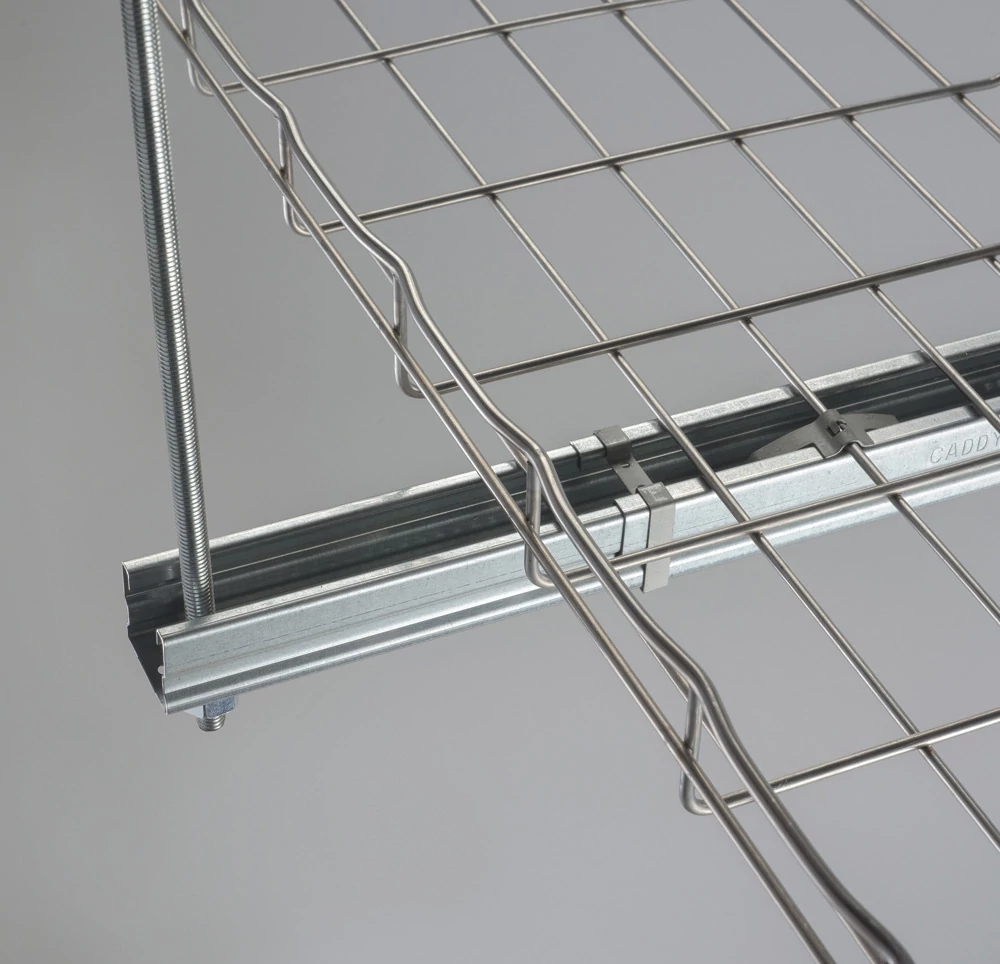

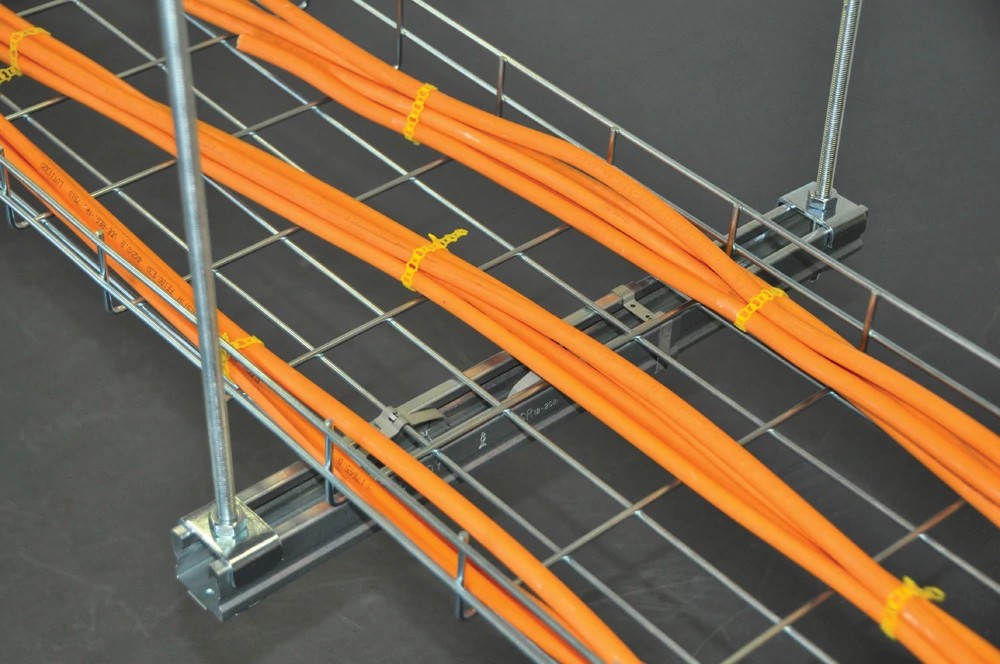

  • Supports up to seven 2\" (50 DN) conduits, six 2\" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18\" (450 mm) cable tray
  • Conduit can be supported on the top and bottom, eliminating the need for double sided strut

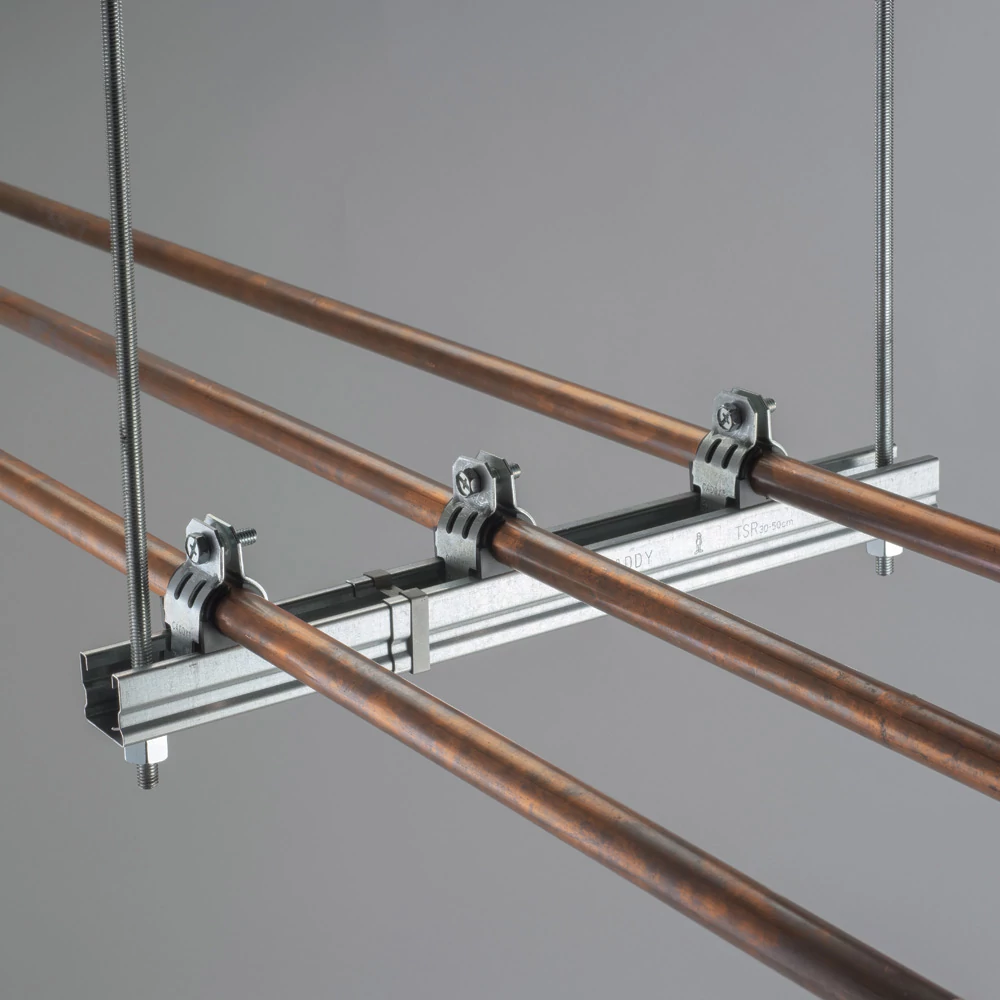

  • Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation
