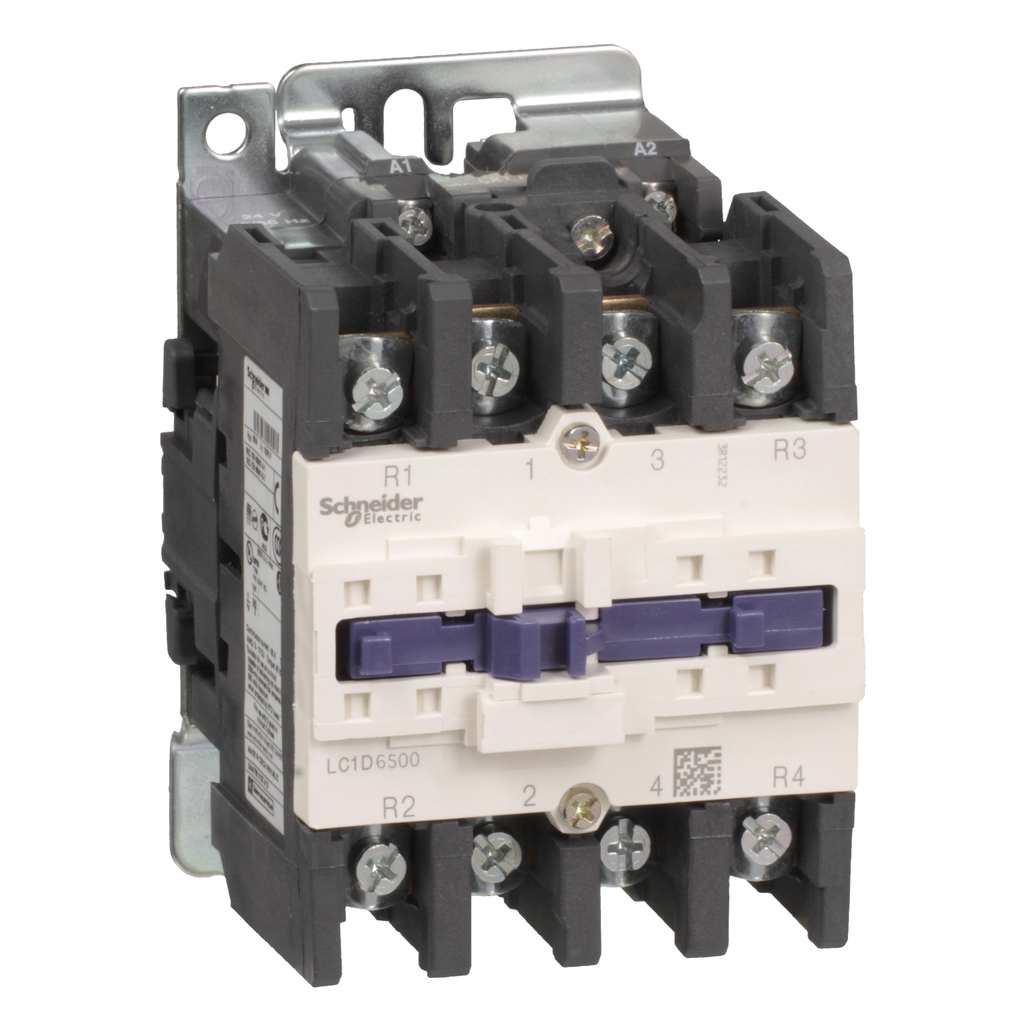

Product image for Square D LC1D65008U6 575 VAC 65 Amp 4-Pole Screw Terminal Full Voltage Non-Reversing IEC Contactor
Image thumbnail 0
Image thumbnail 1
Email

Square D LC1D65008U6 575 VAC 65 Amp 4-Pole Screw Terminal Full Voltage Non-Reversing IEC Contactor

Manufacturer: Square-D / Schneider | Catalog # LC1D65008U6 | Cooper Electric Part # 1213202
$624.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Schneider Electric,CONTACTOR 575VAC 65AMP IEC +OPTIONS,2 NO + 2 NC,240 V AC 60 Hz,4P,80 A at <= 60 ..C for power circuit,LC1D,contactor,LC1D,resistive load,Screw Clamp,TeSys,TeSys D,rail-plate

Technical Information

Applications
RESISTIVE LOAD
Coil Voltage
240 V AC 60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Contact Configuration
2 NO + 2 NC
Contact Rating
80 A 60 AC POWER CIRCUIT
Control Circuit Voltage
240 V
Impedance
1.5 mOhm - Ith 80 A 50 Hz Power Circuit
Operating Cycles
3600 cyc/h 140 F (60 C)
Operating Temperature
-40-70 Adegrees C AT UC,-5-60 Adegrees C
Size
125 MM,127 MM,85 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
TC Connection
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMAFLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMASOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMASOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-35 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-25 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-35 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-25 MMAFLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-35 MMASOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-25 MMASOLID WITHOUT CABLE END
Type
CONTACTOR
Voltage
690 Volt
Wattage
9.6 Watt AC-1

Packaging

Pkg Qty
1

Manufacturer Information

Brand
TeSys
Sub Brand
TESYS D

General Product Info

12-Digit UPC
785901137535
GTiN
00785901137535
Product UPC
78590113753
Weight
3.2 lb

Dimensions

Depth
4.92 Inch
Height
5 Inch
Warranty Length
1.5 yr
Width
3.35 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS,RINA,UL
Country of Origin
Czech Republic
