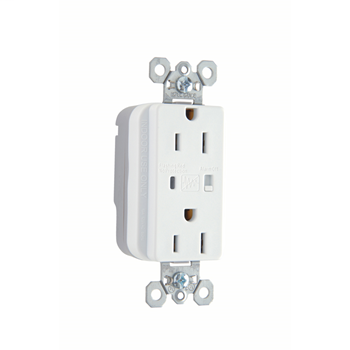

Product image for P&S PT5262WSP PT SPD RECP 15A/125V
Image thumbnail 0
Image thumbnail 1
Email

P&S PT5262WSP PT SPD RECP 15A/125V

Manufacturer: Pass & Seymour / Legrand | Catalog # PT5262WSP | Cooper Electric Part # 1212735
$87.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail® Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). 15amp 125volt, White For detailed PlugTail® information, visit our PlugTail Headquarters.

Technical Information

Amperage
15 Amp
Applications
Residential/Commercial
Connection Type
Built-In Connector
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Operating Temperature
-20degrees C to 55degrees C (-4 to 131degrees F
Size
.94" Depth x 1.75" Width x 3.82" Height
TC Connection
Built-In Connector
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007020939
Class
IG
Color
White
GTiN
00785007020939
Product Series
PlugTail
Product UPC
78500702093
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
3.82 Inch
Width
1.750 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
