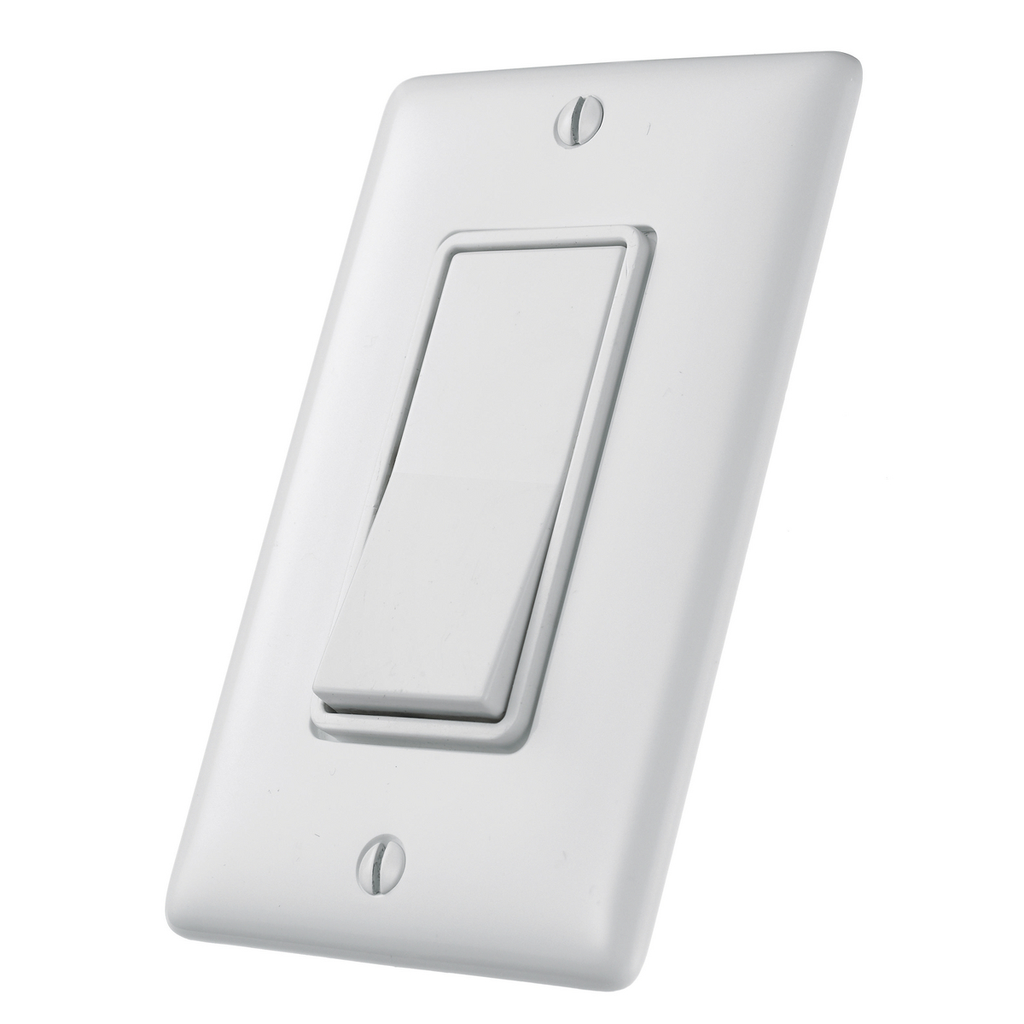

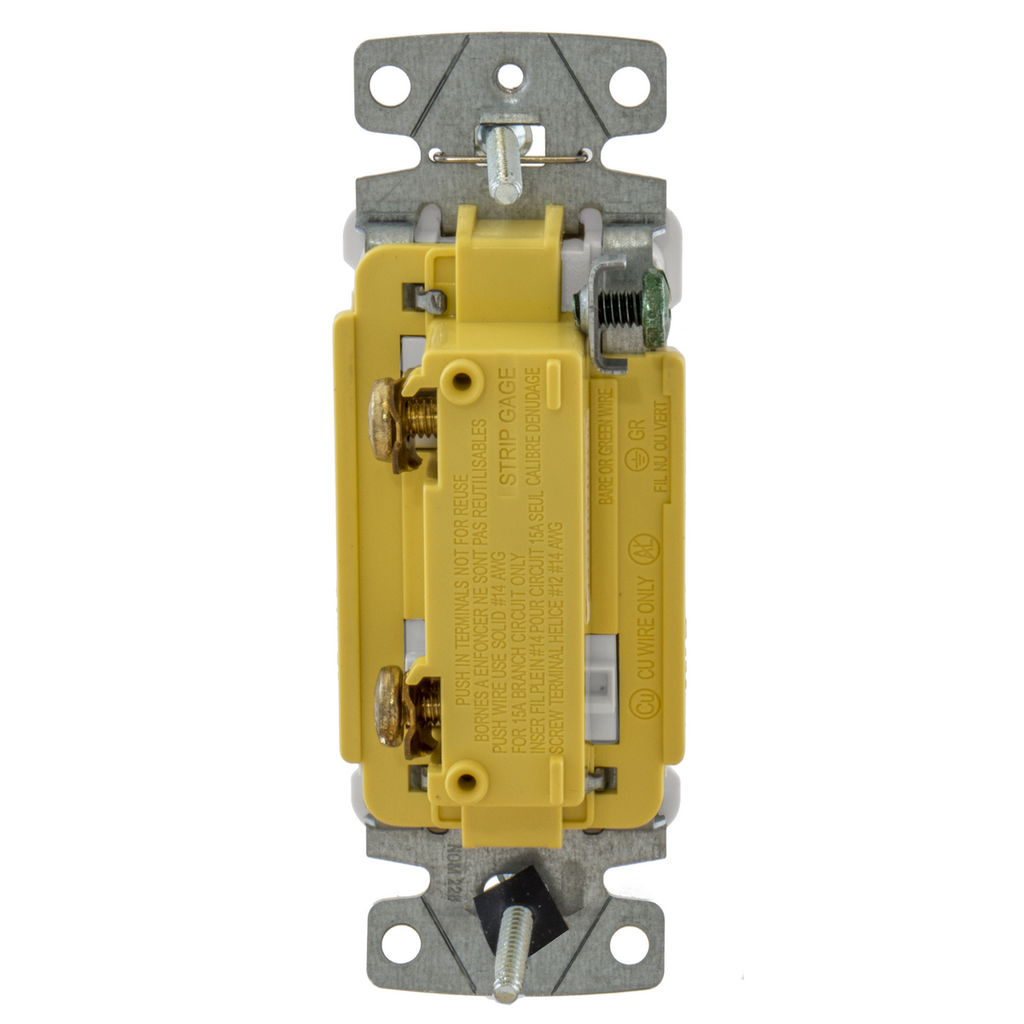

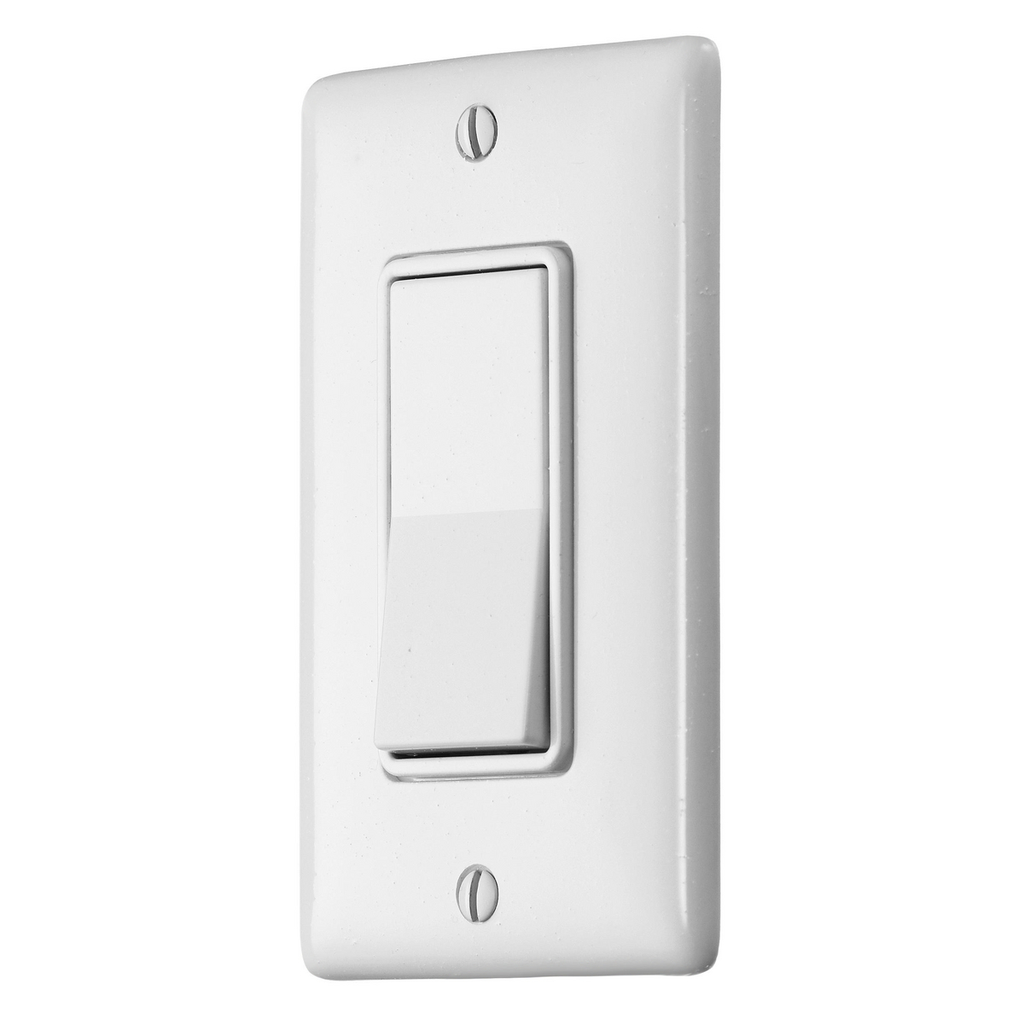

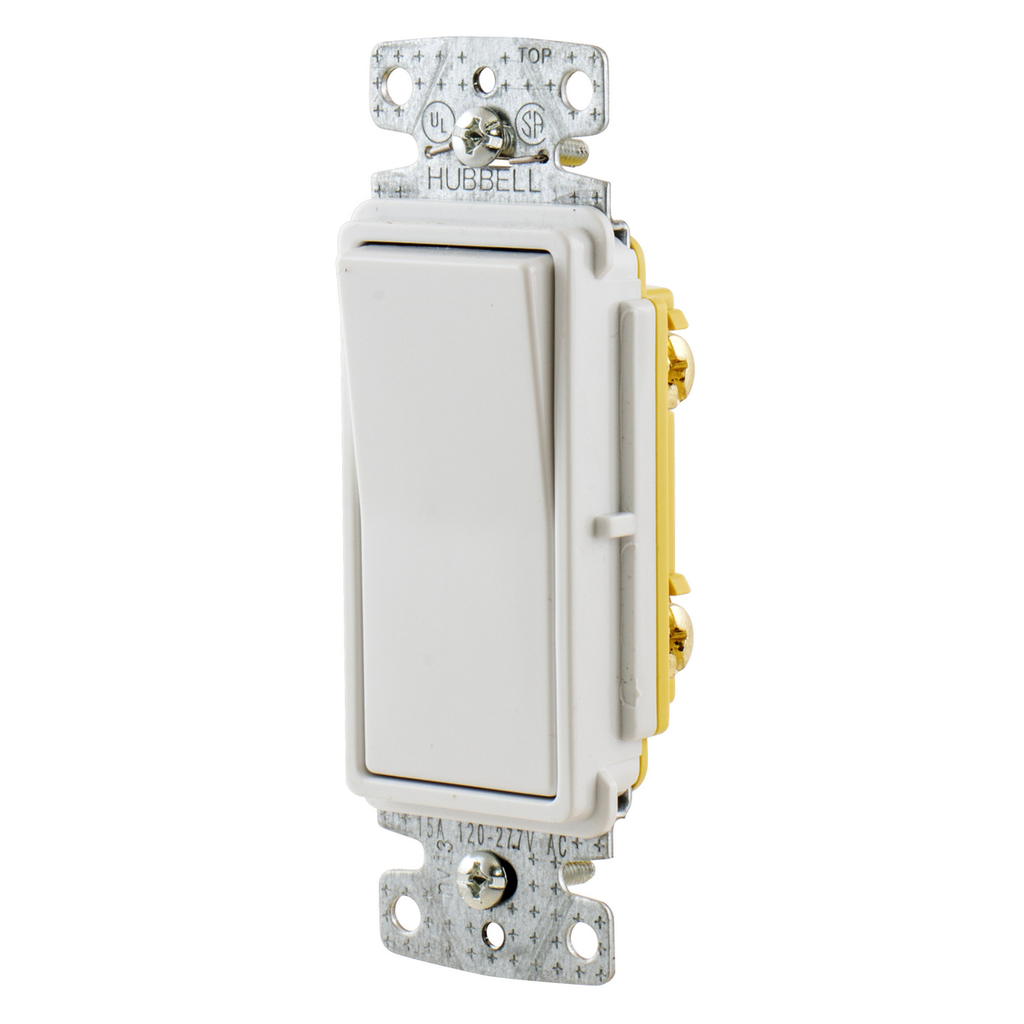

Hubbell RSD115W 15A Single Pole Decorator Rocker Switch, 120-277V - White

Manufacturer: Hubbell Wiring Device | Catalog # RSD115W | Cooper Electric Part # 121265
$4.71/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
221 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Single Pole, 15A 120/277V AC Push Back and Side Wired

Technical Information

Action
Positive Snap, Off
Actuator
Rocker
Amperage
15 Amp
Applications
For Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Mounting Type
Flush, Screw
Number of Poles
1 Pole
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Size
Standard Sized
Standard
CSA,UL Standard 20
TC Connection
Push Wire and Terminal Screws
Temperature Rating
60 degrees C Maximum Continuous, -20 degrees C Minimum Continuous without Impact
Type
General Purpose, Standard, 2 Position
Voltage
120/277 VAC
Wattage
4155 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101137
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00883778101137
Product UPC
88377810113

Dimensions

Height
1.3 Inch
Length
4.2 Inch
Width
1.470 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
