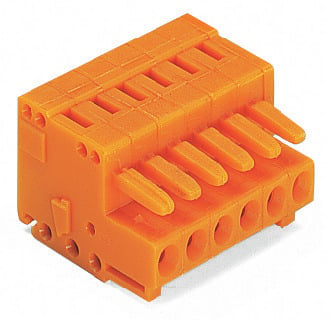

Product image for WAG 734-204 F-CONN W/C-C V0 3.81MM ORANGE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

WAG 734-204 F-CONN W/C-C V0 3.81MM ORANGE

Manufacturer: Wago | Catalog # 734-204 | Cooper Electric Part # 1212369
$7.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
WAG 734-204 F-CONN W/C-C V0 3.81MM ORANGE

Technical Information

Actuator
Operating Tool
Conductor Size
14 AWG
Connection Type
For Conductor
Contact Material
Copper Alloy
Contact Type
Tin
Current
10 Amp
Flamability Class
V0
Insulation Material
Polyamide
Number of Connections
1,4
Strip Length
0.28 in
Voltage
160 Volt

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918066550
Color
Orange
Product UPC
04491806655
Weight
3.456 g

Dimensions

Depth
0.732 Inch
Height
0.528 Inch
Width
0.687 in

Certifications and Compliance

Country of Origin
Germany
Approvals
  • DEKRA Certification B.V., CB, NL-54190, EN 61984
  • WAGO GmbH & Co. KG, Railway, Railway Ready
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 71-105522, EN 61984
  • DEKRA Certification B.V., CSA, 1465035, C22.2
  • Underwriters Laboratories Inc., UL, E 45171, UL 1977
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
Features
  • Universal connection for all conductor types
  • Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
  • Strain relief plates and housings for field assembly
  • 100% protected against mismating
  • Coding option available
Accessory Products
  • 210-250
  • 210-251
  • 210-332/350-202
  • 210-332/350-204
  • 210-332/350-206
  • 210-647
  • 210-719
  • 216-101
  • 216-102
  • 216-103
  • 216-104
  • 216-121
  • 216-122
  • 216-123
  • 216-124
  • 216-131
  • 216-132
  • 216-141
  • 216-142
  • 216-143
  • 216-144
  • 216-151
  • 216-152
  • 216-201
  • 216-202
  • 216-203
  • 216-204
  • 216-221
  • 216-222
  • 216-223
  • 216-224
  • 216-241
  • 216-242
  • 216-243
  • 216-244
  • 216-262
  • 216-263
  • 216-264
  • 216-284
  • 216-301
  • 216-302
  • 216-321
  • 216-322
  • 734-127
  • 734-190
  • 734-191
  • 734-230
  • 734-231
  • 734-602
  • 734-671
  • 735-500
