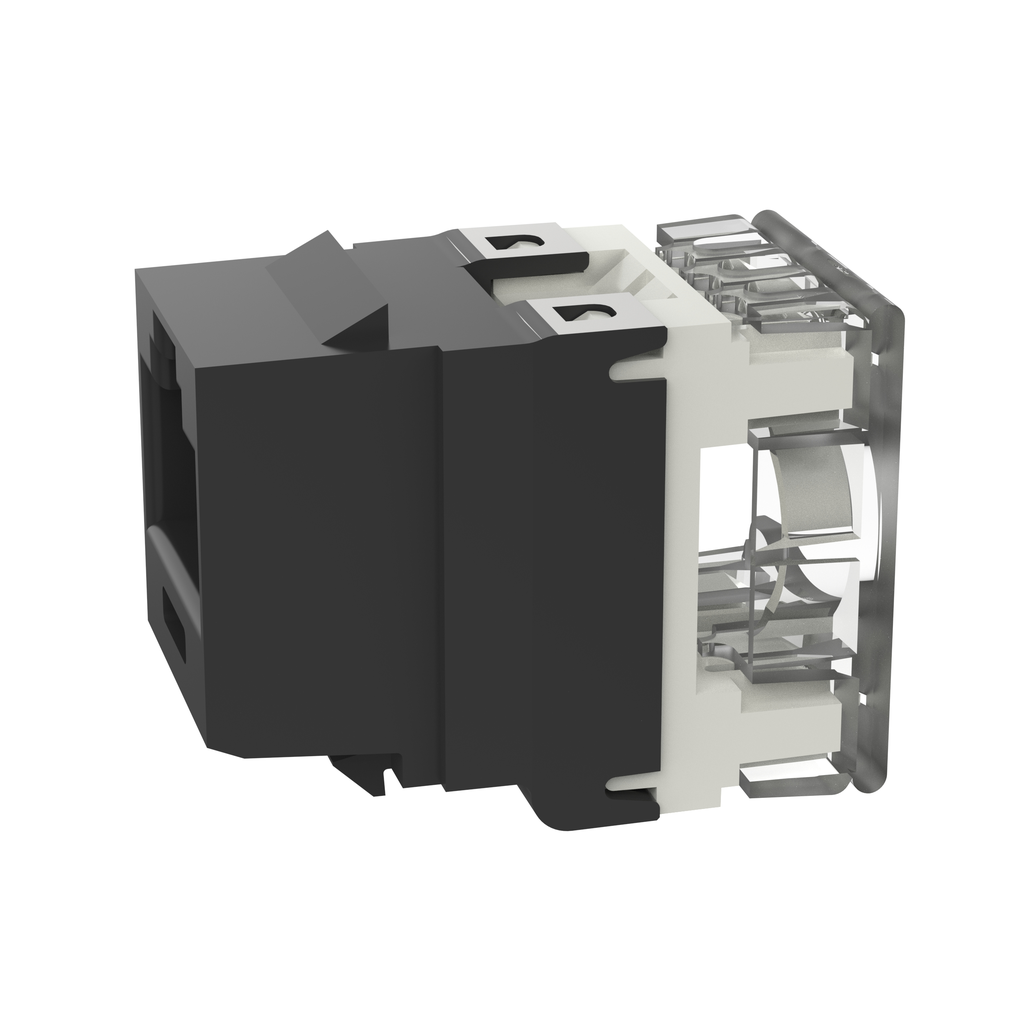

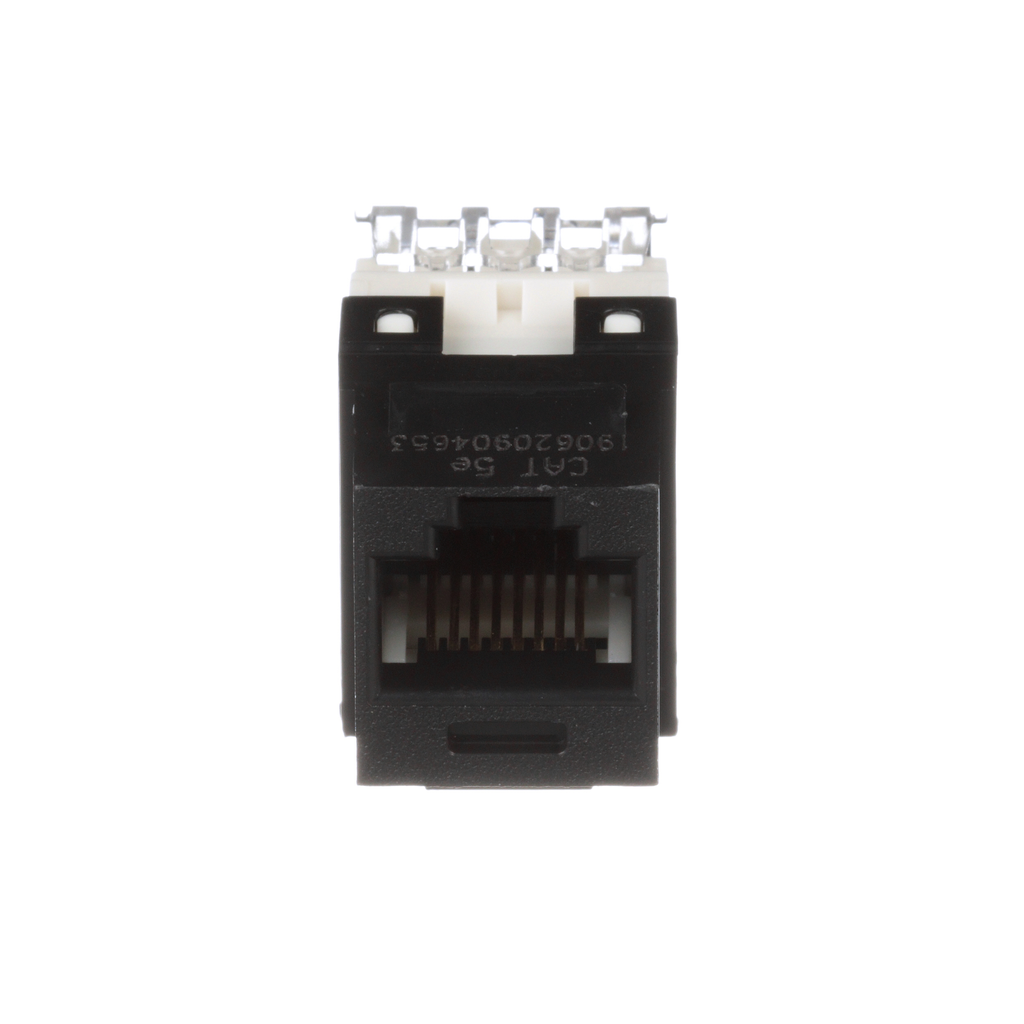

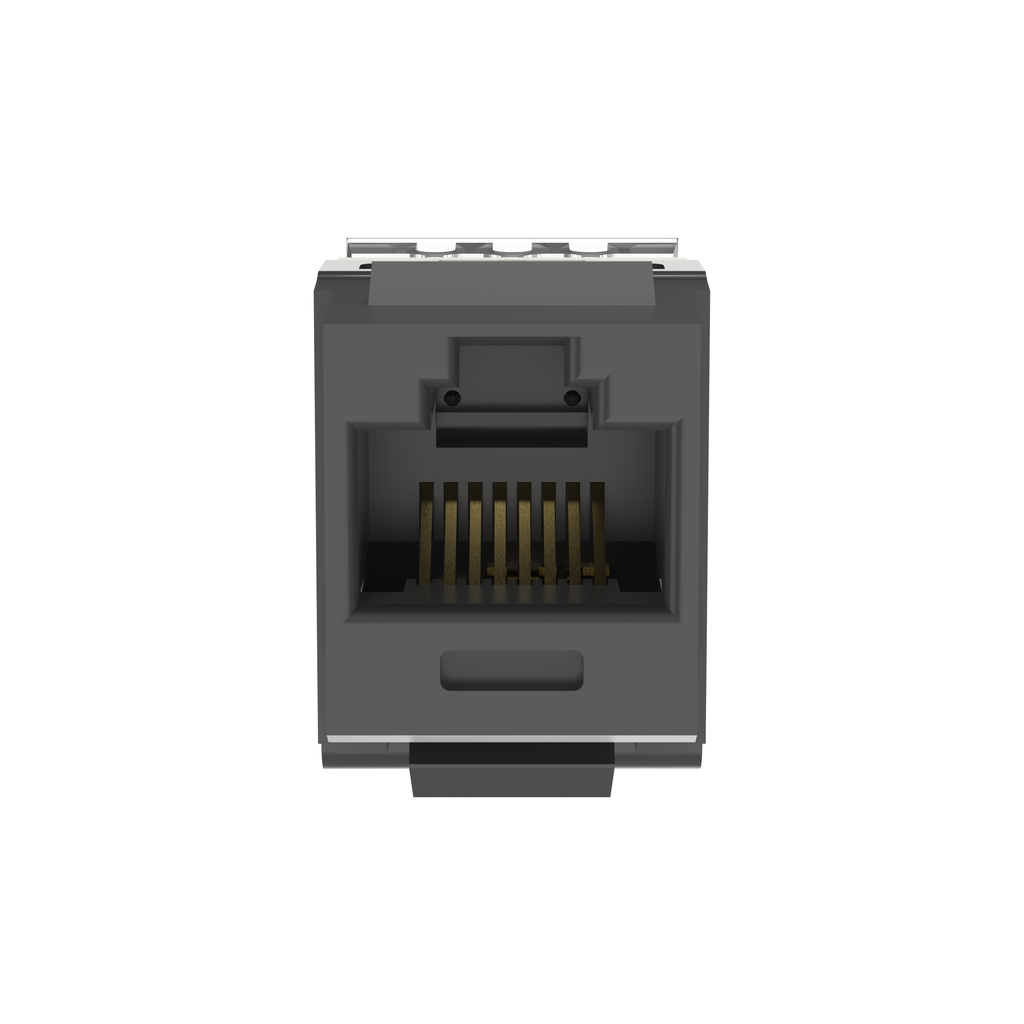

Product image for Panduit NKP5E88MBL-Q NetKey Cat 5e Punchdown Jack, Black - Pack of 25
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Panduit NKP5E88MBL-Q NetKey Cat 5e Punchdown Jack, Black - Pack of 25

Manufacturer: Panduit Corp | Catalog # NKP5E88MBL-Q | Cooper Electric Part # 1211511
$10.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing Product Brochure
The NetKey® Cat 5e UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is black and includes 25 per package.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Cable Size
26-22 AWG
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Temperature Rating
-10 to 65 degrees C
Type
Keystone, Unshielded, 8-Wire

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983125173
Color
Black
GTiN
00074983125173
Product UPC
07498312517
UNSPSC
43223301
Used With
T568A/T568B Cable

Dimensions

Depth
1.16 Inch
Height
22.9 mm
Overall Length
29.5 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
