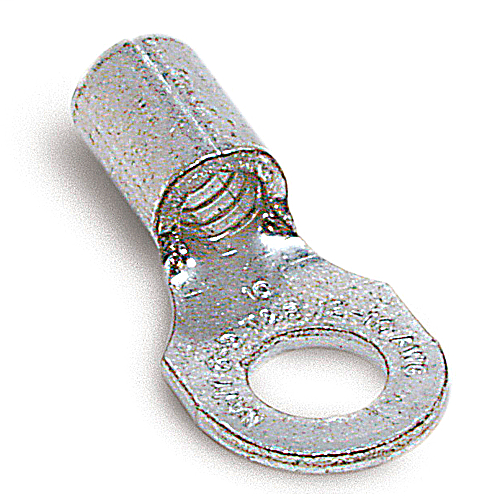

Thomas & Betts A87 Non-Insulated Ring Terminal - #22-16, #10bolt (1000/Pkg)

Manufacturer: ABB | Thomas & Betts | Catalog # A87 | Cooper Electric Part # 121101
$54.91/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

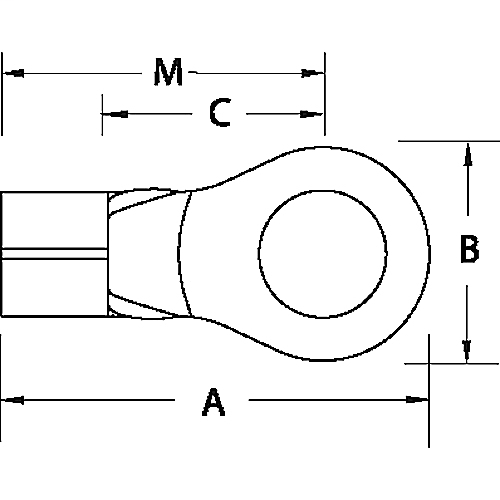

Non-Insulated Ring Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #10, Wire Range #22-#16 AWG, Copper, Tin Plated, 1,000 Pack

Technical Information

Barrel Type
Serrated
Conductor Size
22-16 AWG
Insulation Type
Non-Insulated
Material
Copper
Temperature Rating
150 degrees C
Type
Non-Insulated
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807928
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363935278
Product UPC
78621080792
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
