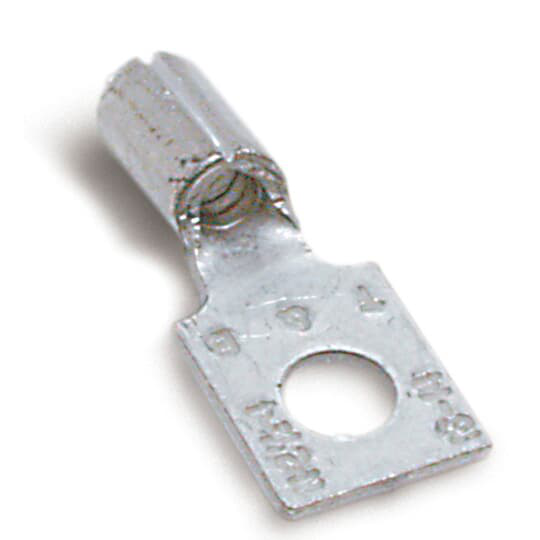

Thomas & Betts B481 #6 Bolt Hole 16-14 AWG Wire Range Non-Insulated Rect Ring Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # B481 | Cooper Electric Part # 1210774
$112.52/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Non-Insualted Rectangular Ring Terminal, Length .96 Inches, Width .302 Inches, Bolt Hole #6, Wire Range #16-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed, Overlapping Seam
Conductor Size
16-14 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
CSA,E2186,UL
Stud Size
#6
Temperature Rating
150 degrees C
Type
Rectangular
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210810171
Color
Metallic
Finish
Tin Plated
GTiN
00786210810171
Product UPC
78621081017

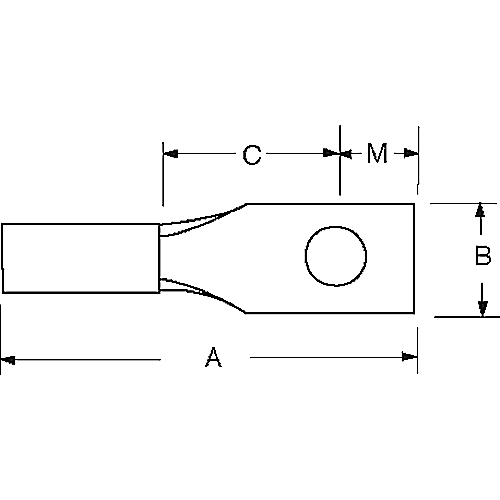

Dimensions

Length
0.96 Inch
Width
0.302 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • 16-14 ga. = 2 1/2-4 Navy
  • A, B, C481 for use with BU-Ships terminal board types 6TB, 7TB and 9TB.
