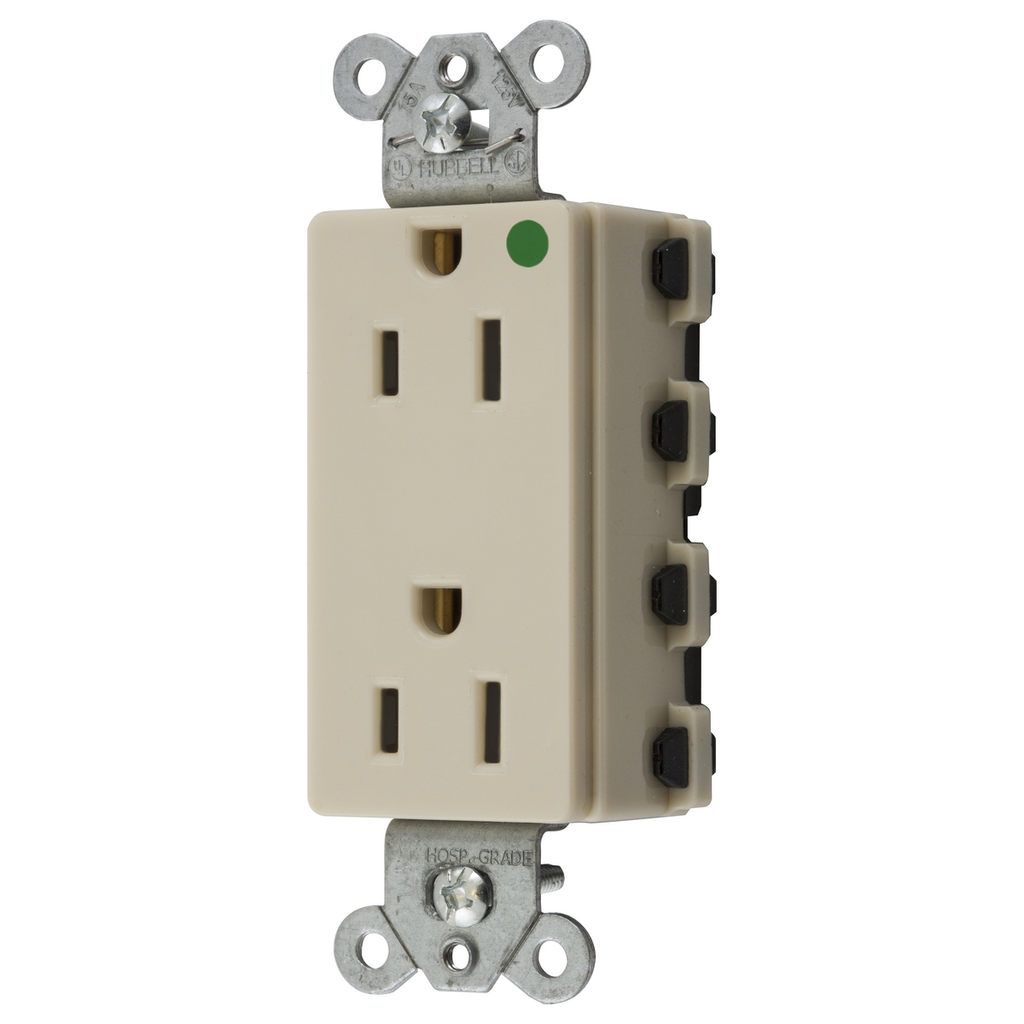

Product image for Hubbell SNAP2172IA Snap2Connect® 15A/125V HG DECO, IVORY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell SNAP2172IA Snap2Connect® 15A/125V HG DECO, IVORY

Manufacturer: Hubbell Wiring Device | Catalog # SNAP2172IA | Cooper Electric Part # 1210445
$24.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual

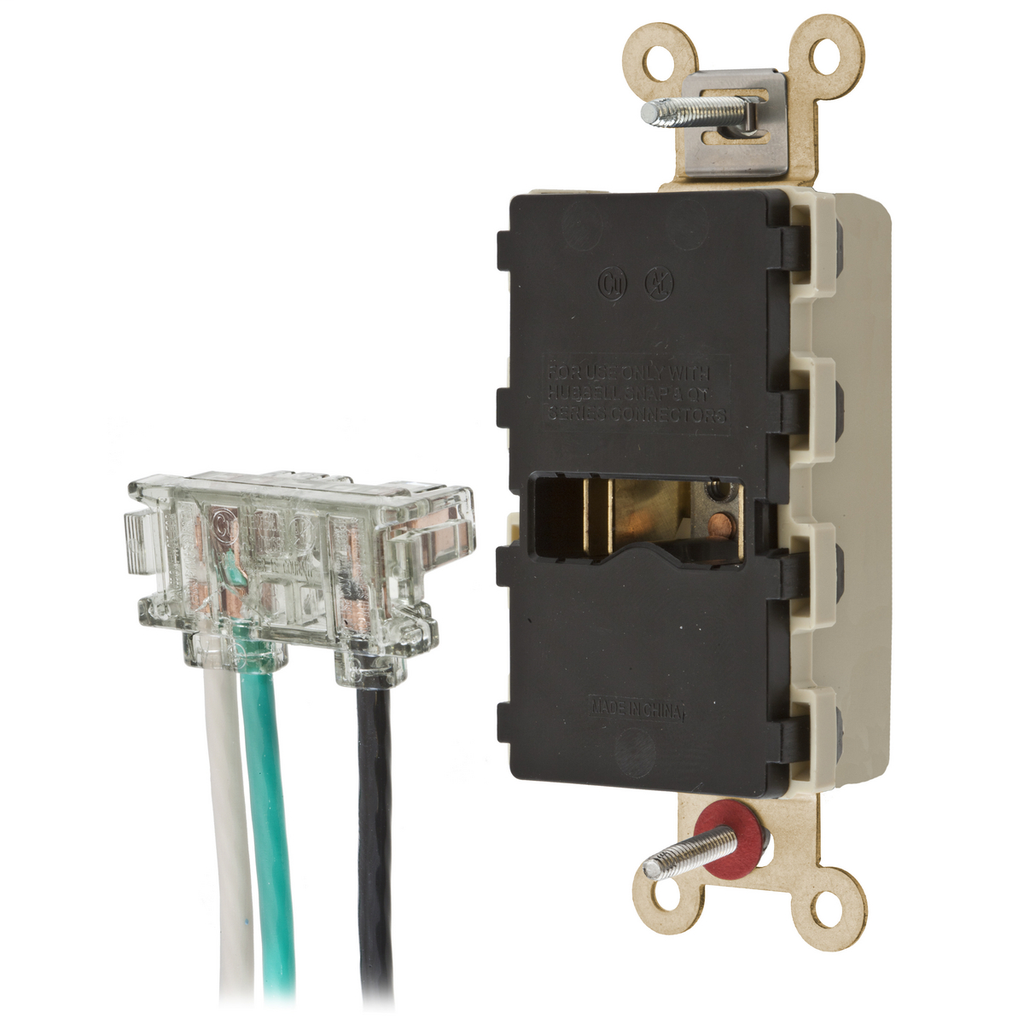

Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Nylon, Ivory

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Base Material
PBT,PBT
Conductor Size
12 AWG
Contact Material
Brass
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Style Line Decorator
TC Connection
Connectorized
Type
Non-Reversing
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585247977
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585247977
Product Series
Hospital Grade
Product UPC
78358524797
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
China
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Self-grounding clip makes installation ease
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
Performance
  • Electrical: Current Interrupting- Certified for current interrupting at full rated current
  • Electrical: Dielectric Voltage- Withstands 2,000V minimum
  • Mechanical: Product Identification Ratings are a permanent part of the device
  • Environmental: Flammability- UL 94V-2
  • Environmental: Operating Temperature- Maximum continuous 75°C, minimum -40°C (w/o impact)
