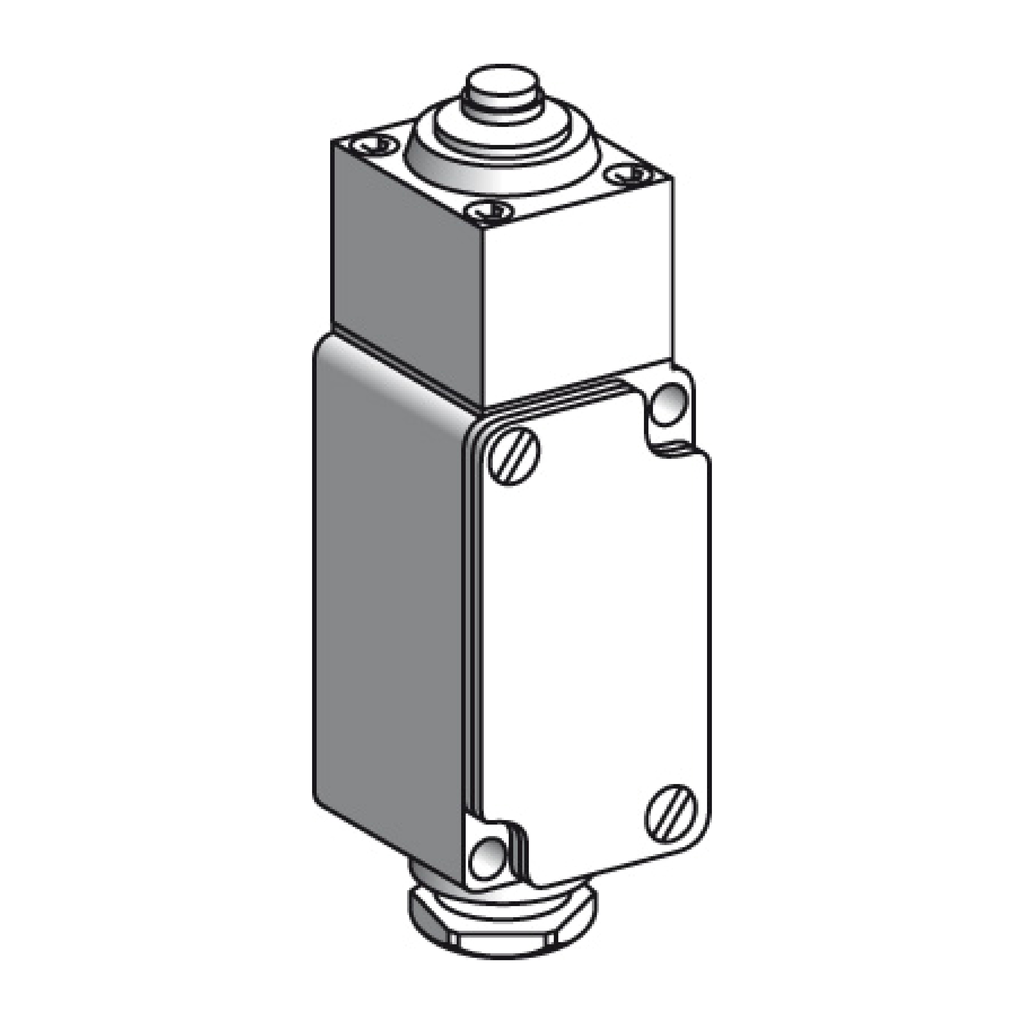

TES XC2JC161 Limit switch, Limit switches XC Standard, XC2 J, metal end plunger, 1 C/O

Manufacturer: TES Electric | Catalog # XC2JC161 | Cooper Electric Part # 1208848
$338.10 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Limit switch, Limit switches XC Standard, XC2 J, metal end plunger, 1 C/O

Technical Information

Action
Snap action;On end
Actuator
END PLUNGER METAL
Applications
For severe applications
Body Type
Fixed
Cable Entry
1 entry incorporating cable gland 0.240.53 in (613.5 mm)
Contact Material
Silver Plated Contacts
Head Type
Plunger head
Material
Metal
Net Weight
0.6 kg
Number of Poles
1 Pole
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 3600 CYC/H 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 3600 CYC/H 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 3600 CYC/H 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.61 in
Standard
CSA C22.2 No 14,EN/IEC 60947-5-1,IEC 60337-1,UL 508,VDE 0660-200
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
Limit switch

Manufacturer Information

Brand
Telemecanique
Sub Brand
XC2J

General Product Info

12-Digit UPC
785901066170
GTiN
03389110325706
Product UPC
78590106617
Weight
1.32 lb

Dimensions

Depth
41 mm
Height
112-112 mm
Warranty Length
18 mth
Width
40 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,DEMKO,NEMKO
Country of Origin
France
