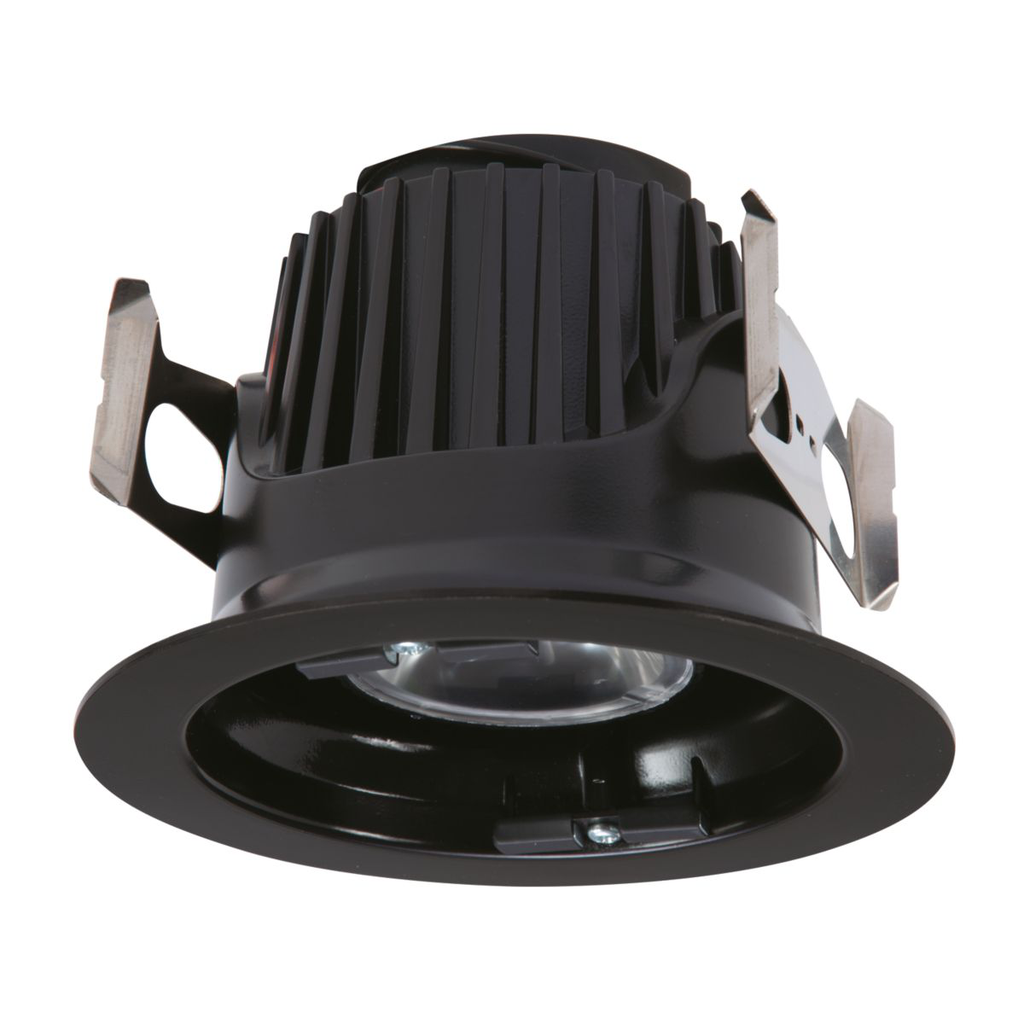

Product image for Halo ML4D09NFL935E 4" LED Downlight Module, 900 lm, Narrow Flood, 90 CRI, 3500 K, 120 - 277V, LE/TE 5pct Dimming

Email

Halo ML4D09NFL935E 4" LED Downlight Module, 900 lm, Narrow Flood, 90 CRI, 3500 K, 120 - 277V, LE/TE 5pct Dimming

Manufacturer: Cooper Lighting | Catalog # ML4D09NFL935E | Cooper Electric Part # 1207197

$90.19/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The ML4 system is comprised of a housing, LED module, and round or square 2-inch aperture pinhole trims. This compact assembly installs from below the ceiling in standard 4-inch line voltage housings suitable for 2x6 residential framing or shallow plenum commercial construction. Although diminutive in size the 900 lumen series ML4 delivers powerful beams of light providing the optical control and color quality typically associated with low voltage tungsten-halogen MR16 lamps. Delivered center beam candlepower (CBCP) of ML4 LED exceeds 50W low voltage MR16 lamps with significantly higher candela per watt (Cd/W).

Technical Information

Amperage
0.044 (at 277V)
Aperture Size
4 in
Applications
Lighting
Ballast Type
N/A
Color Temperature
3500 K
Correlated Color Temp
3,500 K
Lamp Type
LED
Lumens
900 Lumen
Mounting Type
Recessed
Number of Lamps
1
Style
(blank)
Type
ML4 LED Module
Voltage
120 Volt
Wattage
12.5 Watt

Manufacturer Information

Brand
Halo
Sub Brand
ML4 LED 4" Recessed Downlight System

General Product Info

12-Digit UPC
080083756667
GTiN
00080083756667
Product UPC
08008375666
Weight
1.54 lb

Dimensions

Diameter
4 Inch
Height
4-3/8 Inch
Length
6-1/4 Inch
Width
6.0 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
Mexico
Features
  • 6.25 IN Length 6.0 IN Width 4.375 IN Height
  • 4\" modular downlight, Downlight, wall wash, accent/task distributions
  • Field-interchangeable round and square 2-inch pinhole aperture trims
  • Open and lens apertures provide cutoff to source and glare control
  • 4 color temperatures: 2700K, 3000K, 3500K and 4000K CCT, CRI: 90
  • Die-formed steel trims, Magnetic attachment, Painted, plated finishes
  • 120V-277V, Phase or 0-10V dimming down to 5%, Lumens: up to 900
  • L70 at 50,000 hours, D2W™ option from 3000K to 1850K
  • UL listed with Halo 4\" housings, AIR-TITE™
