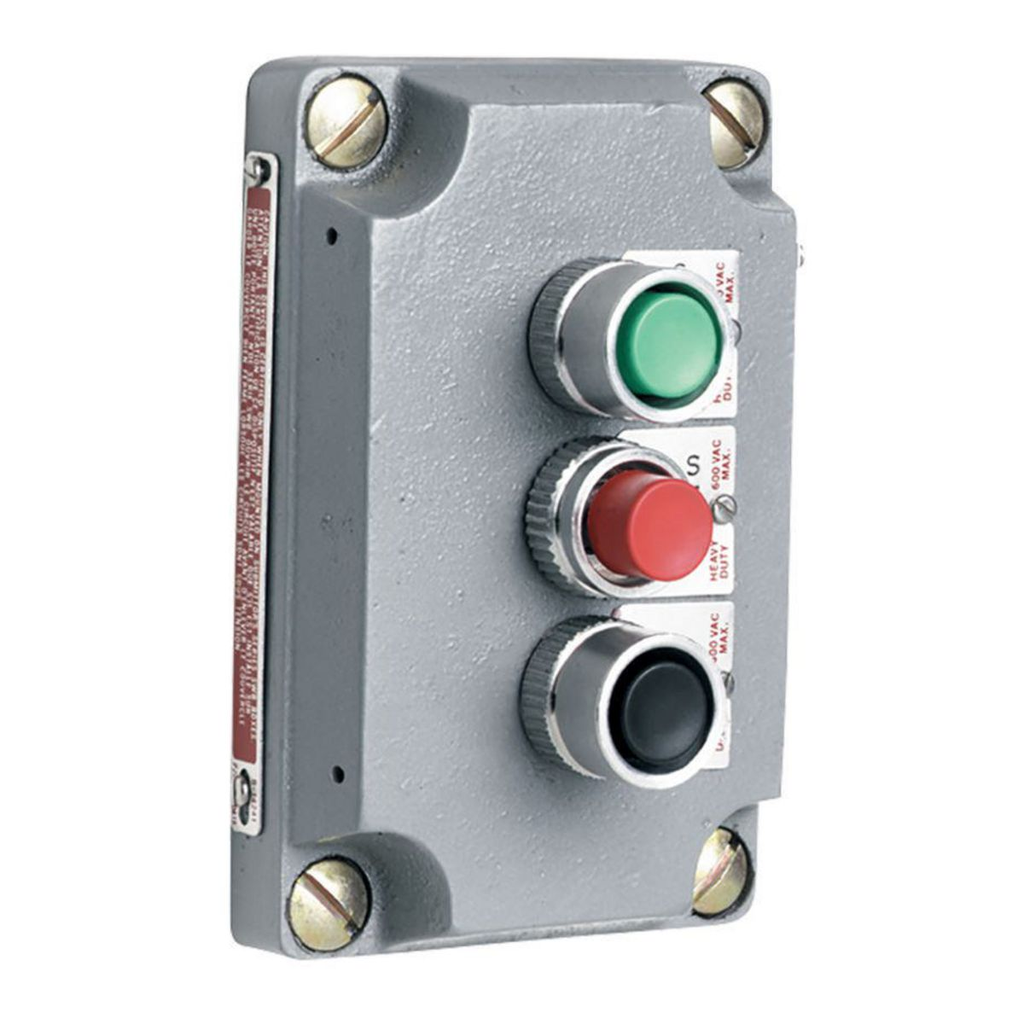

Product image for Killark XCS-0A8 XCS Series- Cover with Device - Momentary Contact Three Mini Red-Green-Black Push Buttons
Email

Killark XCS-0A8 XCS Series- Cover with Device - Momentary Contact Three Mini Red-Green-Black Push Buttons

Manufacturer: Killark | Catalog # XCS-0A8 | Cooper Electric Part # 1206487
$787.14/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
XCS Series- Cover with Device - Momentary Contact Three Mini Red-Green-Black Push Buttons

Technical Information

Action
SP
Actuator
Momentary push buttons
Amperage
10 Amp
Applications
For Use in Hazardous Locations
Contact Configuration
2 NO, 2 NC
Contact Rating
60 A Inrush at 120 VAC, 30 A Inrush at 240 VAC, 15 A Inrush at 480 VAC, 12 A Inrush at 600 VAC, 6 A Breaking at 120 VAC, 3 A Breaking at 240 VAC, 1.5 A Breaking at 480 VAC, 1.2 A Breaking at 600 VAC, 10 A Carrying at 120 VAC, 10 A Carrying at 240 VAC, 10 A Carrying at 480 VAC
Frequency
50/60 Hz
Material
Aluminum
Number of Poles
3-3 Pole
Operator Type
Momentary
Size
4-5/8" H x 3" W x 1-1/16" D
Type
Non-Reversing
Voltage
600 VAC

Manufacturer Information

Brand
Killark Electric
Sub Brand
Killark

General Product Info

12-Digit UPC
783936890463
Color
Black/Green/Red
GTiN
00783936890463
Product UPC
78393689046

Dimensions

Height
5-1/2 Inch
Length
6.88 Inch
Width
3.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Copper free cast aluminum alloy.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Push button, selector switches and pilot light operator bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
