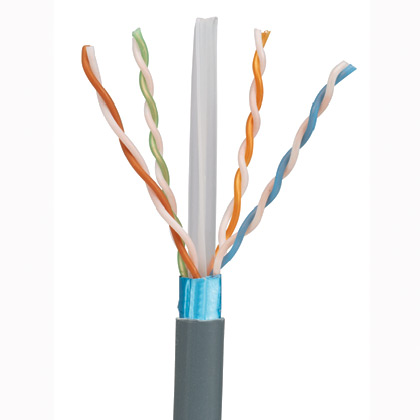

Product image for Panduit PFP6X04WH-UG TX6A™ Copper Cable, Cat 6A, 23 AWG, F/UTP, CMP, White
Email

Panduit PFP6X04WH-UG TX6A™ Copper Cable, Cat 6A, 23 AWG, F/UTP, CMP, White

Manufacturer: Panduit Corp | Catalog # PFP6X04WH-UG | Cooper Electric Part # 1203950
$2,495.79/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Product Brochure
The TX6A™ Cat 6A F/UTP Plenum copper cable is constructed of 23 AWG copper conductors with FEP insulation. The copper conductors are twisted in pairs, separated by a cross divider and covered by an overall metallic shield and a flame retardant PVC (CMP), Green jacket. Packaged 1000ft/305m on a reel

Technical Information

Applications
Indoor
Conductor Material
Copper
Conductor Size
23 AWG
Conductor Type
Solid
Insulation Material
Other
Max Operating Temperature
167 degrees F
Min Operating Temperature
-20 degrees C
Number of Conductors
4
Number of Pairs
4
Performance Level
Category 6A
Temperature Rating
NA ??degrees F
Type
U/UTP

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Net®

General Product Info

12-Digit UPC
074983950744
Color
White
Construction
F/UTP
Environment
Indoor
GTiN
00074983950744
Jacket Material
CMP
Product UPC
07498395074
UNSPSC
26121634
Weight
42 ft 1000 lb

Dimensions

Length
1000 Foot
Outer Diameter
0.29 in
Outside Diameter
NA mm
Overall Length
1000 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
