Ocal LBD4400-G 1-1/4" PVC-Coated Ferrous Iron Rigid 90° Pulling Elbow - Gray

Manufacturer: Ocal / Thomas & Betts | Catalog # LBD4400-G | Cooper Electric Part # 1203704
$664.96/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Coated Pulling Elbow, 90 Degree Bend, With Pressure-Sealing Sleeves Seal Connections, Pipe Size 1-1/4 Inch/35 Metric, Gray Iron, Dark Gray

Technical Information

Applications
Used in Rigid Conduit to Act as Pull Outlets for Conductors
Material
Iron
Size
1 1/4 in
TC Connection
90 Degree Bend
Trade Size
1-1/4 Inch; 35 mm
Type
90

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
704508391409
Color
Gray
Finish
PVC Coated
GTiN
00704508391409
Product UPC
70450839140
Features
  • Cover openings on an angle, permitting conductors to be pulled straight through hubs from either direction
  • Pressure-sealing sleeves seal connections
  • Taper threaded hubs with integral bushings
  • Domed cover permits easy conductor bends, relieves strain on insulation
  • Shipped complete with elbow, cover and cover screws.
  • Nominal .040 in. (40 mil) PVC coating bonded to exterior
  • Coated with a nominal .002 in. (2 mil) blue urethane on both interior and exterior
Application
  • Provide access to wiring for maintenance and future system changes
  • Provide for conductor entrance to motors
  • Make 90 degree bends in conduit system, allowing straight pull in either direction
  • Act as pull outlets especially for conductors that are stiff due to large size or type of insulation
  • Provide for conduit service entrance to buildings
Notes

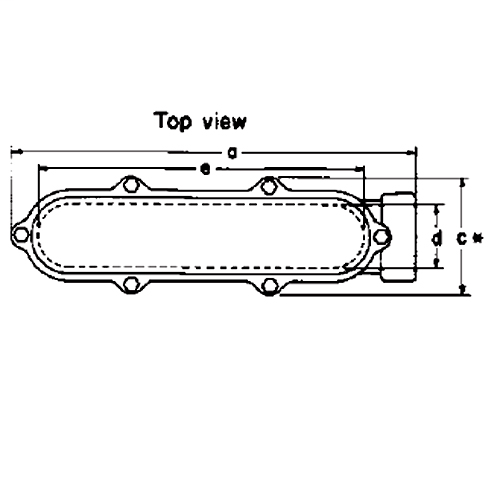

  • Dimensional values are prior to PVC coating
  • Metric size designator (ANSI C80.1-1994)
  • Ratings are prior to PVC coating
