Product image for SOL IS-UNITY-DP INTERFACE CARD
Email

SOL IS-UNITY-DP INTERFACE CARD

Manufacturer: Sola Electric | Catalog # IS-UNITY-DP | Cooper Electric Part # 1202399
$941.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

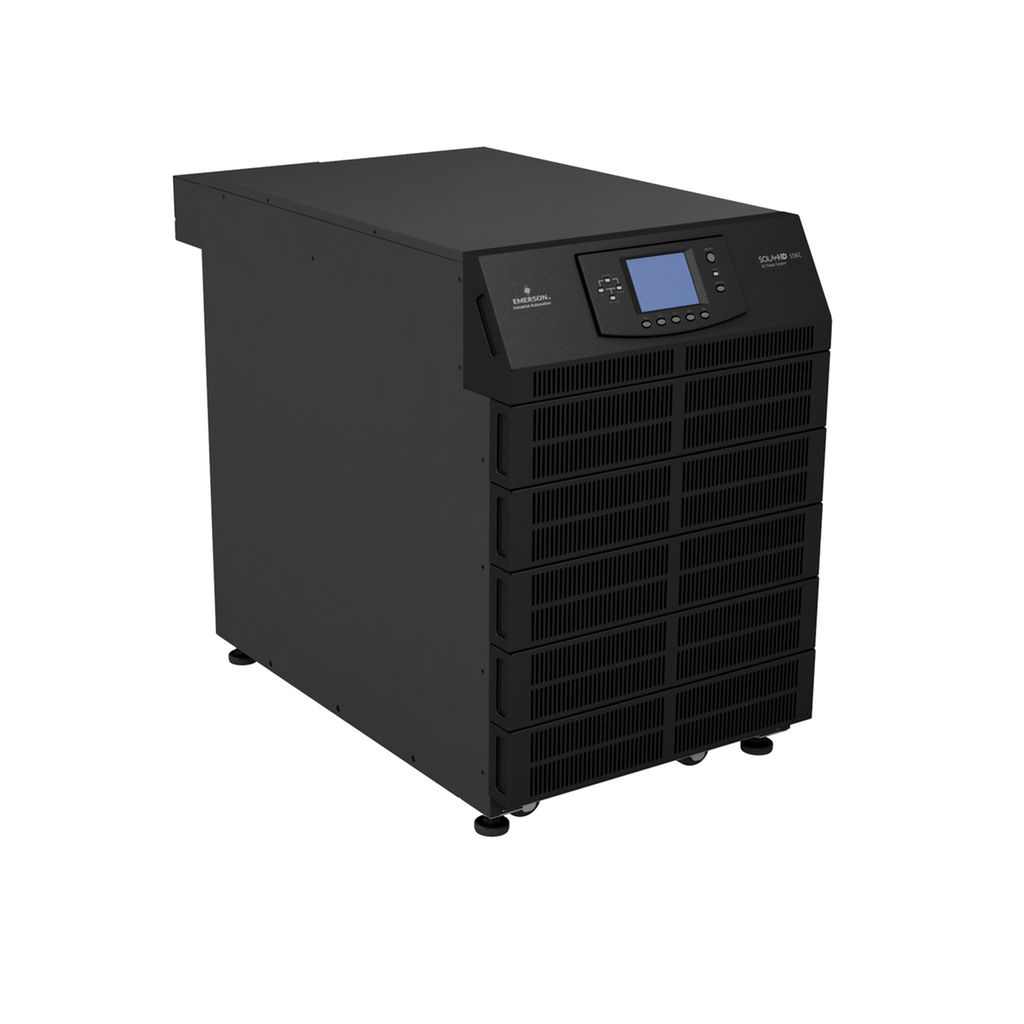

S5KC Modular Series On-Line UPSs are scalable from 5 to 20 kVA. Designed to be fully configured, tested and shipped in the configuration you need, they have the ability to be upgraded in the field to either higher VA ratings (up to 20 kVA maximum), longer back-ups time or to add N+x parallel redundancy (to provide a fault-tolerant group of power modules and controls). This fault-tolerant system uses intelligent power and battery modules.

Technical Information

Applications
For Providing Web Access, Environmental Sensor Data, Alarm Notifications and Third-Party Interface Protocols for Vertiv Equipment and Integrates with Life Services, Trellis and Liebert Nform
Number of Phases
1 Phase
Number of Ports
4
Power Rating
3.6 W
Temperature Rating
0 degrees C to 40 degrees C
Type
1-Phase

Manufacturer Information

Brand
Emerson Electric Co.
Sub Brand
SolaHD™, Liebert® IntelliSlot®

General Product Info

12-Digit UPC
783472890354
Product UPC
78347289035
Used With
Ethernet or 485 Serial Networks or Both
Features
  • cULus, CE, RoHS, Federal Comminucations Commission
  • Module level redundancy provides multiple layers of protection to ensure your machine has the power it needs to run safely with no single point of failure, critical loads continue to run on conditioned battery power even if a system component malfunction
  • An industry leading 0.9 power factor keeps machines performing flawlessly when running on battery power
  • Superior overload capabilities deliver conditioned power during temporary power anomalies without unnecessarily transferring to and from bypass power
  • Independently controlled maintenance bypass is designed to provide maximum system availability to critical equipment by allowing transfer of connected equipment to an alternate power path. The UPS can then be turned Off and removed from service with no i
  • True on-line double conversion with a large input voltage range (low line transfer down to 110 Vac) isolates sensitive equipment from power fluctuations while minimizing transfers to increase battery life
  • qualified UPS models UPS products meeting the EPAs requirements use an average of 35% less energy than their standard counterparts
  • To enhance the availability and trouble-free operation, every pre-configured S5KC UPS arrives standard with one IS-UNITY-DP communications card installed. This enables you to take advantage of the remote monitoring and diagnostic service available with y
  • Start-up services available, contact your local sales representative for details
