SQUARED XB5AW73731B5 Illuminated do

Manufacturer: Square-D / Schneider | Catalog # XB5AW73731B5 | Cooper Electric Part # 1201942
$90.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

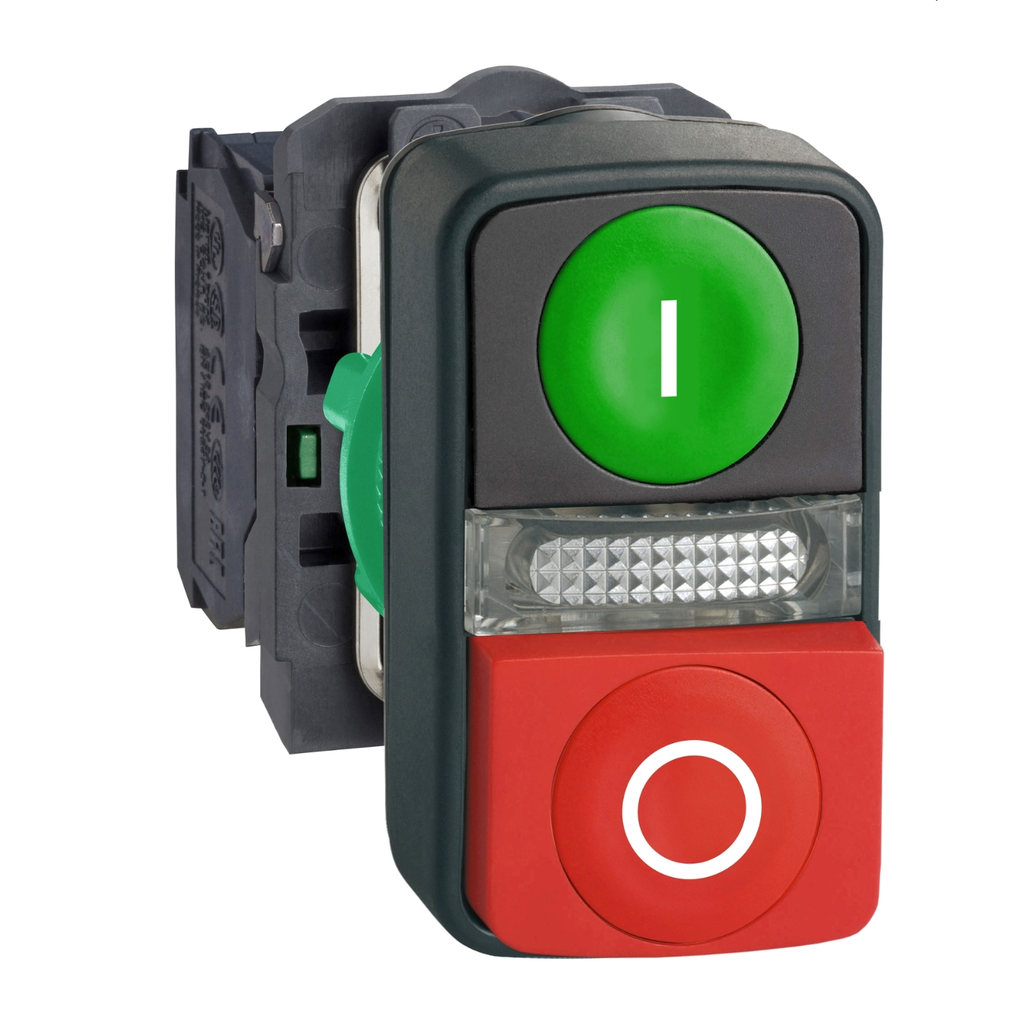

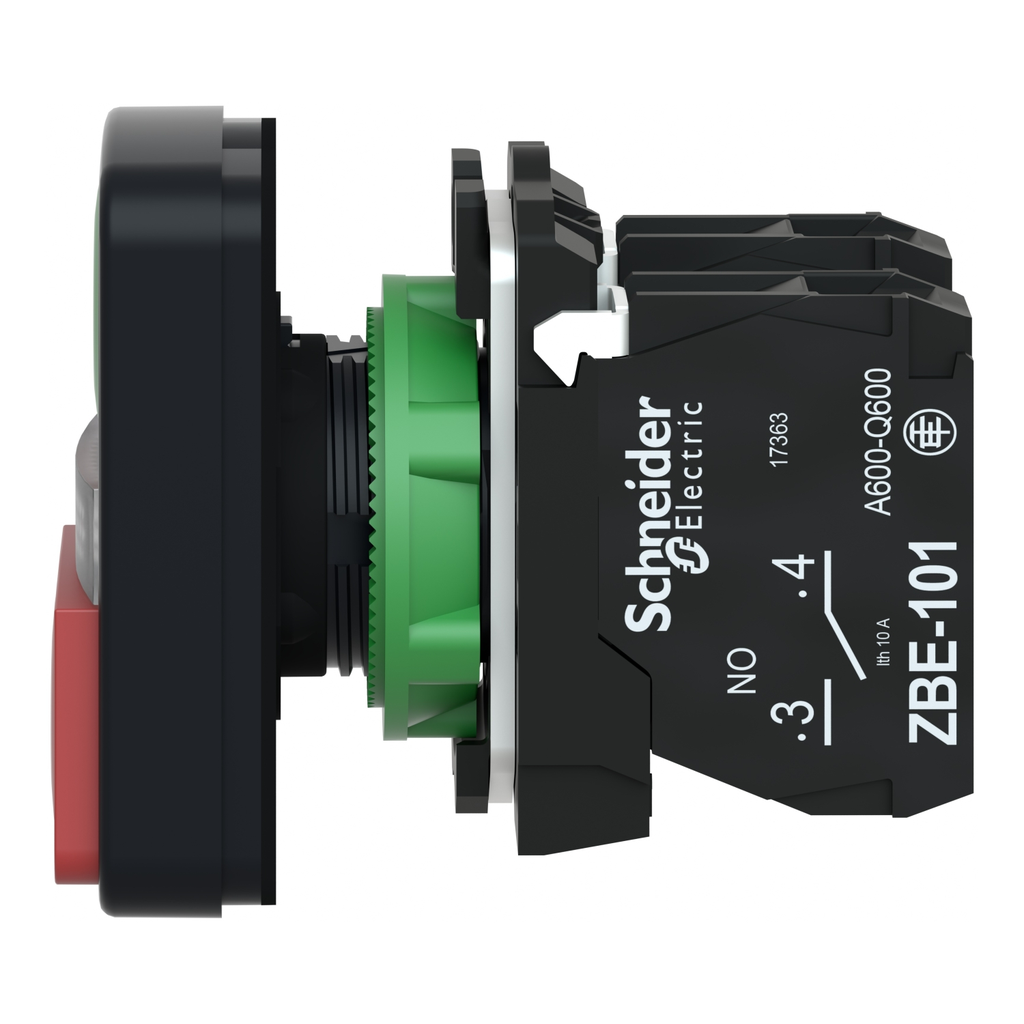

This Harmony XB5, double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Information

Action
Slow-break
Actuator
Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons - 1 central pilot light
Amperage
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Bezel Material
Plastic

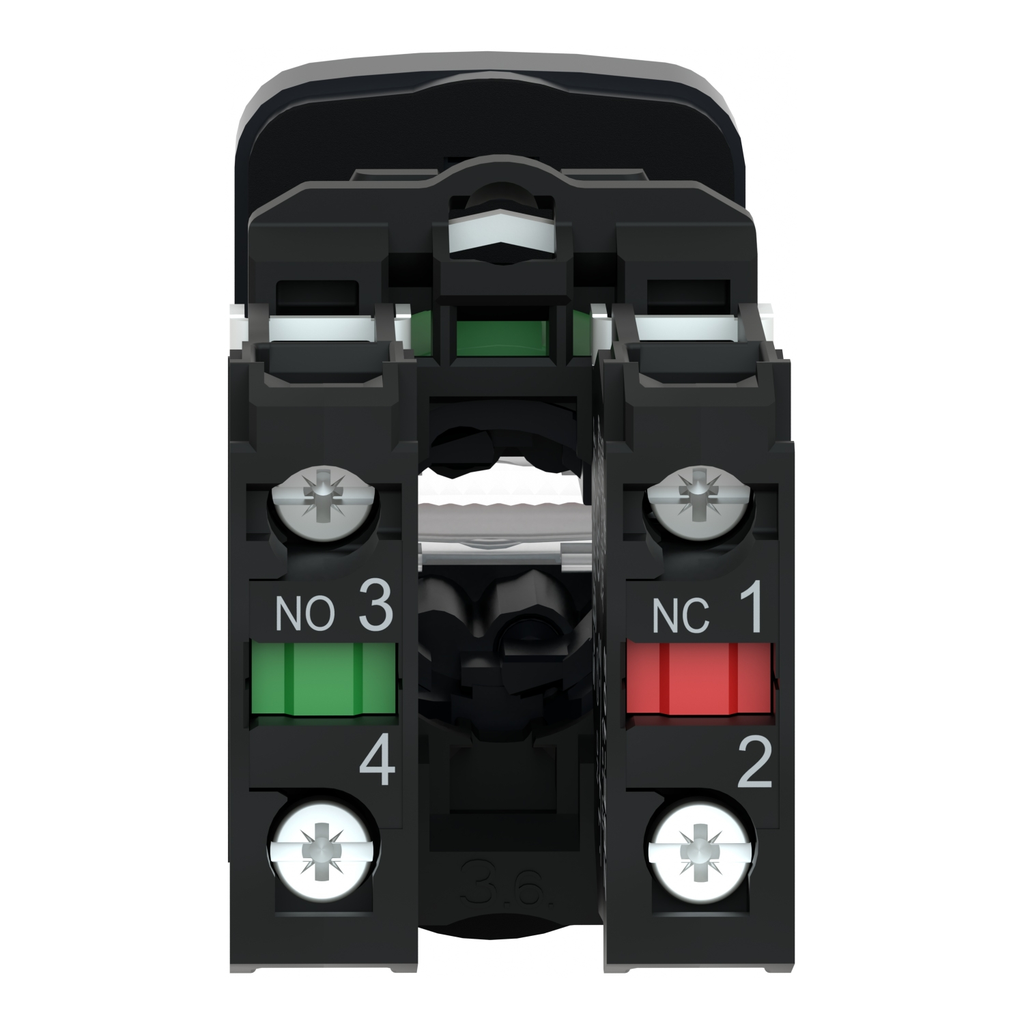

Contact Configuration
1 NO + 1 NC
Contact Material
Silver Alloy
Current
18 mA
Enclosure
NEMA 13-NEMA 4X
Head Type
Standard
Indicator
INTEGRAL LED,PROTECTED LED,YELLOW
Light Source
Protected LED
Net Weight
0.066 kg
Operating Force
3.5 N
Operating Temperature
-40-70 Adegrees C
Size
2.32 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1-SPRING TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SPRING TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Illuminated double-headed push-button
Voltage
24 Volt AC/DC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB5

General Product Info

12-Digit UPC
785901965572
Color
Green || Red
GTiN
03389119043540
Product UPC
78590196557
Weight
0.066 kg

Dimensions

Depth
59 mm
Height
50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBY2101
  • ZB5AZ905
Spare Part Products
  • ZB5AZ009
  • ZBVB1
  • ZB5AW7L3741
