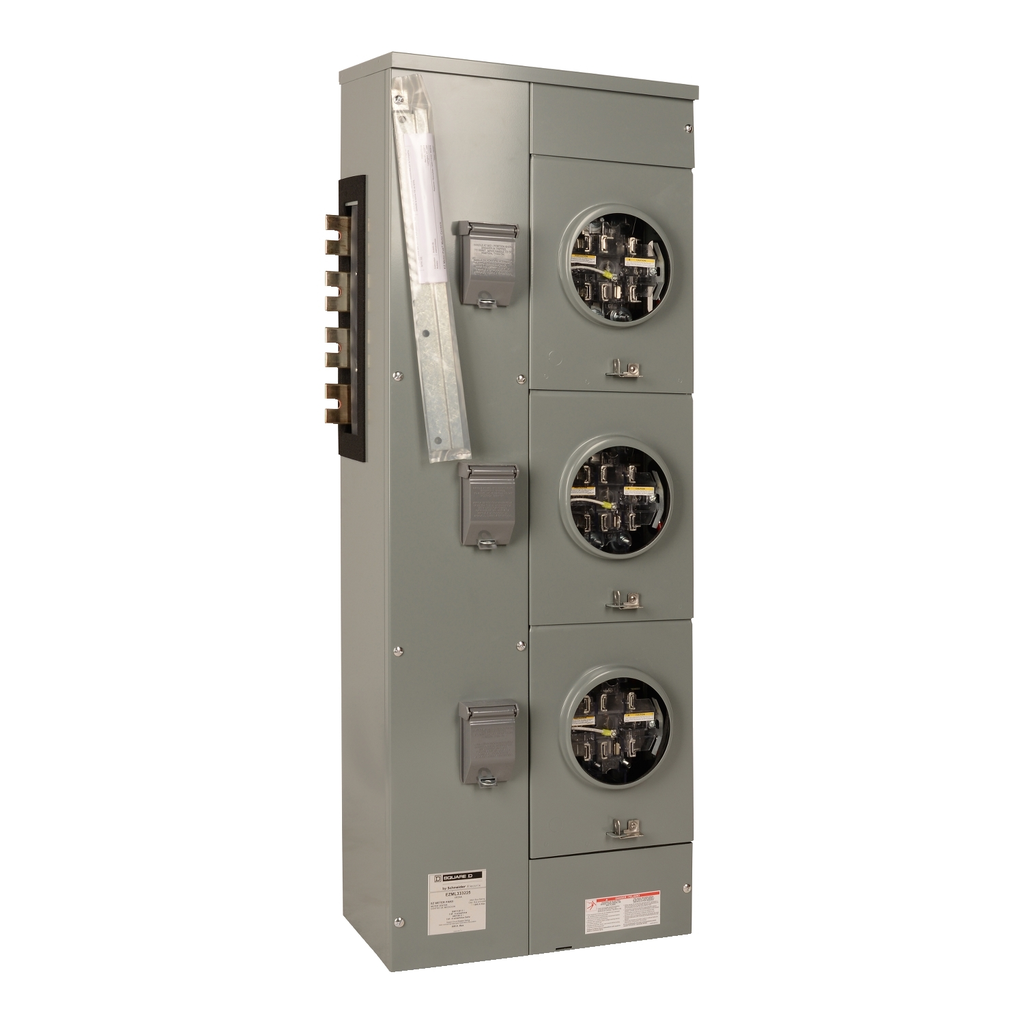

Product image for Square D EZML333225CU 240/120 VAC Delta 208 Star/120 VAC 225 Amp 3-Phase 4-Wire Ringless Meter Center Branch Unit
Image thumbnail 0
Image thumbnail 1
Email

Square D EZML333225CU 240/120 VAC Delta 208 Star/120 VAC 225 Amp 3-Phase 4-Wire Ringless Meter Center Branch Unit

Manufacturer: Square-D / Schneider | Catalog # EZML333225CU | Cooper Electric Part # 120189
$12,395.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 3 seven jaw sockets for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 1200 A copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Technical Information

Amperage
225 Amp
Applications
4-wire
Bus Rating
1200 A
Current
225 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Line Rated Current
225 A
Material
Copper: Busbar
Mounting Type
Surface
NEMA Size
3R
Number of Jaws
7 With Jaw Release
Number of Phases
3 Phase
Size
9.44 in
Type
Meter Center Branch Unit
Voltage
208Y/120 Volt AC-240/120 Volt DELTA AC

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901546597
GTiN
00785901546597
Product UPC
78590154659

Dimensions

Depth
9.44 Inch
Height
53.06 Inch
Warranty Length
18 mth
Width
19.44 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 29007
  • 5J
  • EZM125QOA
  • EZM3CORNER
  • EZM3ELBOW
  • EZM3EXT
  • EZM3EXT6
  • EZM3TRANL
  • EZM3TRANR
  • EZM72MC
  • EZMCAP
  • EZMSCAP
  • RSG4
