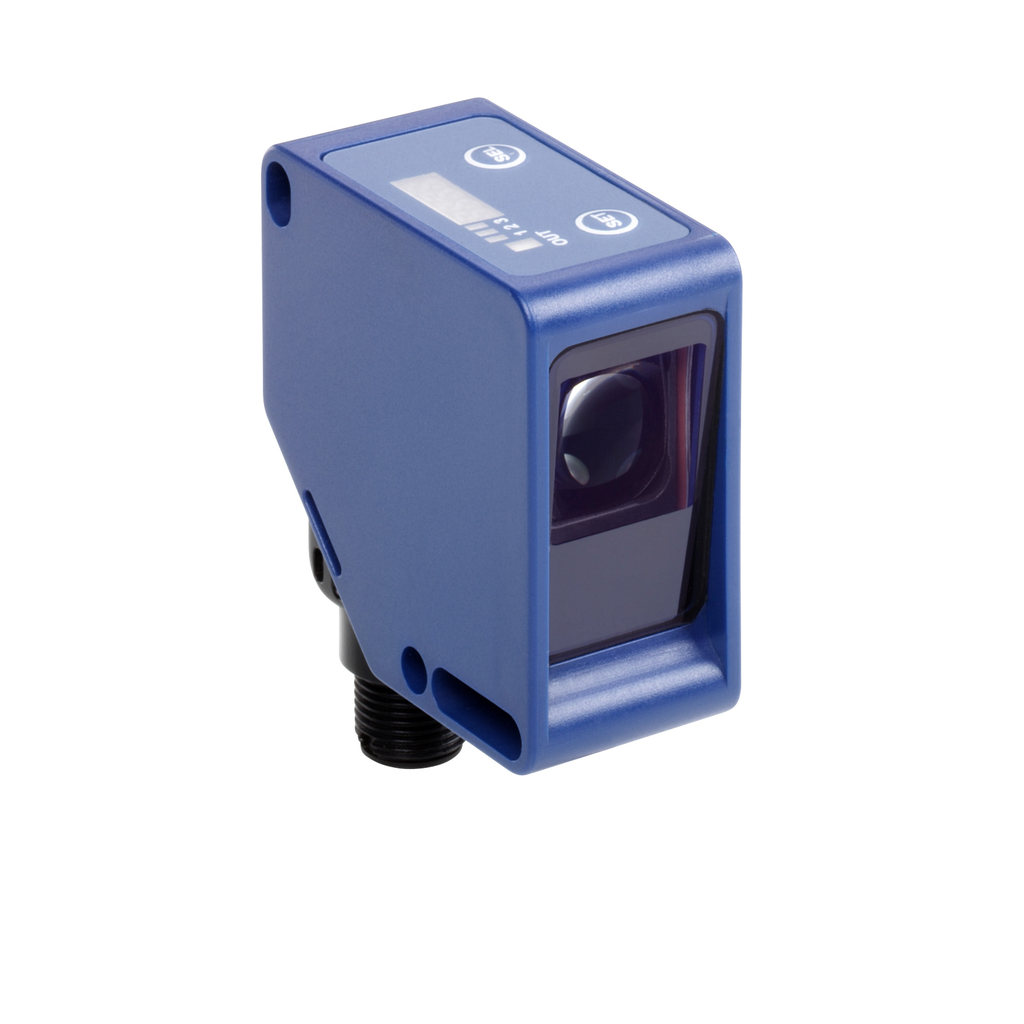

Product image for TES XUKC1PSMM12 Photoelectric sensors XU, XUK, diffuse, color, Sn 20 mm, 12...24 VDC, M12
Image thumbnail 0
Image thumbnail 1
Email

TES XUKC1PSMM12 Photoelectric sensors XU, XUK, diffuse, color, Sn 20 mm, 12...24 VDC, M12

Manufacturer: TES Electric | Catalog # XUKC1PSMM12 | Cooper Electric Part # 1198437
$1,308.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This photo-electric sensor is part of the XU Application range. . This sensor recognises colours for sorting or checking parts. It is therefore recommended for packaging applications. DC supply, solid-state output. M8 connector, 3-pin. Diffuse system, white LED transmission, with a RGB color processing. Sensing distance 20mm. The detection distance is related to object degree of reflection.

Technical Information

Amperage
<= 100 MA REVERSE POLARITY, OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
COLOUR
Current
60 mA
Enclosure
ABS,IP65 CONFORMING TO IEC 60529
Enclosure Material
ABS Plastic
Material
Plastic
Net Weight
0.085 kg
Operating Cycles
<= 1500 HZ
Operating Temperature
-10-55 Adegrees C
Output
1 NO,PNP,DISCRETE,SOLID STATE
Sensing Range
20-20 MM Ø 4 MM
Size
25 MM,50 MM,50 MM
Storage Temperature
-20-70 degrees C
TC Connection
1 MALE CONNECTOR M12 ADJUSTABLE THROUGH 90A, 8 PINS
Type
APPLICATION PACKAGING,COMPACT 50 X 50,DIFFUSE,PHOTO-ELECTRIC SENSOR
Voltage
12...24 Volt DC

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
389110702128
GTiN
03389110702125
Product UPC
38911070212
Weight
0.19 lb

Dimensions

Depth
50 mm
Height
50 mm
Warranty Length
18 mth
Width
25 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CULus
Country of Origin
Italy
