Product image for Burndy YAZ382NT38FX CU HYLUG 700KCMIL
Image thumbnail 0
Image thumbnail 1
Email

Burndy YAZ382NT38FX CU HYLUG 700KCMIL

Manufacturer: Burndy | Catalog # YAZ382NT38FX | Cooper Electric Part # 1197807
$83.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
Copper Compression Lug, 2 Hole w/ Inspection Window, 535.3 Flex, 3/8" Stud, 1" Stud Hole Spacing, Long Barrel, Tin Plated.

Technical Information

Applications
For Flex Conductors
Cable Size
535.3 KCMIL, 500 KCMIL Flex, 1325/24, 300 SQ-MM For Class 5 Conductor
Color Coding
Pink
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.375 in
Type
YAZ-2-NTFX, Long Barrel Narrow Tongue
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810166116
Finish
Tin Plated
GTiN
00781810166116
Product UPC
78181016611

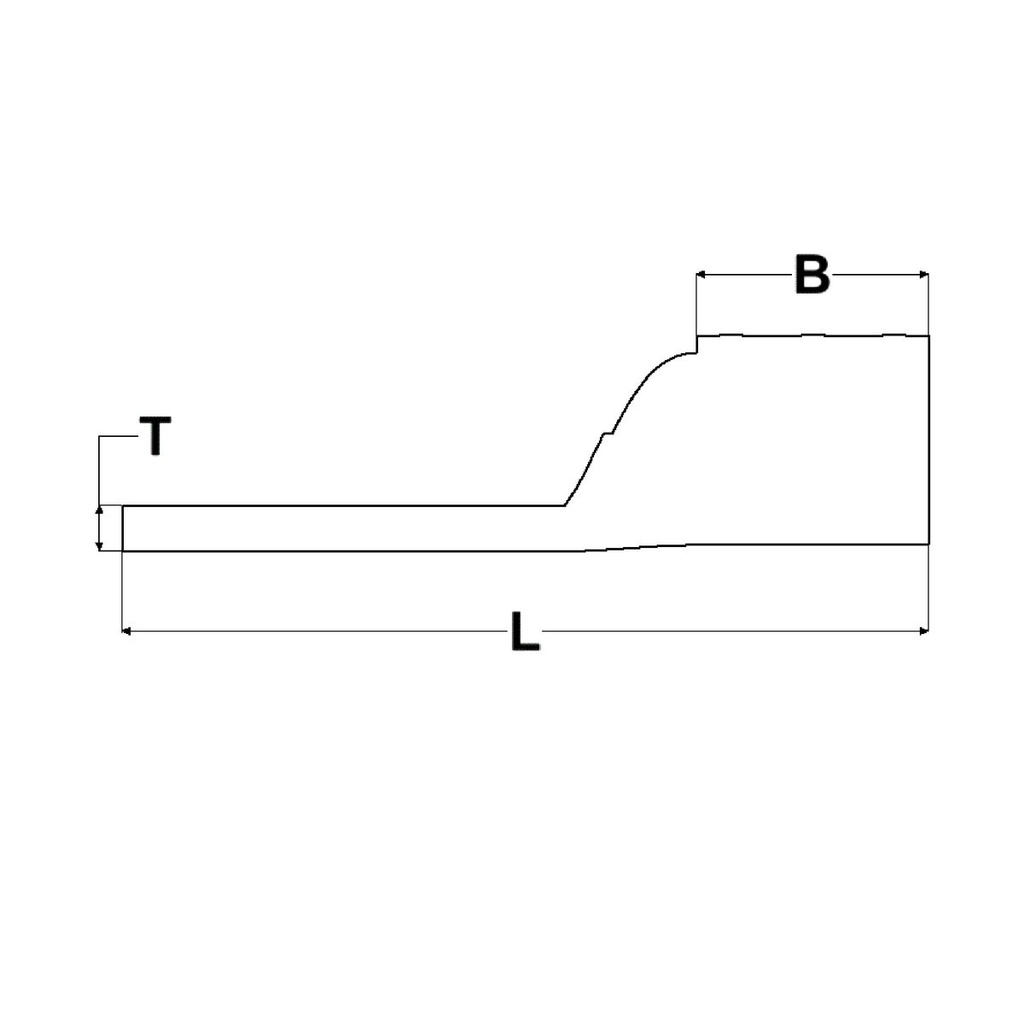

Dimensions

Height
1-1/4 Inch
Length
5.72 Inch
Overall Length
5.72 in
Width
1.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Die Index: L99, Finish: Electro-Tin Plated, Wire Strip Length: 2-7/8 IN, Tongue Angle: Straight, Color Code: Pink, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U38XRT Die, (4), Y46 Tool, U38XRT Die With PUADP-1 Adapter, (4), Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2)
