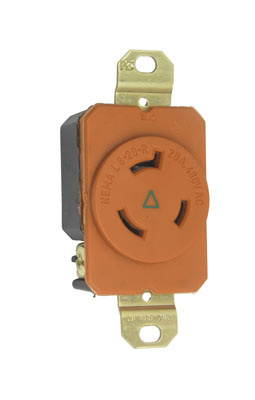

P&S IGL820R TURNLOK RECP SINGLE 3WI

Manufacturer: Pass & Seymour / Legrand | Catalog # IGL820R | Cooper Electric Part # 1196208
$62.56 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Turnlok® Receptacle Single 3-Wire 20A 480V

Technical Information

Amperage
20 Amp
Applications
Industrial
Indoor Outdoor
Indoor
Material
Nylon
NEMA
L8-20
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Isolated Ground,Locking
Size
4.18x1.68x2
Type
Single Receptacles
Voltage
480 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007282108
Color
Orange
GTiN
00785007282108
Product UPC
78500728210
UNSPSC
39121403

Dimensions

Depth
1.19 Inch
Height
2.29 Inch
Warranty Length
1 yr
Width
1.61 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
  • 140 joules of energy absorption in each of the three modes.
  • 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
  • 1 filtering capacitor for 7 to 1 average noise reduction.
  • Nominal let-through (suppressed) voltage in all 3 modes, 500V.
  • LED indicator light.
  • Response time less than 1 nanosecond for unmounted MOV.
  • Overcurrent protection in all 3 modes.
  • Electronic components potted for electrical, mechanical and thermal stability.
  • Thermal protection in all 3 modes.
  • Leakage current: 0.5 mA at 25: C/120VAC.
  • 3 18mm super MOVs to suppress transients in all modes : equally.
  • Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
  • Varistor voltage: 150V RMS.
  • Back and side wire capability including ground terminal.
  • Operating temperature: -40: C to 85: C(-40: F to 185: F)
  • Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Certifications
  • cULus Listed
