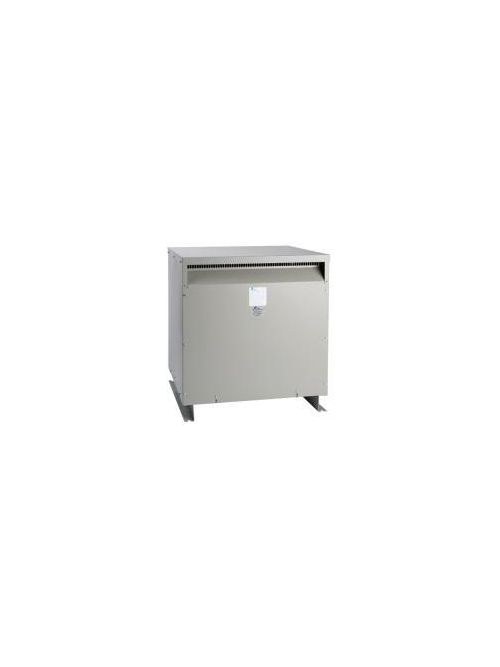

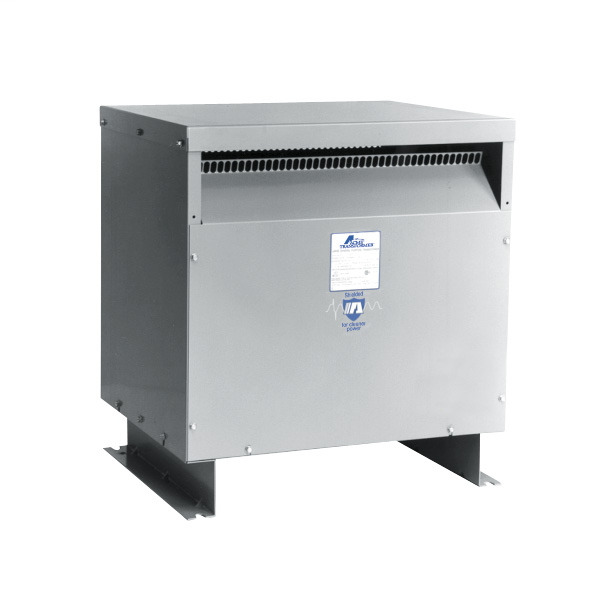

Actuant TP533123S 3 Phase 60 Hz 480 Delta Primary Volt 208y-120 Secondary Volt Transformer

Manufacturer: Acme Electric | Catalog # TP533123S | Cooper Electric Part # 119340
$1,853.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning
480 Delta Primary Volts - 208Y/120 Secondary Volts - Acme three phase low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Technical Information

Connection Type
Lugs/Bolt Down Terminal
Enclosure
NEMA 2 Steel
Frequency
60 Hz
Insulation Material
220 DEG C Class R
Mounting Type
Floor
Number of Phases
3 Phase
Primary Voltage
480 V
Secondary Voltage
208/120 V
Standard
ANSI,CSA,Division 2,IEEE,NEC 501-2 (b),NEC Class 1,TP-1 Compliant OSHA Compliant,UL 1561,UL Control Number 542B,UL File Number E12547V3,UL Insulation Number C3222
Temperature Rating
115 degrees C

Manufacturer Information

Brand
Acme Electric Company

General Product Info

12-Digit UPC
047503201404
GTiN
00047503201404
Product UPC
04750320140
Weight
290 lb

Dimensions

Depth
19.37 Inch
Height
25-1/2 Inch
Width
24.390 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer ? www.P65Warnings.ca.gov
Overview
  • With weather shield, UL Type 3R enclosure type 2 enclosure without weather shield
  • UL Class 220 deg C insulation system, 150 deg C rise
  • NEMA standard bus bar terminals, no special tools needed to make clearly marked connections Tap changing easily accomplished with jumpers
  • 480 Delta Primary Volts; 208Y/120 Secondary Volts; May be used on a 4 wire 480Y/207 Volt Supply; 3Ø, 60Hz
  • Extra large wiring compartment for easier installation and cooler case temperatures
  • Aluminum windings for increased insulation life, cooler operation, lower losses
  • Suitable for wall or \"trapeze\" mounting
  • All units have ground studs for use with non-metallic conduit
  • Noise and vibration isolating pads standard to assure quiet operation
  • Large permanently legible nameplates on front
