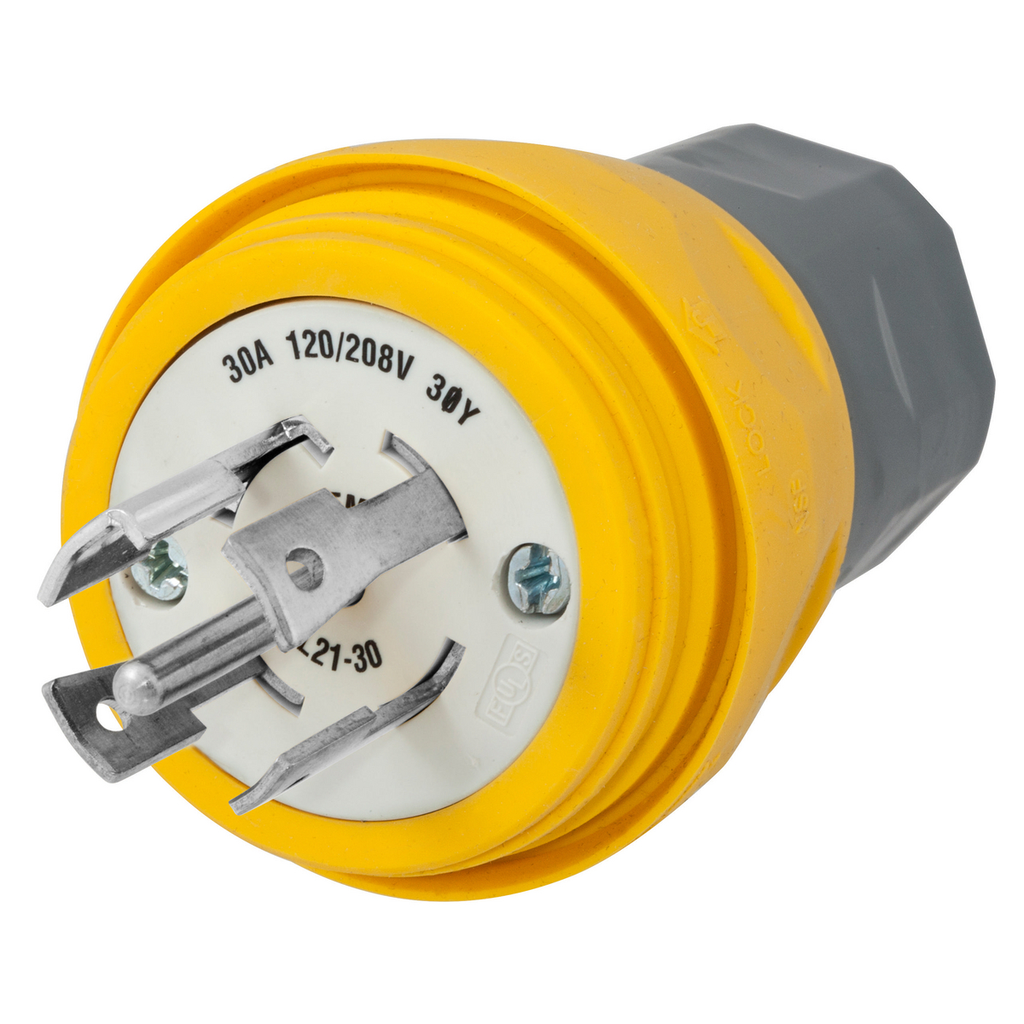

Product image for HCI HBL28W81 PLUG,W/TIGHT,3PY 30A 1
Image thumbnail 0
Image thumbnail 1
Email

HCI HBL28W81 PLUG,W/TIGHT,3PY 30A 1

Manufacturer: Hubbell Wiring Device | Catalog # HBL28W81 | Cooper Electric Part # 1192609
$85.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L21-30P, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Cord Size
3/8 - 1-1/8 in
Cord Type
Type 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S Minimum, Type 8/3 S, 8/4 S, 10/5 S Maximum
Current
30 Amp
Material
Thermoplastic
Mounting Type
Cord
NEMA
L21-30P
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

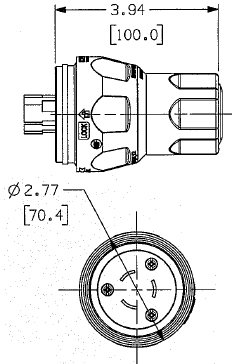

Size
2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Watertight
Voltage
120/208 Volt
Wire Count
5
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131757
Color
Yellow
Environmental Conditions
-30 C Rated per UL498 at Temperature Rise, Moisture, UV-Resistant, UV Stabilized
GTiN
00783585131757
Product UPC
78358513175

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
USA
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
