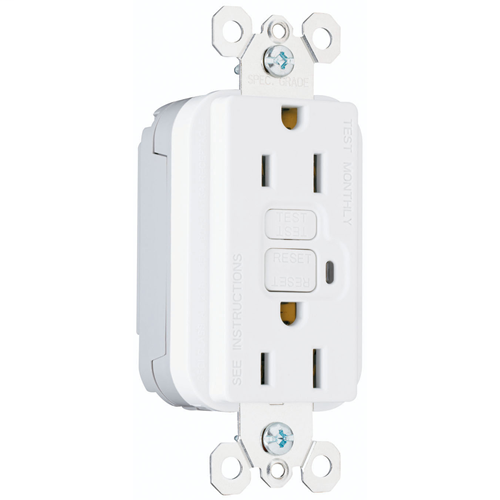

P&S PT1595NAW DISC SUB PT1597NAW

Manufacturer: Pass & Seymour / Legrand | Catalog # PT1595-NAW | Cooper Electric Part # 1192582
$43.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. This GFCI meets the requirements of the Buy American provision of the American Recovery and Reinvestment Act and provides the same protection as our traditional GFCI.

Technical Information

Amperage
15 Amp
NEMA
5-15R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007007435
Color
White
GTiN
00785007007435
Product UPC
78500700743

Dimensions

Depth
1.2 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Tri-drive screws.
  • Zinc-plated steel mounting strap.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • 10kA short circuit rating.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail Connector.
  • For covering patents, see www.legrand.us/patents.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Trip indicator light (red LED).
  • FSUL Listed (Federal Specification WC596).
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Faster, more reliable installation.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Supplied with matching TP26 nylon wall plate.
  • Dual-direction test and reset buttons.
  • Button colors match the device face.
  • GFCI works with the existing 3 wire PlugTail Connectors creating a non-feed-thru application for facility owners. At rough-in just install the same right angle connector for GFCI and receptacle openings.
  • High-impact-resistant thermoplastic construction.
  • Class A rated GFCI.
Available Options
  • NAFTA-Compliant PlugTail™ Spec Grade 15A Duplex GFCI, Light Almond
  • NAFTA-Compliant PlugTail™ Spec Grade 15A Duplex GFCI, Ivory
  • NAFTA-Compliant PlugTail™ Spec Grade 15A Duplex GFCI, Gray
