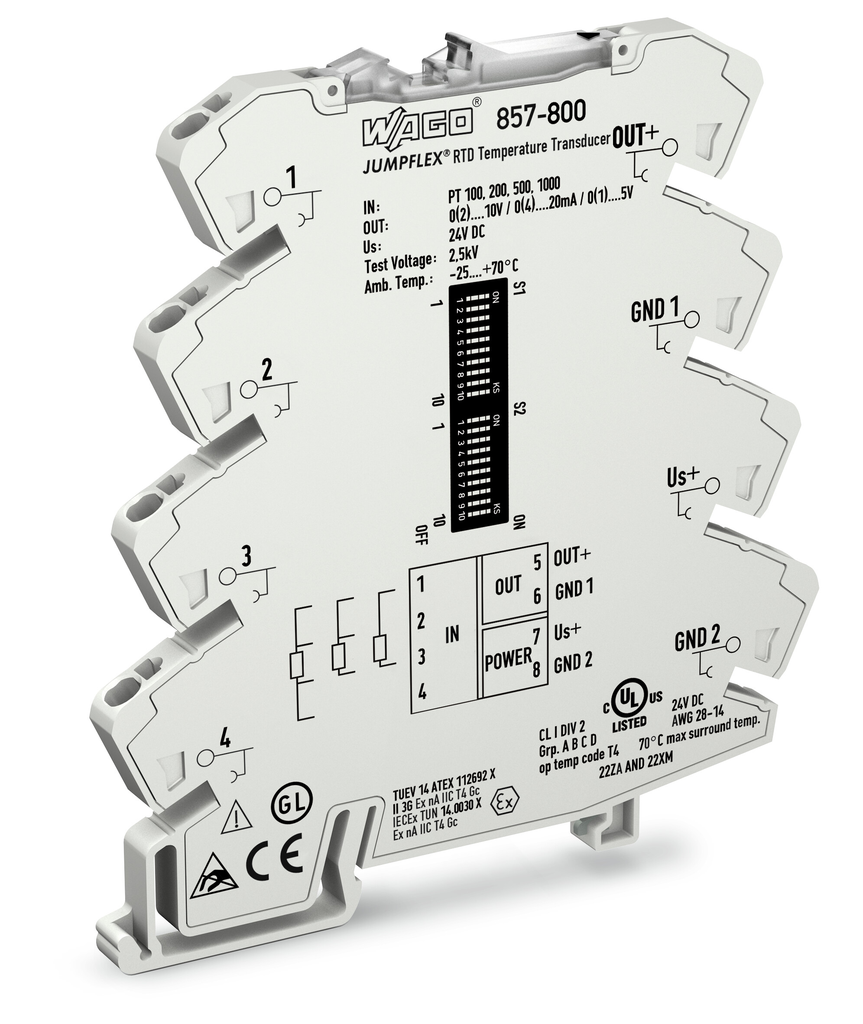

Product image for WAG 857-800 SIGNAL CONDITIONER-CONFIGURABLE, R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

WAG 857-800 SIGNAL CONDITIONER-CONFIGURABLE, R

Manufacturer: Wago | Catalog # 857-800 | Cooper Electric Part # 1191449
$492.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times

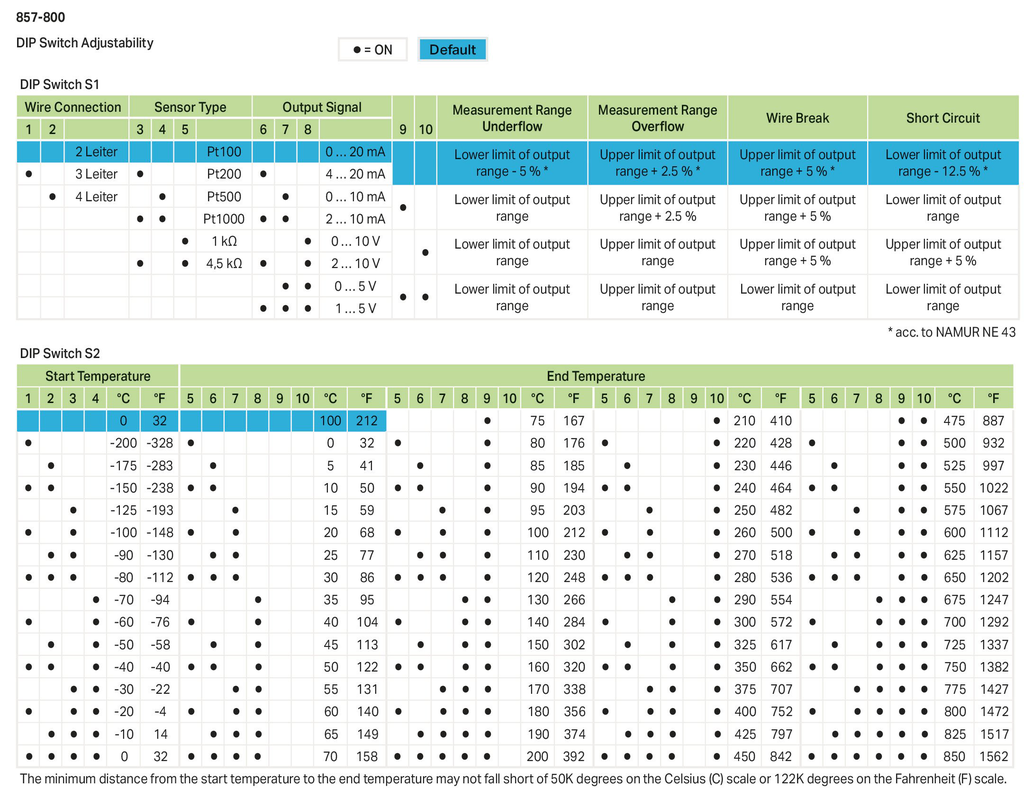

Temperature signal conditioner for RTD sensors; Current and voltage output signal; Configuration via DIP switch; Supply voltage: 24 VDC; 6 mm module width; light gray.

Technical Information

Conductor Size
14 AWG
Mounting Type
DIN-35 Rail
Strip Length
0.39 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918110659
Color
Gray
Product UPC
04491811065
Weight
35.300 g

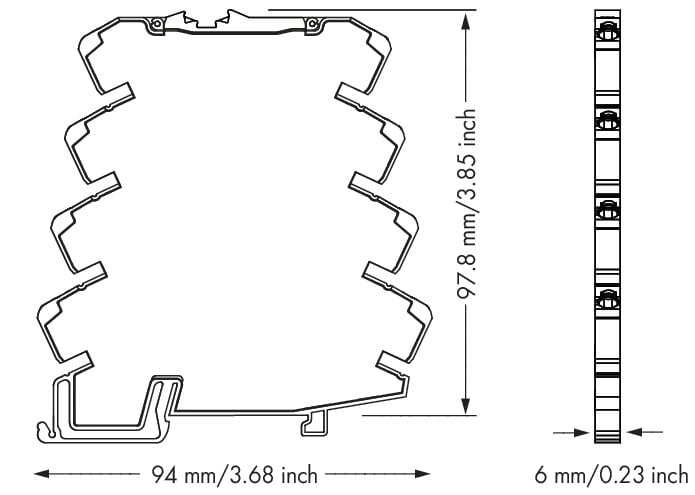

Dimensions

Depth
3.71 Inch
Height
3.71 Inch
Width
0.236 in

Certifications and Compliance

Country of Origin
Germany
Features
  • For Pt100, Pt200, Pt500 and Pt1000 sensors, as well as resistors up to 4.5 kOhm

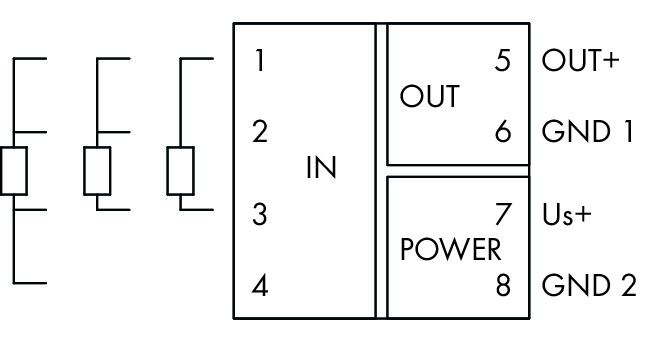

  • 2-, 3- and 4-wire connection technology
  • Calibrated measurement range switching
  • Detects a sensor wire break/short circuit
  • Detects measurement range underflow/overflow
  • Clipping capability for analog signal limitation to output end values
  • 3-way electrical isolation with 2.5 kV test voltage
Approvals
  • UL International Netherlands B.V., UL, E175199 Sec.4, UL 508
  • CNEX, CCC, 2020312310000210, CNCA-C23-01
  • Polski Rejestr Statkw, PRS, TE/2186/880590/18
  • DNV Germany GmbH, DNV, TAA00001D1, DNV-CG-0339,Aug.2021
  • Bureau Veritas S.A., BV, 40179_B0, Rules for class. of Steel Ships
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00144/19, TP TC 012/2011
  • WAGO GmbH & Co. KG, UKEx, WAGO22UKEX004X, EN 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC_Certificate_RU_C-DE.AM02.B.00115_19, TP TC 020/2011
  • TUEV Nord Cert GmbH, IECEx, IECEX_TUN_14.0030_X, IEC 60079-0
  • TUEV Nord Cert GmbH, ATEX, TV_14_ATEX_112692_XII 3 G Ex nA IIC T4 Gc, EN 60079-0
  • Underwriters Laboratories Inc., UL, E198726, ANSI/ISA 12.12.01
