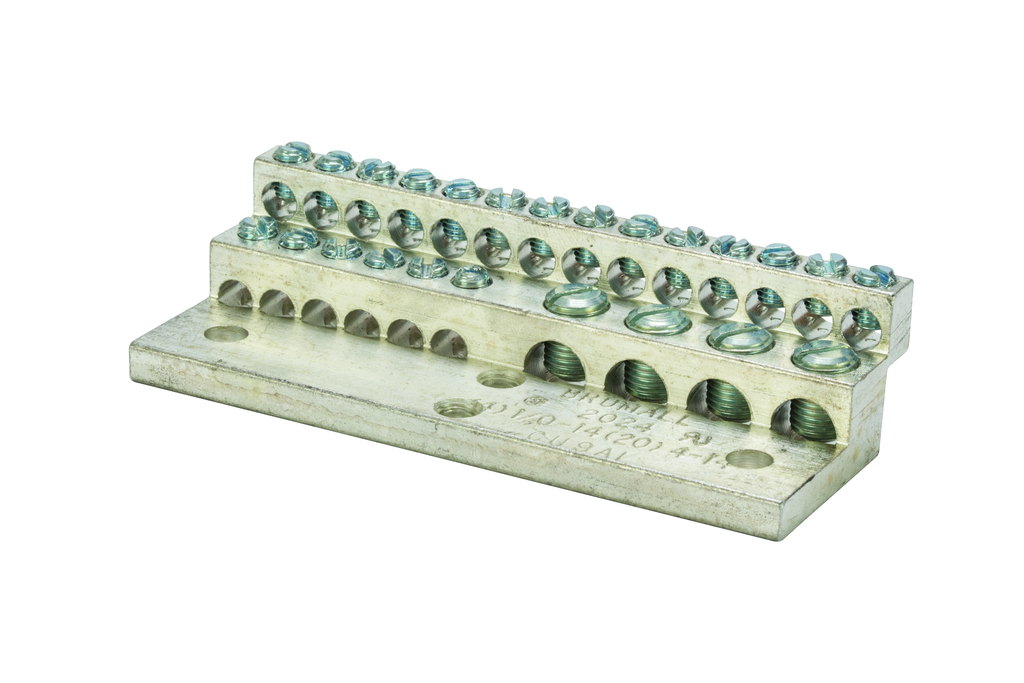

NSI 2024 Neutral Bar Stacked 24 Cir

Manufacturer: NSi | Catalog # 2024 | Cooper Electric Part # 1189719
$3,646.51/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
225A Stacked Neutral Bar, 4-14 AWG 20 Circuits, 1/0-14 AWG 4 Circuits

Technical Information

Applications
Wire Termination
Conductor Material
Aluminum
Conductor Size
14-1/0 AWG
Material
Aluminum
Max Temperature
90 degrees C
Size
L=4.332 - H=1.025 - W=1.687 IN
Type
Neutral Bars
Voltage
600 Volt
Wire Size
14-0 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381008305
Finish
Tin Plated
GTiN
00662381008305
Product UPC
66238100830

Dimensions

Height
1.025 Inch
Length
4.332 Inch
Warranty Length
1 yr
Width
1.687 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Multiple combination connectors are made from aluminum and are tin-plated for low contact resistance
  • Suitable for use with both copper and aluminum conductors
  • Each connector contains a combination of 1/0-14 awg and 6-14 awg wire holes
  • Economical and compact due to innovative design and hole spacing
  • Dual rated for use with aluminum and copper cables
Certifications and Standards
  • CSA
  • UL Recognized
