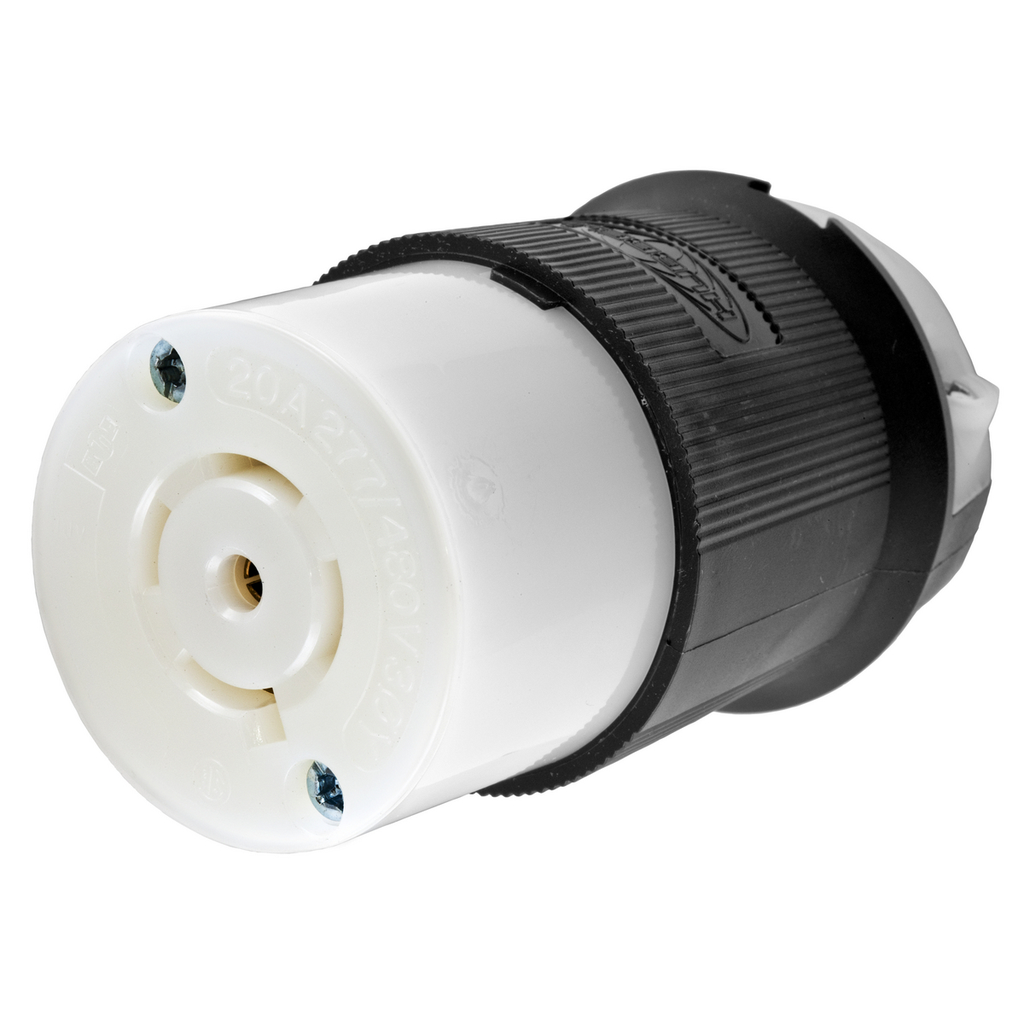

Product image for Hubbell HBL2523 20 Amp 277/480 Volt 4-Pole 5-Wire NEMA L22-20R Black and White Locking Connector Body
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL2523 20 Amp 277/480 Volt 4-Pole 5-Wire NEMA L22-20R Black and White Locking Connector Body

Manufacturer: Hubbell Wiring Device | Catalog # HBL2523 | Cooper Electric Part # 118614
$56.17/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
89 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure

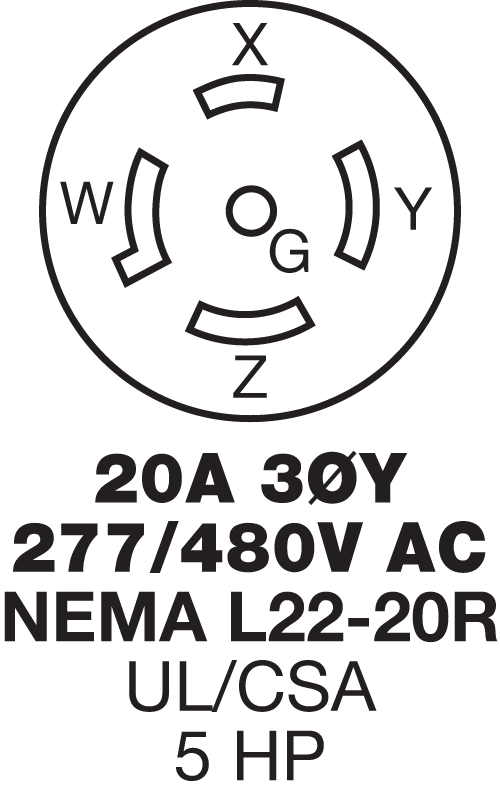

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non-Grounding, NEMA L22-20R, Screw Terminal , Black and White Nylon.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Connection Type
Pressure Screw
Current
20 Amp
Material
Composite
NEMA
L22-20R
Number of Conductors
5
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Ports
4
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Female, Standard
Voltage
277/480 Volt
Wire Count
4,5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585038605
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585038605
Product UPC
78358503860
Weight
0.40 lb

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
