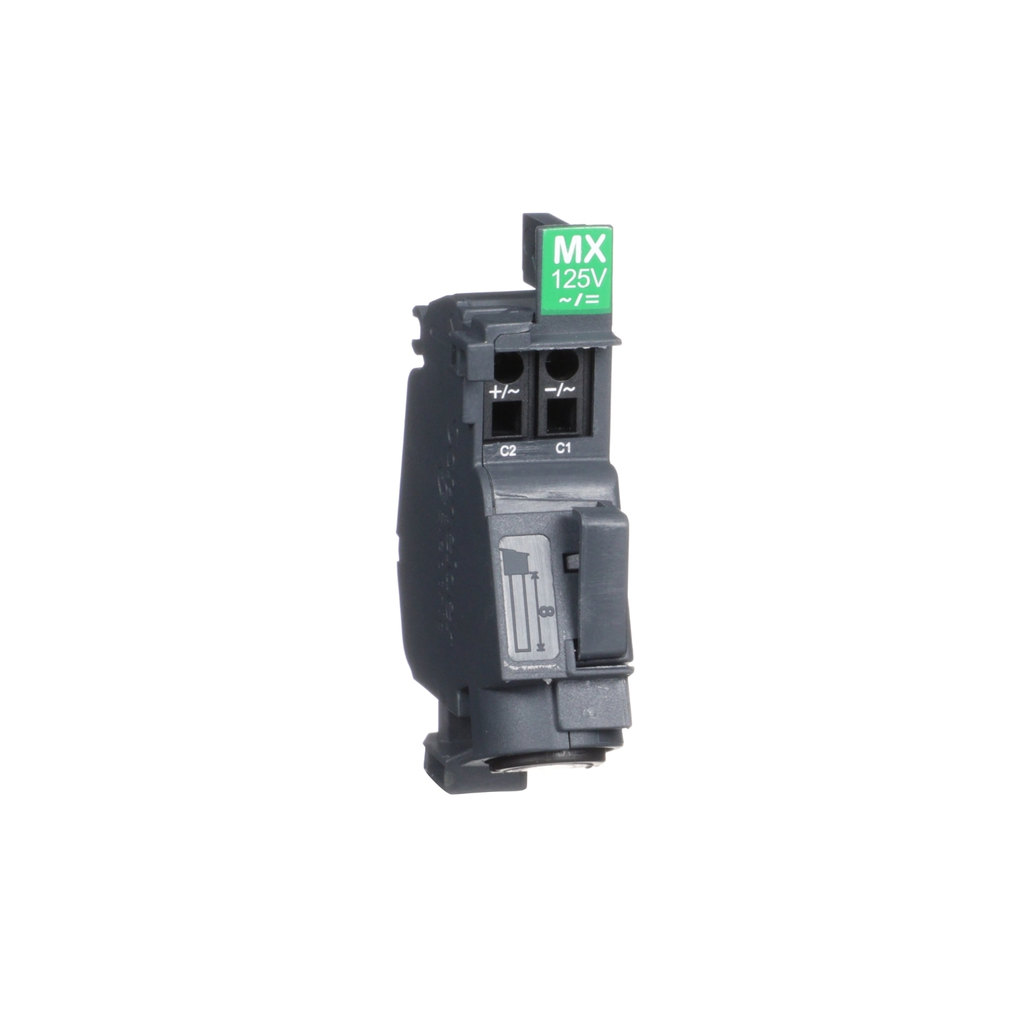

Square D LV426843 Standard Shunt Trip Release

Manufacturer: Square-D / Schneider | Catalog # LV426843 | Cooper Electric Part # 1186082
$620.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Technical Information

Actuator
N/A
Applications
SHUNT TRIP (MX)
Enclosure
N/A
Frame
N/A
Mounting Type
Clip-On
Operating Temperature
N/A
Reset Type
N/A
Strip Length
0.31 in
TC Connection
N/A
Trip Range
N/A
Trip Type
N/A
Type
ACCESSORY
Voltage
125 VAC//VDC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
064854130689
GTiN
03606485413068
Product UPC
60648541306

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
