APP CPP2023 CPP PLUG 20A 2W-3P .536

Manufacturer: Appleton Electric | Catalog # CPP2023 | Cooper Electric Part # 118531
$309.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

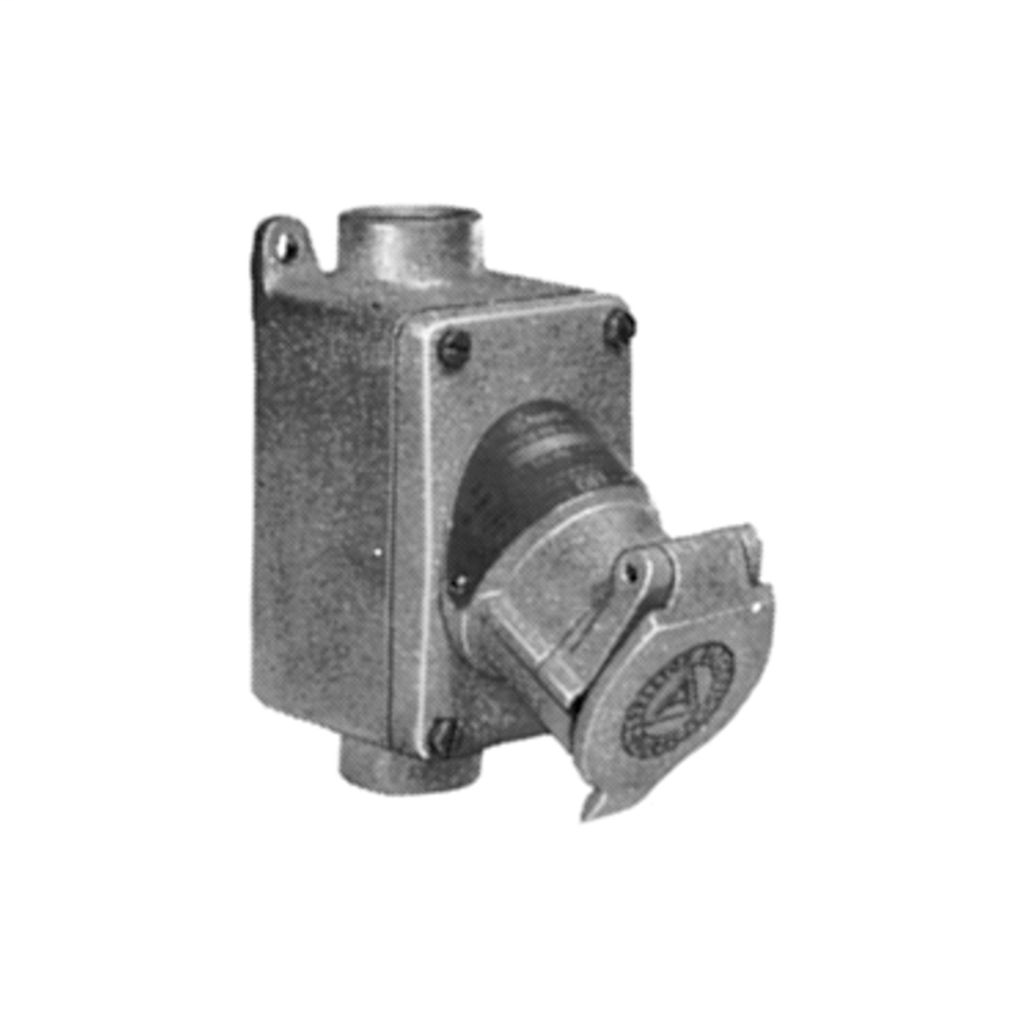

CPS Factory Sealed 20 Amp Pin and Sleeve Receptacles feature delayed action construction. They provide explosionproof protection for stationary or portable equipment in hazardous, damp or corrosive locations. The CPS series is certified for use in Class I, Division 1 and 2 Groups B, C, D locations.

Technical Information

Amperage
20 Amp
Applications
For CPS Receptacles
Horsepower
1 hp
Material
Aluminum
Number of Poles
3 Pole
Number of Wires
2 Wire
TC Connection
Pressure Wire Terminal
Type
CPP Series Plug
Voltage
125 Volt

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381673365
GTiN
00781381673365
Product UPC
78138167336
Features
  • Factory sealed: external seals not required
  • CPS Series plug and receptacles are supplied with pressure terminal connectors
  • Delayed action construction. Insert plug partially rotate slide on front of receptacle and insert plug fully
  • Energizes receptacle terminals deeply recessed to prevent accidental touching
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Plug mechanical cable clamps prevent strain on cables; they meet or exceed UL strain relief pull-out requirements
  • Captive stainless steel hex head slotted screws
