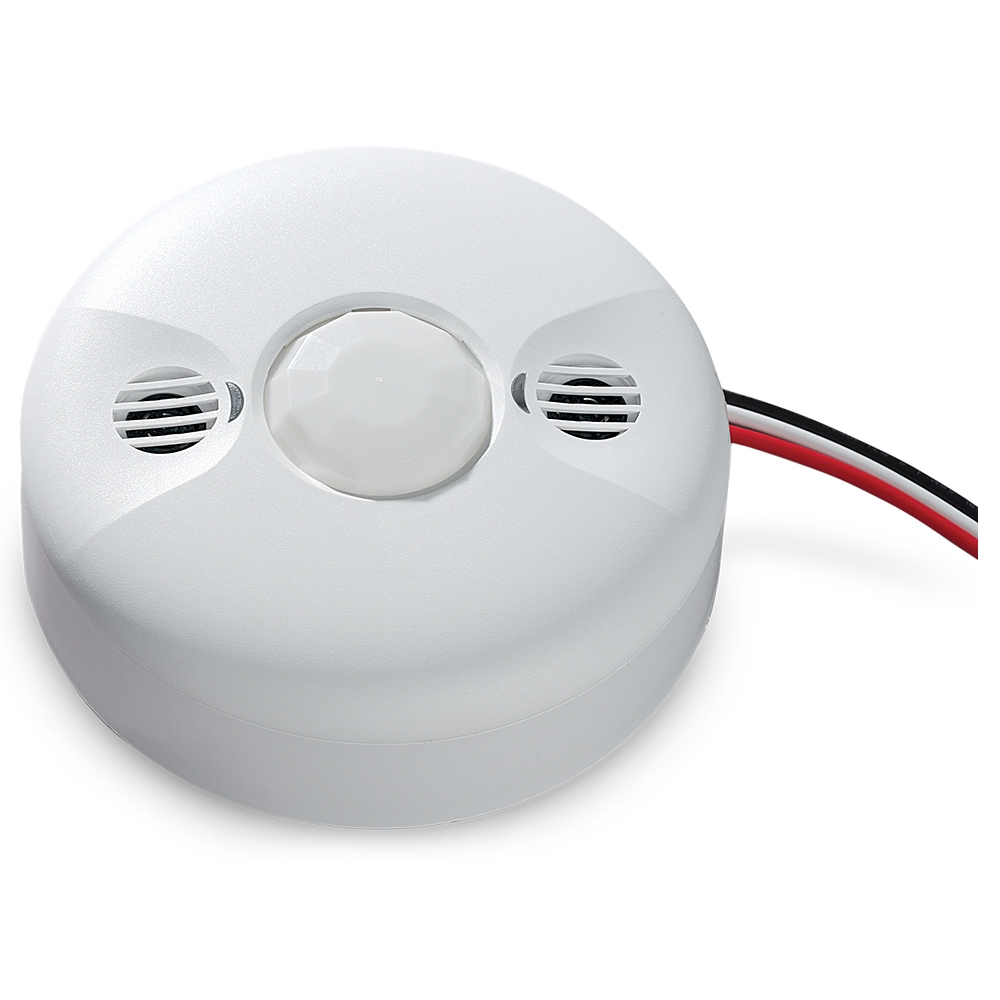

Product image for INT-MAT IOS-CMP-DT-U Commercial Gra
Email

INT-MAT IOS-CMP-DT-U Commercial Gra

Manufacturer: Intermatic, Inc | Catalog # IOS-CMP-DT-U | Cooper Electric Part # 1185030
$239.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The IOS-CMP-DT-U Dual Technology Line Voltage Occupancy Sensors control loads based on occupancy and ambient light levels. It combines passive infrared (PIR) and ultrasonic technologies to help avoid false triggering while increasing presence detection. Selectable modes allow the sensor to turn load ON and hold it ON as long as either or both technologies detect occupancy. If no movement is detected for a user-specified time of 5 seconds to 30 minutes, the load is turned OFF. The occupancy sensor provides a 360. coverage pattern, up to 1600 ft2 (150m2) for PIR and 1000 ft2 (93m2) for Ultrasonic sensor.

Technical Information

Applications
Indoor Sensing Control
Indicator
zero-crossing technology
Input Voltage
120/277 V
Material
Plastic
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Mounting Configuration
Ceiling
Mounting Type
Ceiling
Operating Temperature
32 - 122 Deg F
Sensing Range
360, 1600 ft2 PIR, 1000 ft2 Ultrasonic
Temperature Rating
55.0 degrees C
Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Voltage
277 Volt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275148383
Color
White
GTiN
00078275148383
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827514838
Used With
Restrooms
Weight
0.5 lb

Dimensions

Height
1-3/8 Inch
Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Ultrasonic and PIR sensing improves presence detection while avoiding false triggers, even in areas with partitions and/or small movements
  • Zero-crossing technology for long life and performance
  • Coverage: 360°, 1600 ft2 PIR, 1000 ft2 Ultrasonic mounted on 8 to 11 ft ceiling
  • Adjustable ambient light sensor override
  • Requires neutral connection
  • Incandescent/Fluorescent/CFL/LED compatible
  • NA
