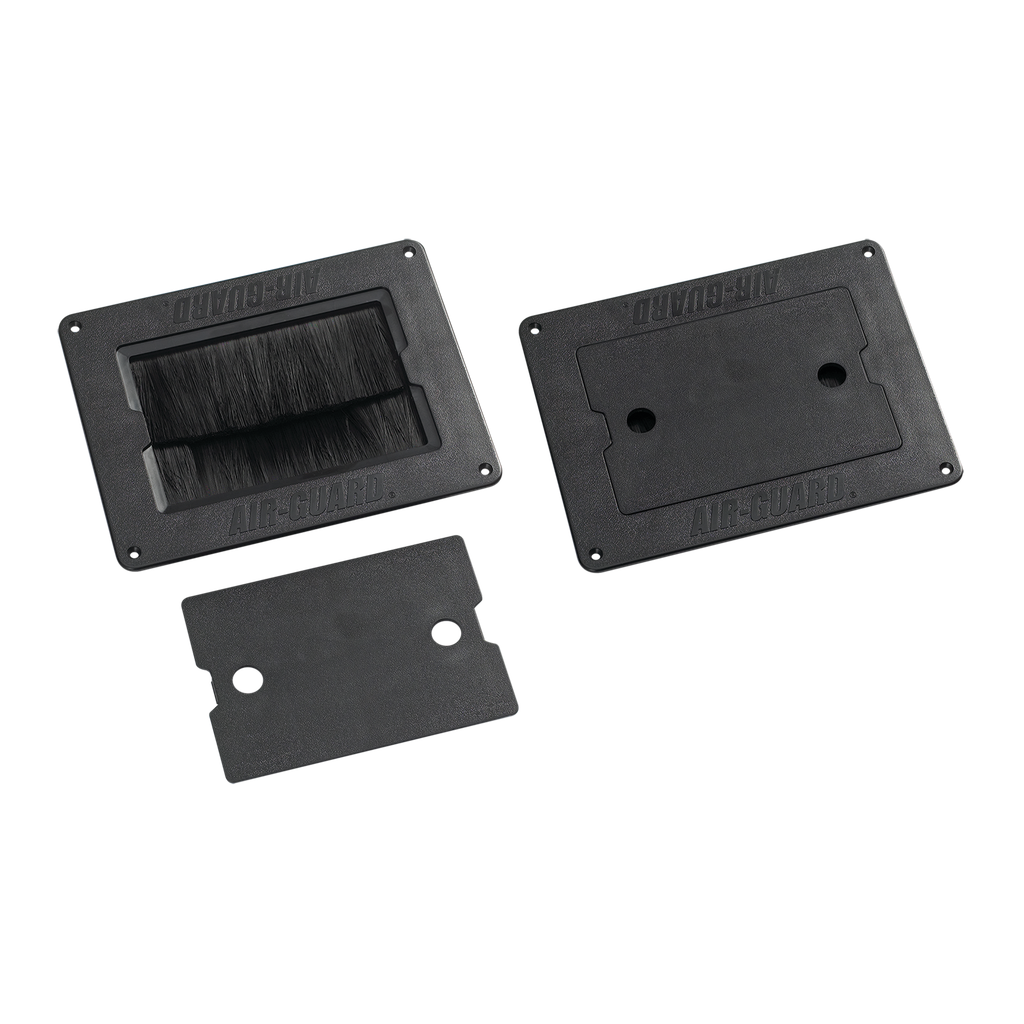

Hoffman DFB57F 1-Piece Flush-Mount Floor Brush Kit with Cover and Two-Stage Sealing, 5" x 7", Plastic

Manufacturer: Hoffman | Catalog # DFB57F | Cooper Electric Part # 1184973
$439.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Flush-Mount Floor Brush Kit with Cover is a heavy-duty two-stage sealing system. Brush and EPDM gasket provide the most effective air seal. Heavy-duty, integrated safety cover allows installation of the grommet during the construction phase and eliminates the risk of injury by stepping through the grommet opening. OSHA jobsite standards require open holes in floor panels to be covered. Easy-to-install system integrates with the access floor static dissipative system. NEC, UL and NEMA require safety covers and cable protection against sharp edges.

Technical Information

Applications
Networking, Storage and Data Center
Material
Plastic
Type
Cooling

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510187088
Color
Black
Finish
Matte
GTiN
00783510187088
Product UPC
78351018708
Weight
2.2 lb

Dimensions

Height
2-1/2 Inch
Length
12.1 Inch
Width
9.40 in
Features
  • Blocks up to 90 percent of cold air leakage around power and data cables
  • Flush mounts provide a low profile and grommet to raised-floor panel cutouts (required by NEC and NFPA)
  • Surface mount provides an easy-to-use retrofit to existing raised-floor cutouts
  • Adjustable flush mount provides an extra-large cable capacity and can be cut to size to fit the application
  • Overlapping bristles conform around data and power cables to minimize air leakage through raised floor and improve overall data center cooling efficiency
  • Reduction of cold air loss through raised-floor plenums helps to increase under floor static pressure
  • Cover provides protection during build out
  • Smooth, rounded low-profile flush mount edges protect cables from sharp raised-floor edges
  • Two-piece surface mount and adjustable floor brush kits have self-sticking adhesive to expedite installation
  • Raised-floor tiles need not be removed for installation
  • Brush kits can also be used on cabinets or other locations that need to provide cable egress and prevent air leakage or contaminants from entering
