SQD SSM2A36BDR Solid state modular

Manufacturer: Square-D / Schneider | Catalog # SSM2A36BDR | Cooper Electric Part # 1182768
$75.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

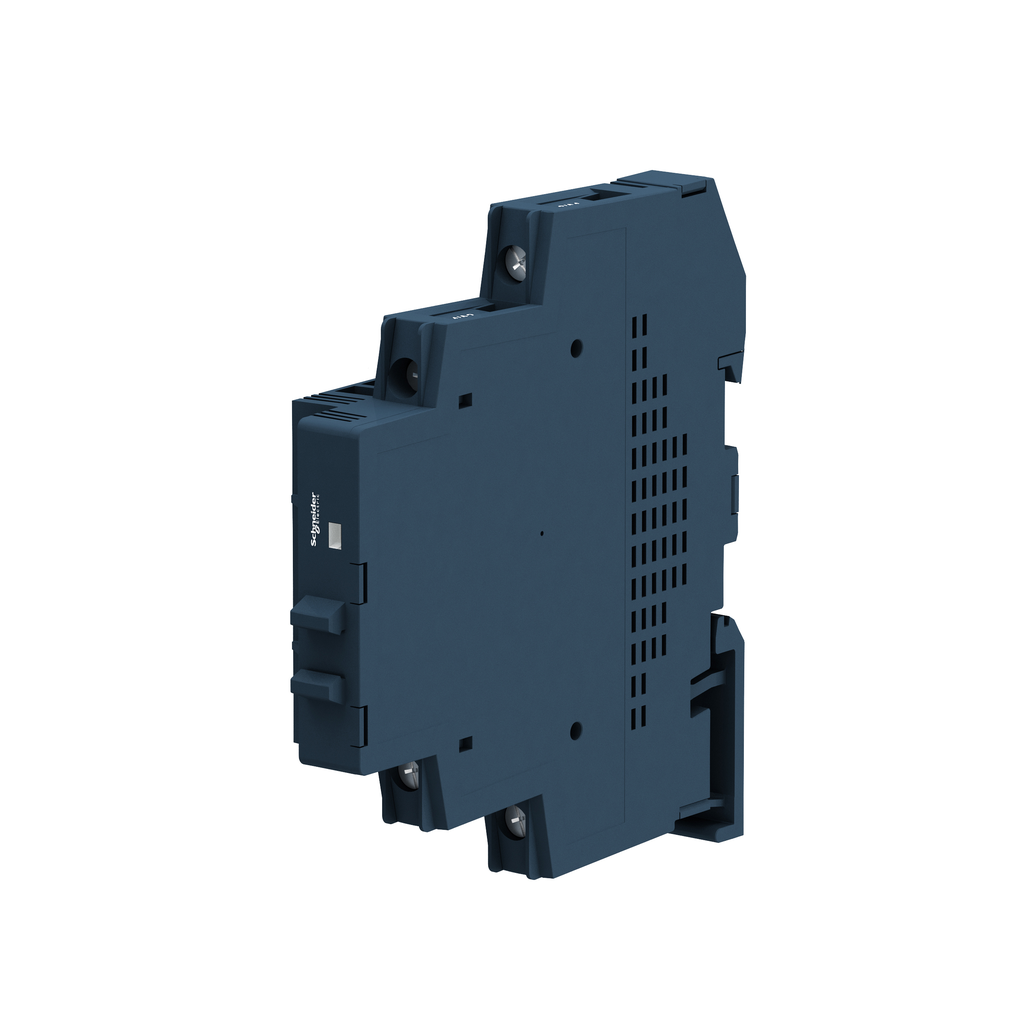

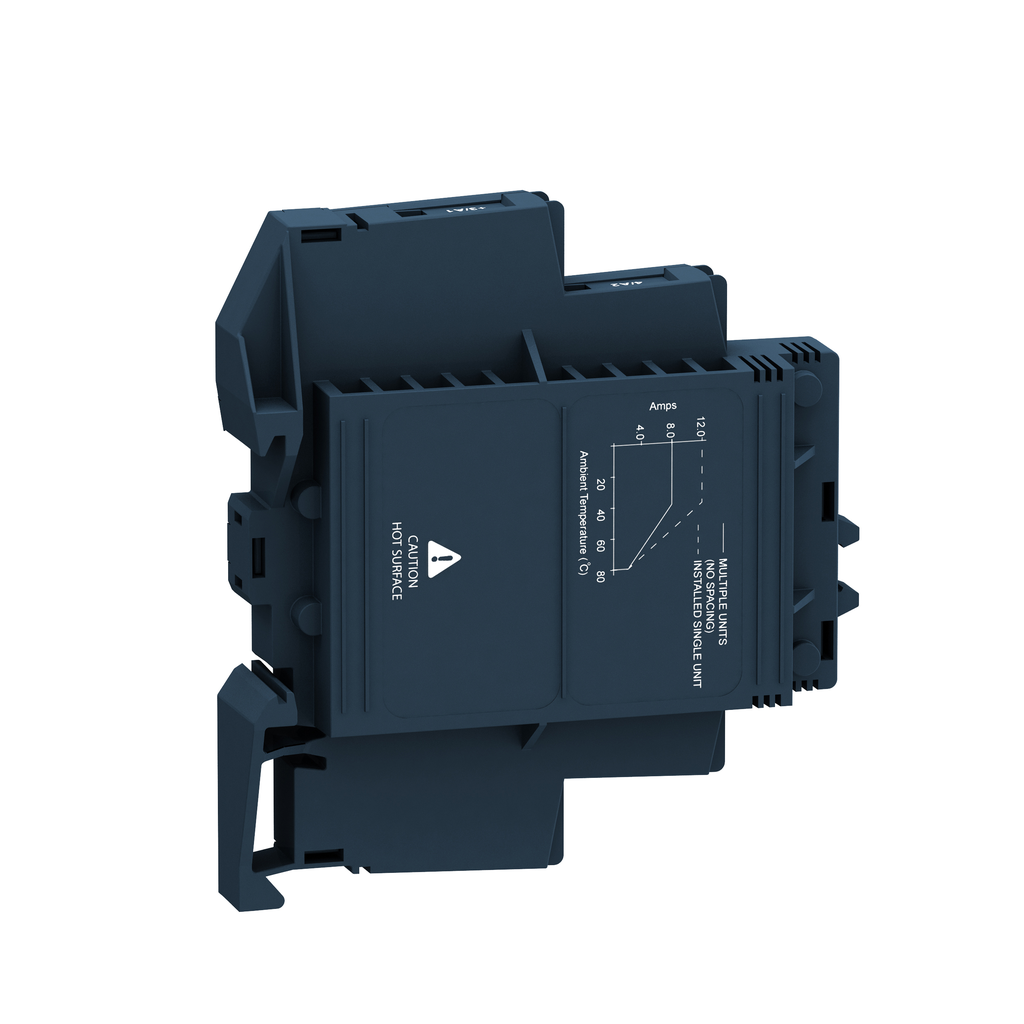

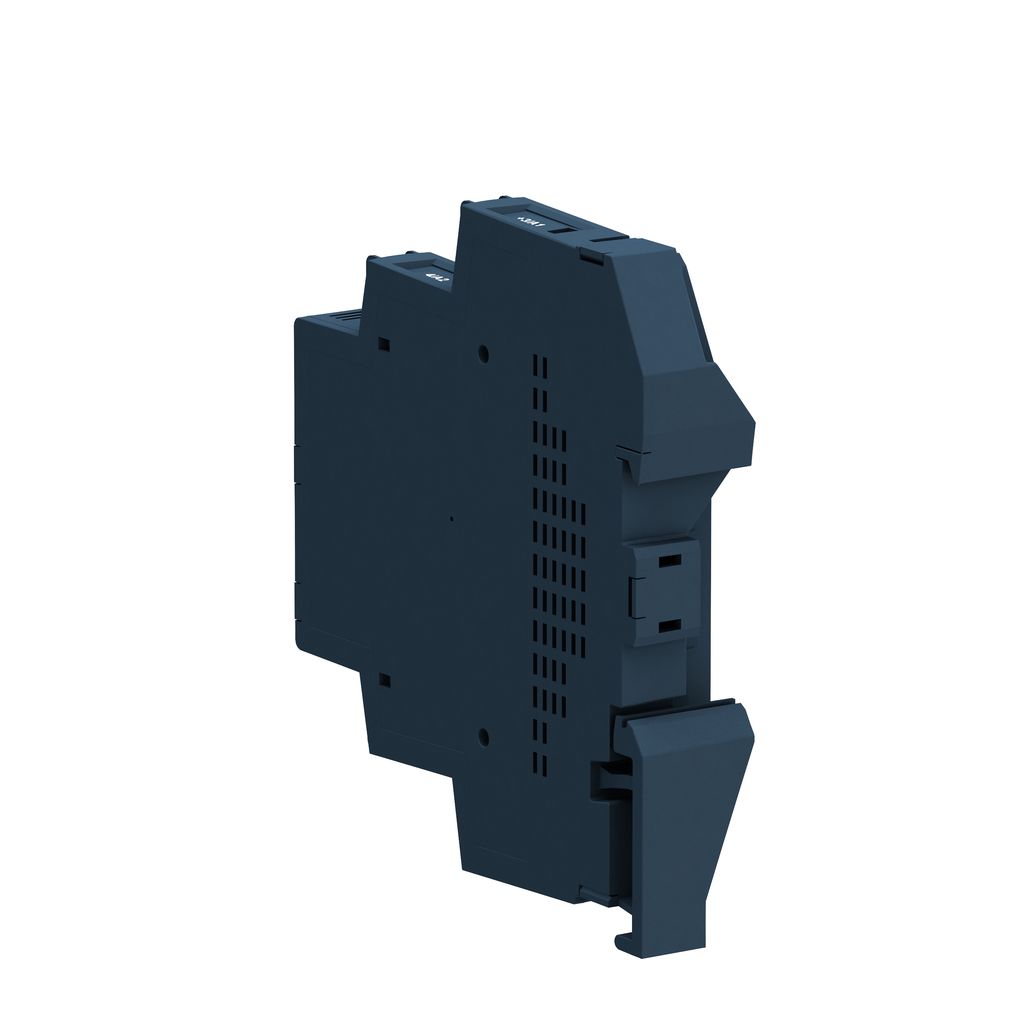

This Harmony SSM solid state modular DIN rail dual channel relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with random voltage switching, ideal for inductive loads. It also has a visual indicator showing the status of each of its inputs. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. It also has a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
6 Amp
Applications
0.16 HP 40 AC 240 V AC
Input Current
1416.87 mA
Line Rated Current
6 A
Maximum Load Current
0.156 A
Net Weight
0.09 kg
Number of Channels
2
Number of Phases
1 Phase
Operating Temperature
-30-80 degrees C
Output Voltage
48-600 V
Size
18 MM,84.4 MM,90.3 MM
Standard
IEC 60950-1,IEC 61000,IEC 62314
Storage Temperature
-30-100 degrees C
TC Connection
SCREW TERMINALS 1 X 0.3...1 X 1.5 MMA, AWG 22...AWG 16) INPUT-SCREW TERMINALS 1 X 0.3...1 X 2.5 MMA, AWG 22...AWG 14) OUTPUT
Type
SOLID STATE RELAY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSM

General Product Info

12-Digit UPC
785901977797
GTiN
03606480579790
Product UPC
78590197779
Weight
0.20 lb

Dimensions

Depth
84.4 mm
Height
90.3 mm
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Mexico
