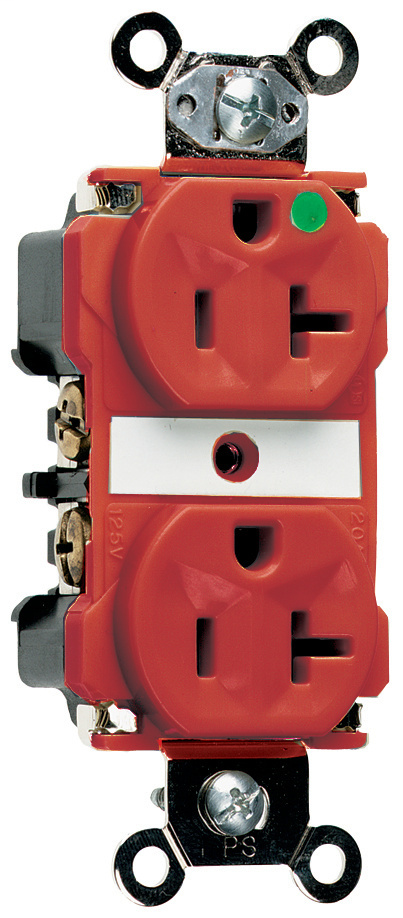

Product image for Pass & Seymour 8300-RED Extra Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 20Amp 125Volt, Red
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 8300-RED Extra Heavy-Duty Hospital Grade Duplex Receptacle, Back & Side Wire, 20Amp 125Volt, Red

Manufacturer: Pass & Seymour / Legrand | Catalog # 8300RED | Cooper Electric Part # 11823
$19.42/ea
ea
Log in or register to view your price, purchase history, and more!
Duplex Decora Single
15A 20A
125v 250v
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
64 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Nylon
Mounting Type
Wall, Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.625 L x .900 W x 3.281 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Extra Heavy Duty
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007830101
Color
Red
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability and UL94-5 VA
GTiN
00785007830101
Product UPC
78500783010
UNSPSC
39121406

Dimensions

Depth
0.866 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece nickel-plated brass mounting strap with integral ground.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Oversized #10 deep tri-drive head brass terminal and ground screws.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External nickel-plated screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
