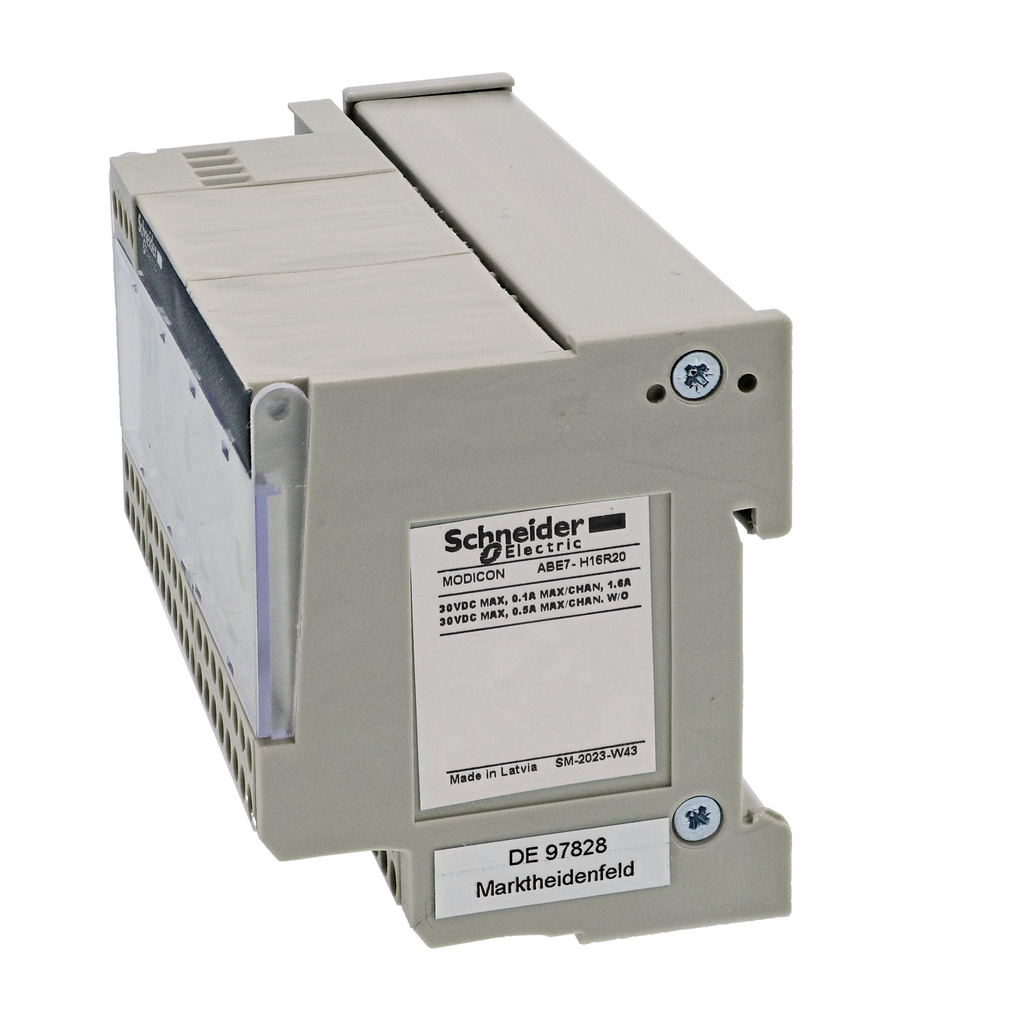

Product image for Square D ABE7H16R20 2-Module 16-Channel 2-Row Screw Terminal Discrete I/O Sub Base
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Square D ABE7H16R20 2-Module 16-Channel 2-Row Screw Terminal Discrete I/O Sub Base

Manufacturer: Square-D / Schneider | Catalog # ABE7H16R20 | Cooper Electric Part # 1182198
$185.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
passive connection sub-base ABE7 - 16 inputs or outputs

Technical Information

Capacity
16 CHANNELS
Connection Type
HE-10,SUB-D 15,SUB-D 9
Connector Type
SUB-D 15;HE-10;SUB-D 9
Enclosure
IP2X CONFORMING TO IEC 60529
Net Weight
0.3 kg
Number of Channels
16
Number of Pins
20
Operating Temperature
-5-60 degrees C IEC 61131-2
Output
1.8 A
Power Supply
DC
Storage Temperature
-40-80 degrees C IEC 61131-2
Temperature Rating
23 to 140 F
Type
Passive discrete I/O sub-base

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ADVANTYS

General Product Info

12-Digit UPC
389110544957
GTiN
03389110544954
Product UPC
78590154495
Weight
0.3 kg

Dimensions

Warranty Length
18 mth
Width
125 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,DNV,EAC,GL,UL
Country of Origin
USA
